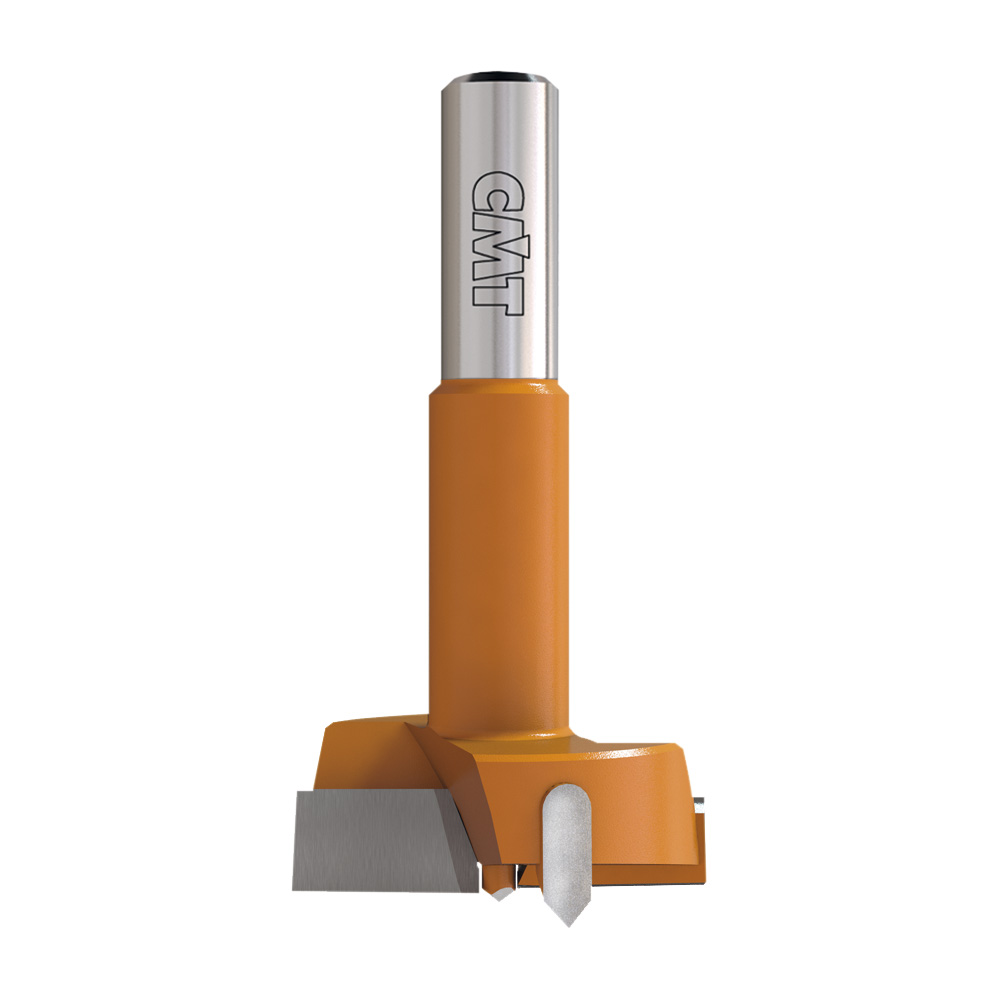

Hinge Boring Bits, S=10mm - L=57,5mm
369 HW
TECHNICAL DETAILS:
• Super-strength steel.
• Cutter portion coated with orange or black P.T.F.E.
• HW head with precision balanced centre point.
• 2 HW precision ground cutting edges (Z2).
• 2 negatively ground spurs (V2).
• Parallel shank with driving flat and length adjusting screw.
Details
Ideal for hinges.
Use on boring machines equipped with adaptors or chucks.
Use for drilling accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.
Use on boring machines equipped with adaptors or chucks.
Use for drilling accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.

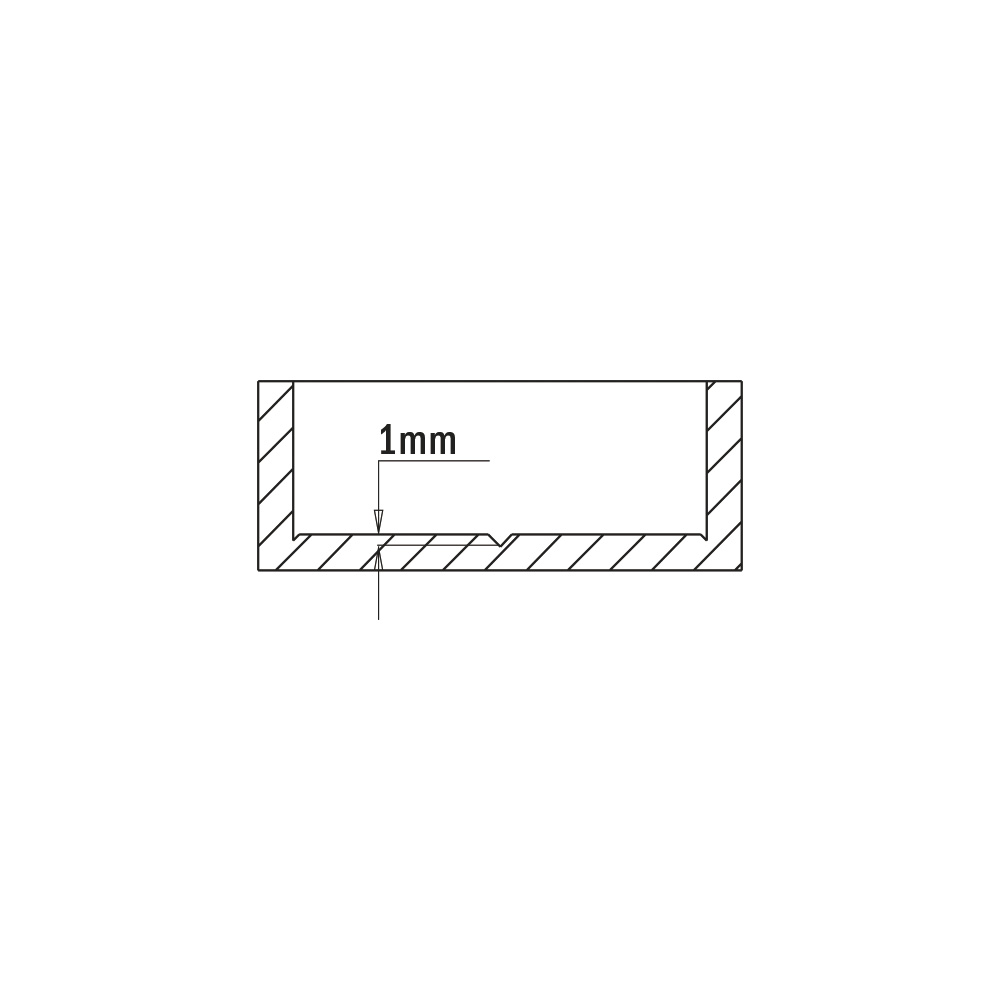

New construction with 1mm centre point.
Variations
Filter

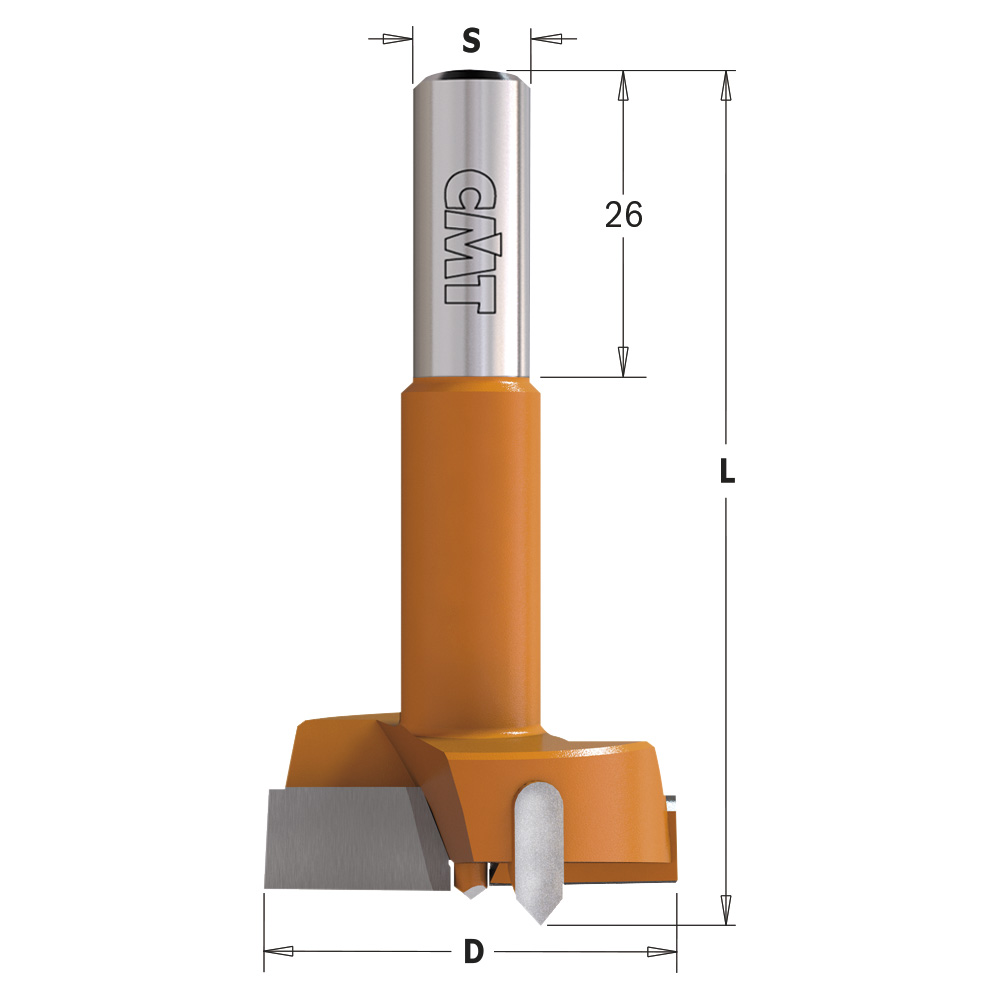

| Item Code | D | L | S | RH-LH |
|
|
|---|---|---|---|---|---|---|
|
369.140.11
|
14mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.140.12
|
14mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.150.11
|
15mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.150.12
|
15mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.160.11
|
16mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.160.12
|
16mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.180.11
|
18mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.180.12
|
18mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.200.11
|
20mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.200.12
|
20mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.220.11
|
22mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.220.12
|
22mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.250.11
|
25mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.250.12
|
25mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.260.11
|
26mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.260.12
|
26mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.300.11
|
30mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.300.12
|
30mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.350.11
|
35mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.350.12
|
35mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.400.11
|
40mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.400.12
|
40mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.450.11
|
45mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.450.12
|
45mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.500.11
|
50mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.500.12
|
50mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.550.11
|
55mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.550.12
|
55mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
|
369.600.11
|
60mm | 70mm | 10x26mm | RH | 990.003.00 | 990.088.00 |
|
369.600.12
|
60mm | 70mm | 10x26mm | LH | 990.003.00 | 990.088.00 |
