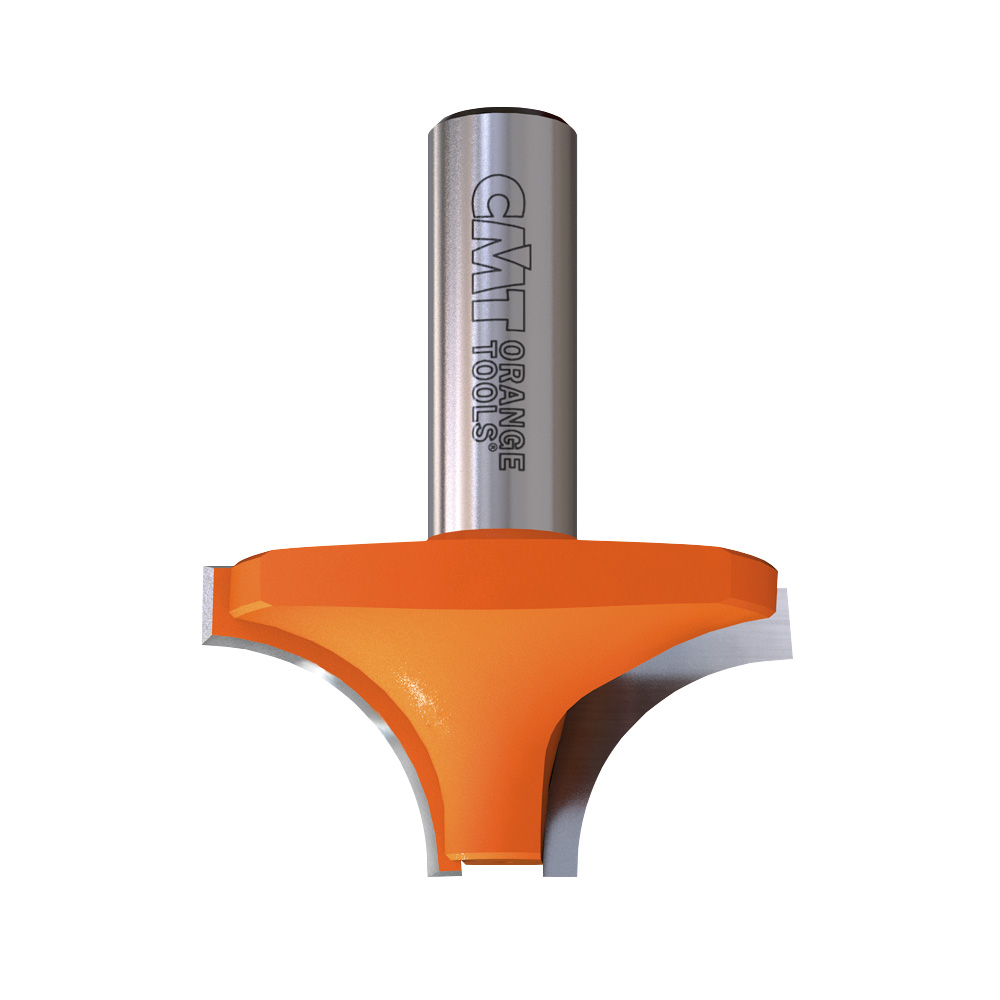

Viertelstabfräser
7/8/927
Mit diesen Viertelstabfräser lassen sich viele schöne Effekte erzielen.
Verwenden Sie diese Viertelstabfräser mit einer Kantenführung oder an einem Anschlag um verschiedene Kanten und InnenProfil herzustellen.
Verwenden Sie diese Viertelstabfräser mit einer Kantenführung oder an einem Anschlag um verschiedene Kanten und InnenProfil herzustellen.
Details
Safety tips:
pay particular attention to never rush the job when using a large profile bit.
Mill pieces with a fence mounted on the work table to ensure maximum protection.
pay particular attention to never rush the job when using a large profile bit.
Mill pieces with a fence mounted on the work table to ensure maximum protection.
Variationen
Filtert

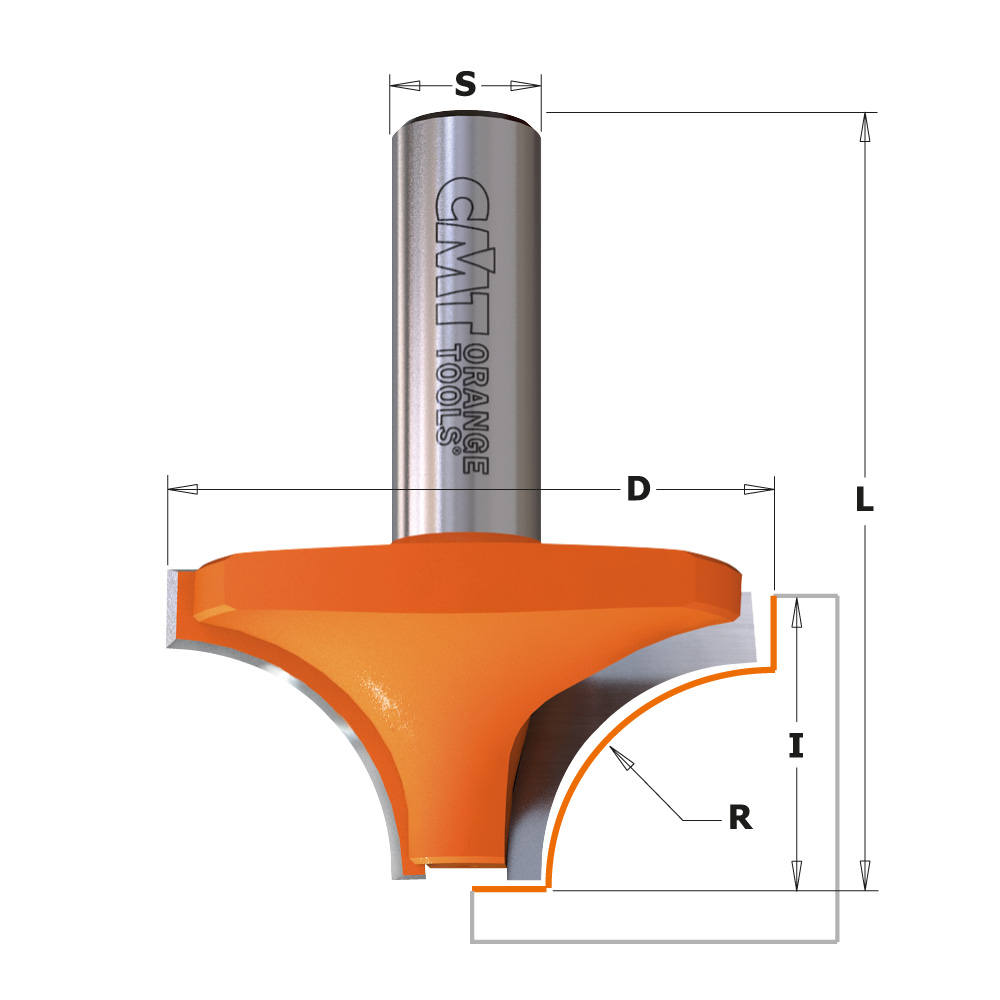

| Produktcode | R | D | I | L | S | Z | MAT | RH-LH |
|---|---|---|---|---|---|---|---|---|
|
727.040.11
|
4 | 19 | 12 | 43.8 | 6 | 2 | HW | RH |
|
927.040.11
|
4 | 19 | 12 | 43.8 | 8 | 2 | HW | RH |
|
827.050.11
|
5 | 20.64 | 12 | 43.8 | 6.35 | 2 | HW | RH |
|
727.050.11
|
5 | 21 | 12 | 43.8 | 6 | 2 | HW | RH |
|
927.050.11
|
5 | 21 | 12 | 43.8 | 8 | 2 | HW | RH |
|
927.060.11
|
6 | 23 | 12 | 43.8 | 8 | 2 | HW | RH |
|
727.060.11
|
6 | 23 | 12 | 43.8 | 6 | 2 | HW | RH |
|
827.060.11
|
6 | 23 | 12 | 43.8 | 6.35 | 2 | HW | RH |
|
827.560.11
|
6 | 23 | 12 | 50.1 | 12.7 | 2 | HW | RH |
|
727.080.11
|
8 | 28.58 | 12.7 | 44.5 | 6 | 2 | HW | RH |
|
927.080.11
|
8 | 28.58 | 12.7 | 44.5 | 8 | 2 | HW | RH |
|
927.095.11
|
9.52 | 31.7 | 15.8 | 47.6 | 8 | 2 | HW | RH |
|
927.595.11
|
9.52 | 31.7 | 15.8 | 54 | 12 | 2 | HW | RH |
|
727.095.11
|
9.53 | 31.7 | 15.8 | 47.6 | 6 | 2 | HW | RH |
|
827.095.11
|
9.53 | 31.75 | 15.8 | 47.6 | 6.35 | 2 | HW | RH |
|
827.595.11
|
9.5 | 31.75 | 15.8 | 54 | 12.7 | 2 | HW | RH |
|
827.627.11
|
12.7 | 38.1 | 19 | 57.1 | 12.7 | 2 | HW | RH |
|
827.127.11
|
12.7 | 38.1 | 19 | 50.8 | 6.35 | 2 | HW | RH |
|
927.627.11
|
12.7 | 38.1 | 19 | 57.1 | 12 | 2 | HW | RH |
|
827.660.11
|
15.9 | 44.45 | 22.2 | 60.3 | 12.7 | 2 | HW | RH |
|
927.660.11
|
16 | 44.5 | 22.2 | 60.3 | 12 | 2 | HW | RH |
|
927.690.11
|
19 | 50.8 | 25.4 | 63.5 | 12 | 2 | HW | RH |
|
827.690.11
|
19,1 | 50.8 | 25.4 | 63.5 | 12.7 | 2 | HW | RH |
|
827.722.11
|
22.2 | 57.15 | 28.5 | 66.6 | 12.7 | 2 | HW | RH |
|
927.722.11
|
22.2 | 57.15 | 28.5 | 66.6 | 12 | 2 | HW | RH |
|
927.754.11
|
25.4 | 63.5 | 33.3 | 71.4 | 12 | 2 | HW | RH |
|
827.754.11
|
25.4 | 63.5 | 33.3 | 71.4 | 12.7 | 2 | HW | RH |
