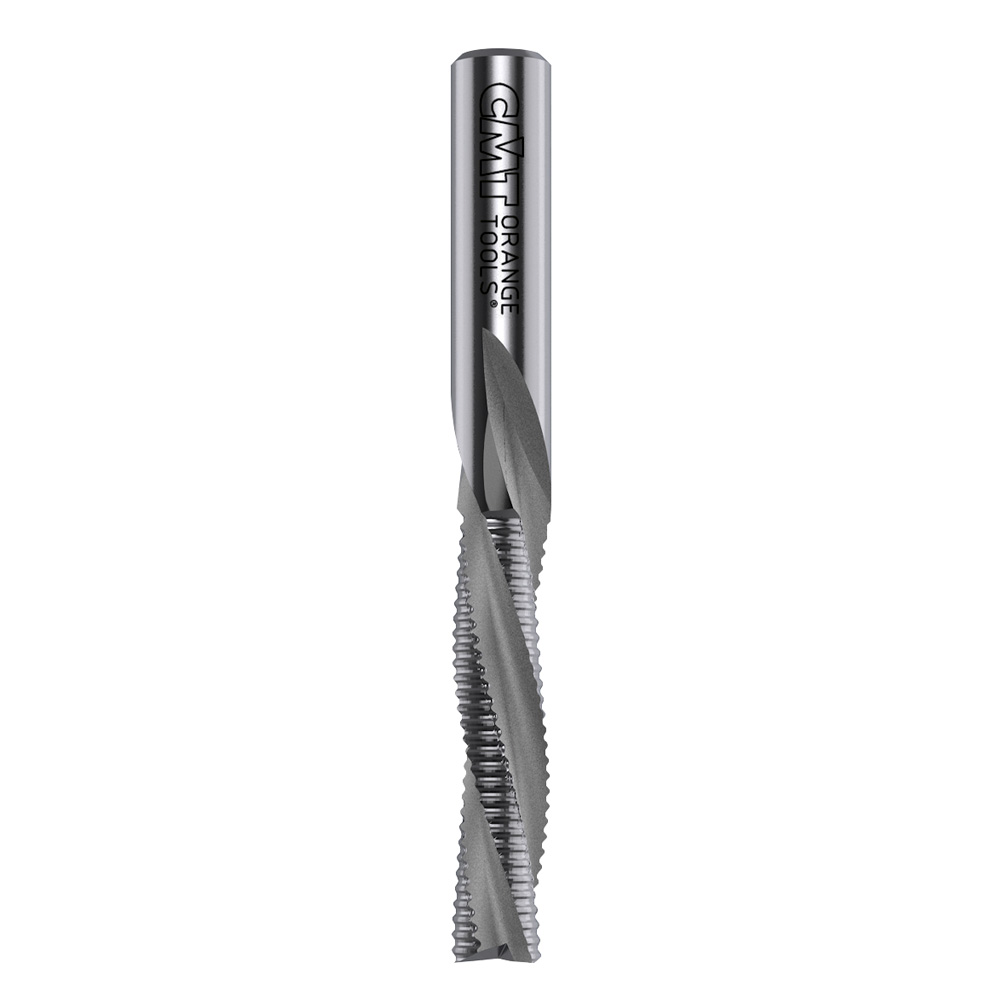

Solid carbide downcut spiral bits with chipbreaker
196
A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer.
Increased feed rate and improved cutting quality for enhanced productivity with CMT!
TECHNICAL FEATURES:
• Premium quality HWM.
• 3 spiral cutting edges (Z3R).
• Max tooth depth: 0.3mm.
• Provide excellent finish on the upper side of the workpiece.
• Downward chip ejection.

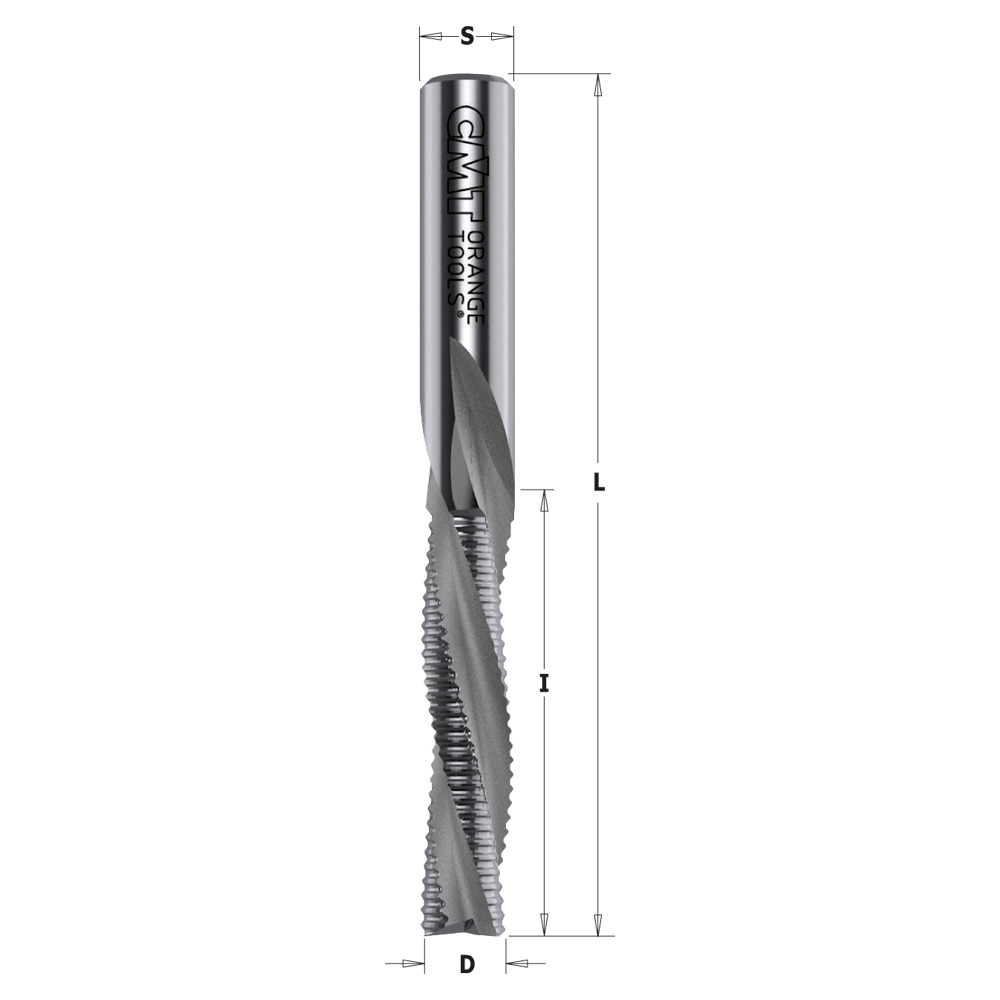

| Item Code | D | I | L | S | Z | MAT | RH-LH |
|---|---|---|---|---|---|---|---|
|
196.506.11
|
1/2' | 1-1/2' | 3-1/2'' | 1/2' | 3R | HWM | RH |
