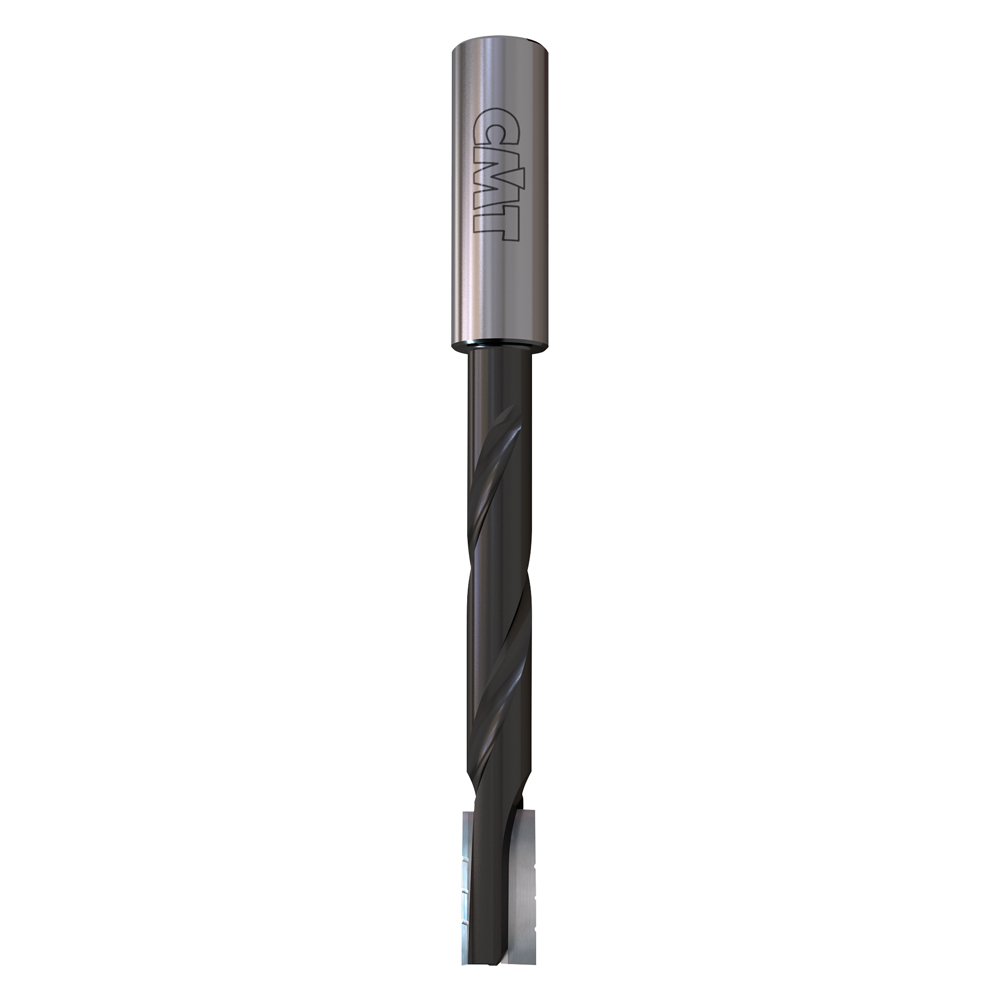

Carbide Spiral Slot Mortising bit with Chip-Breaker
161HW
TECHNICAL DETAILS:
- Super strength steel.
- Long lasting cutting performance.

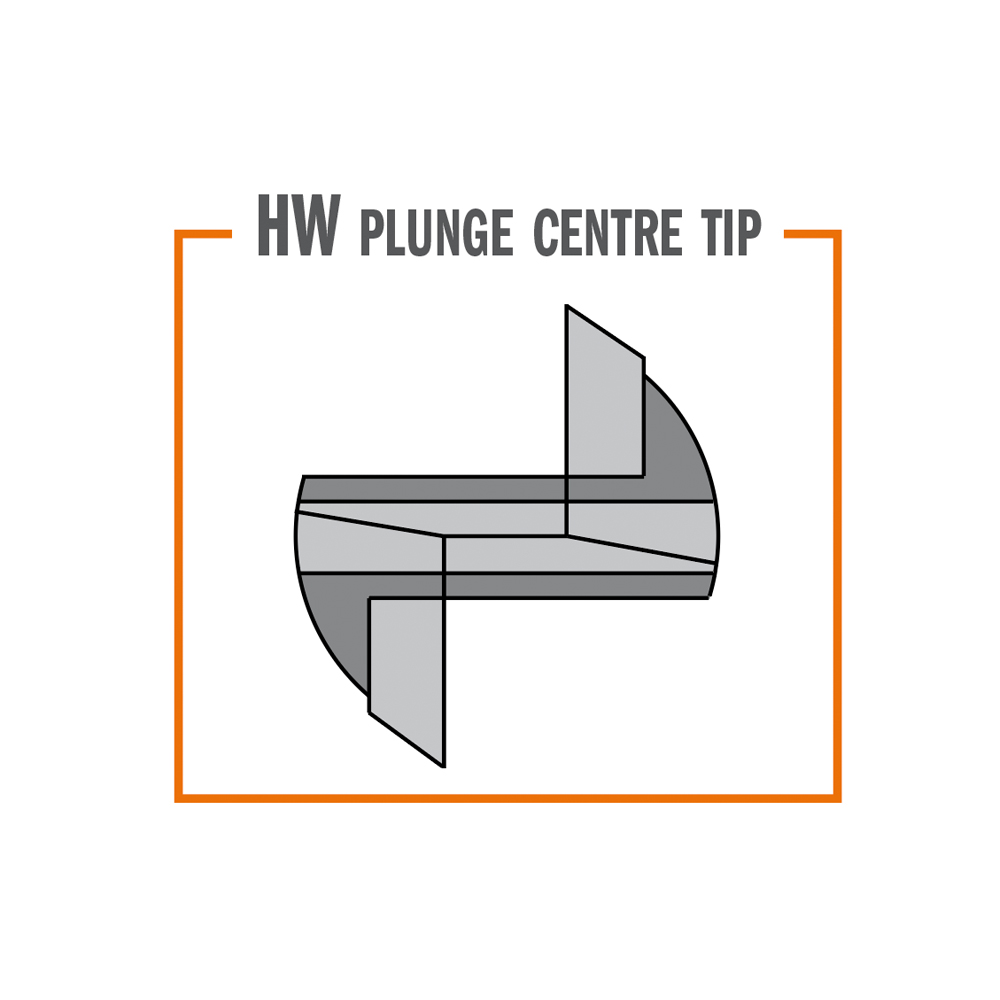

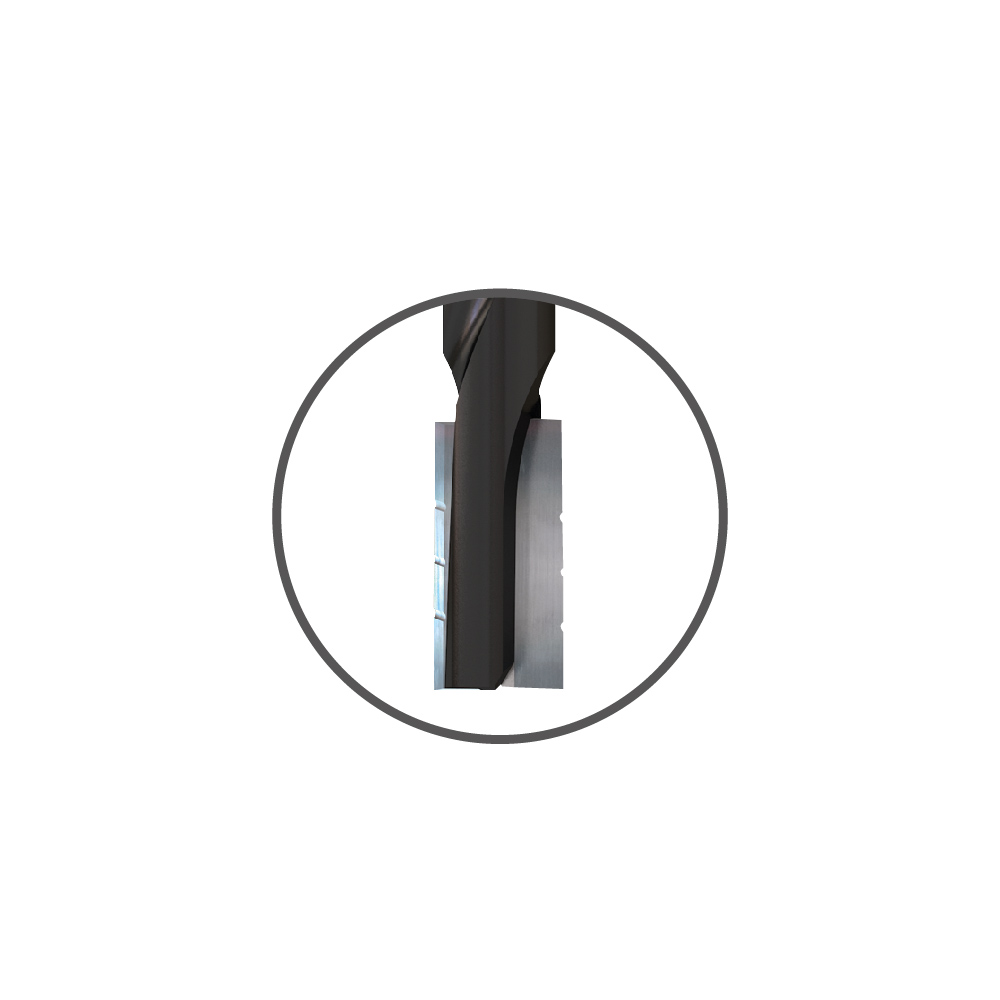

- 2 precision ground HW cutting edges with chipbreaker teeth and 1 HW plunge centre tip (Z2+1).
- RPM 3000~5000
Details

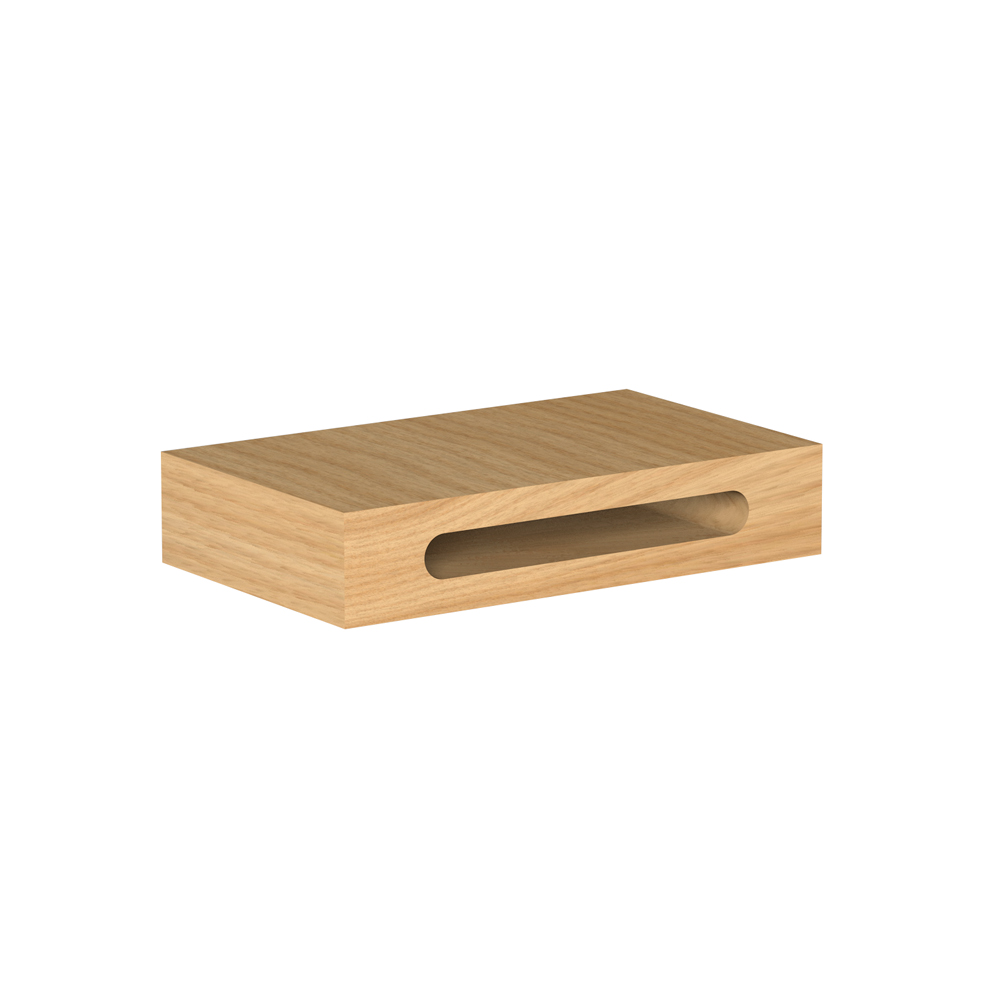

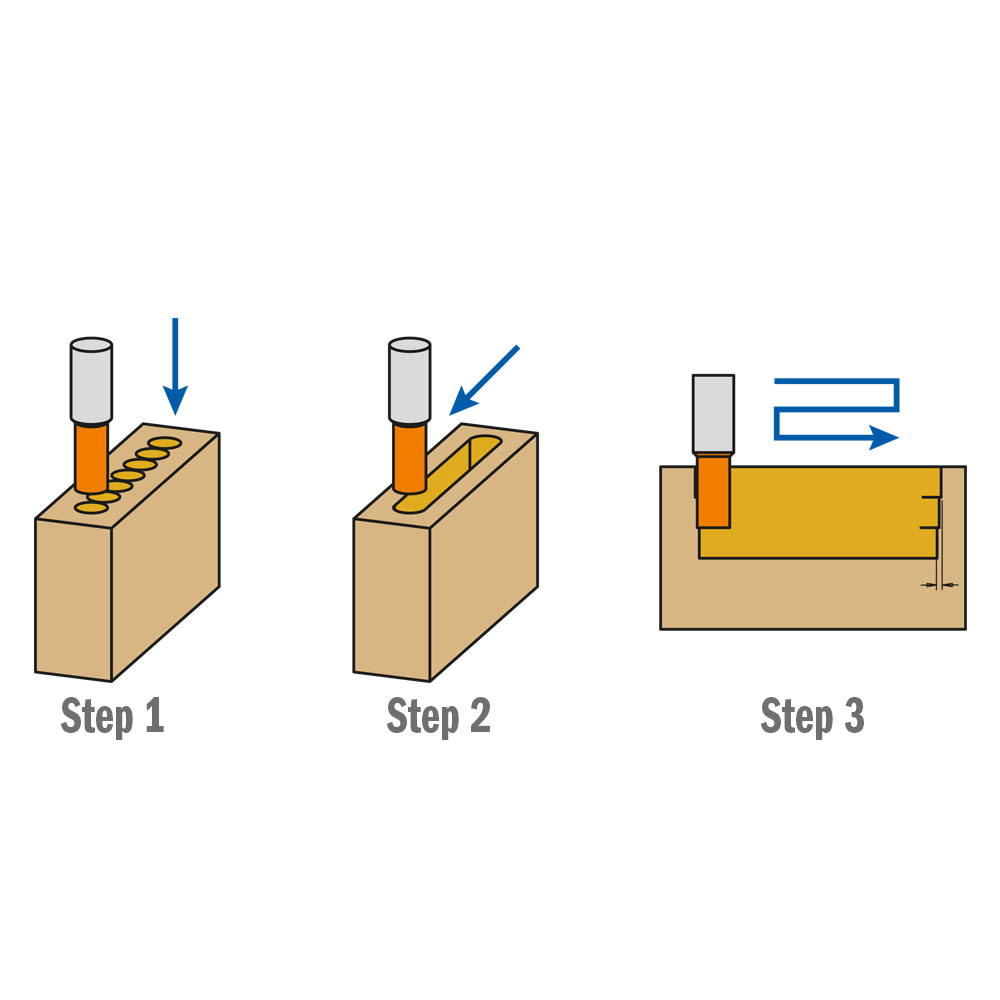

For cutting deep mortise slots in natural soft or medium density wood.
For use on machining centres equipped with chucks.
Variations
Filter

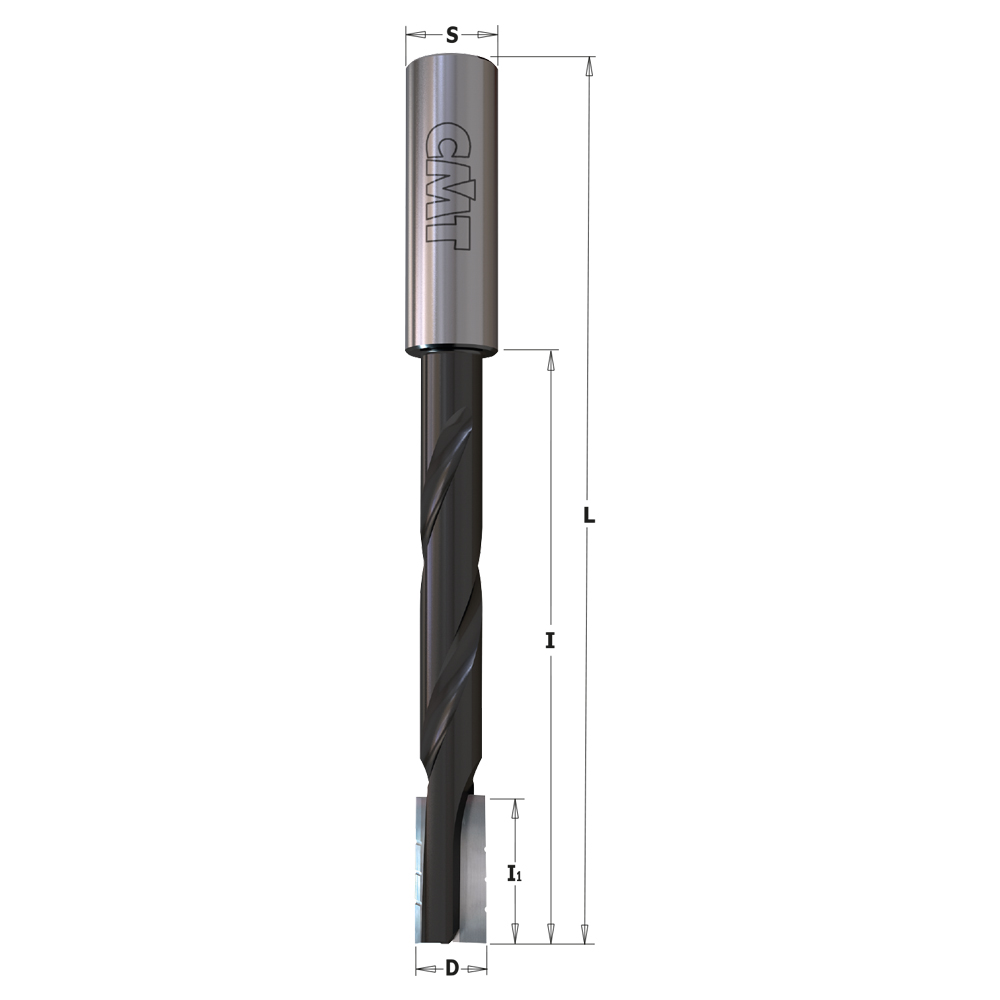

| Item Code | D | I | L | S | Z | MAT | RH-LH |
|---|---|---|---|---|---|---|---|
|
161.120.11
|
12 | 75 | 150 | 16 | 2R + 1 | HW | RH |
|
161.120.12
|
12 | 75 | 150 | 16 | 2R + 1 | HW | LH |
|
161.160.11
|
16 | 95 | 170 | 16 | 2R + 1 | HW | RH |
|
161.160.12
|
16 | 95 | 170 | 16 | 2R + 1 | HW | LH |
