V-Groove in DP
146.96
TECHNICAL FEATURES:
Made of special high-strength steel.
Axial cutting edges.
DP: H4 re-sharpenable (max 6 times).
APPLICATION: For contouring, sectioning, grooving on laminated/melamine panels, MDF, HDF, and wood derivatives.
To be mounted on chucks or adapters for machining centers, point-to-point machines, CNC pantographs.
Variations
Filter

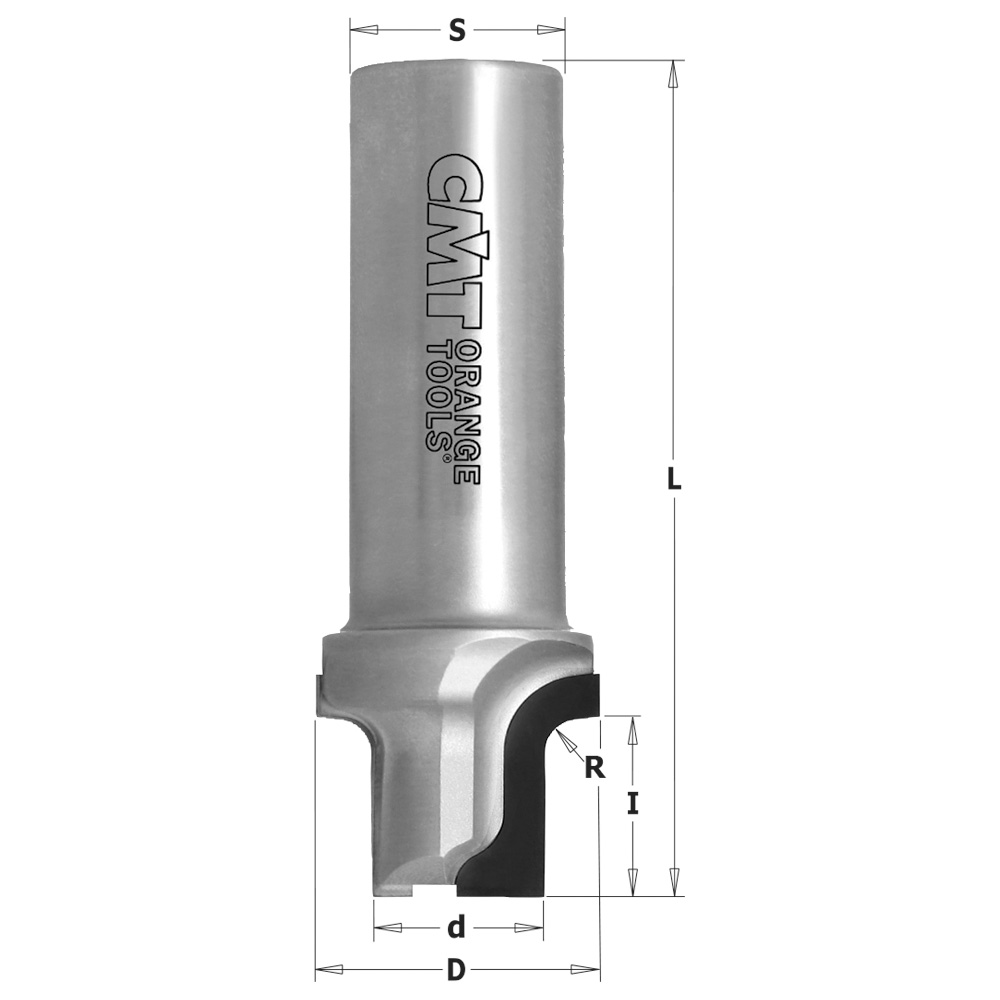

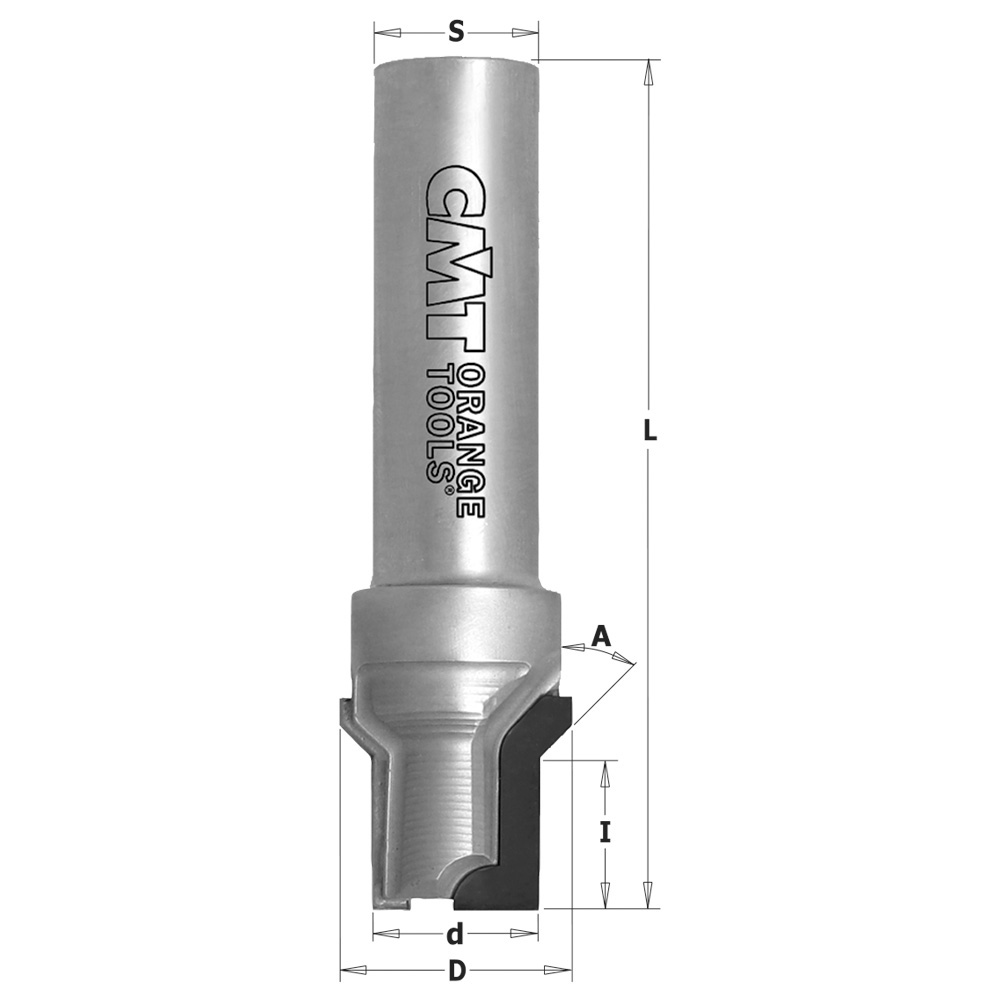

| Item Code | D | I | L | S | Z | RH-LH |
|---|---|---|---|---|---|---|
|
146.965.20
|
20 | 19.4 | 79 | 20 | 2+2 | RH |
|

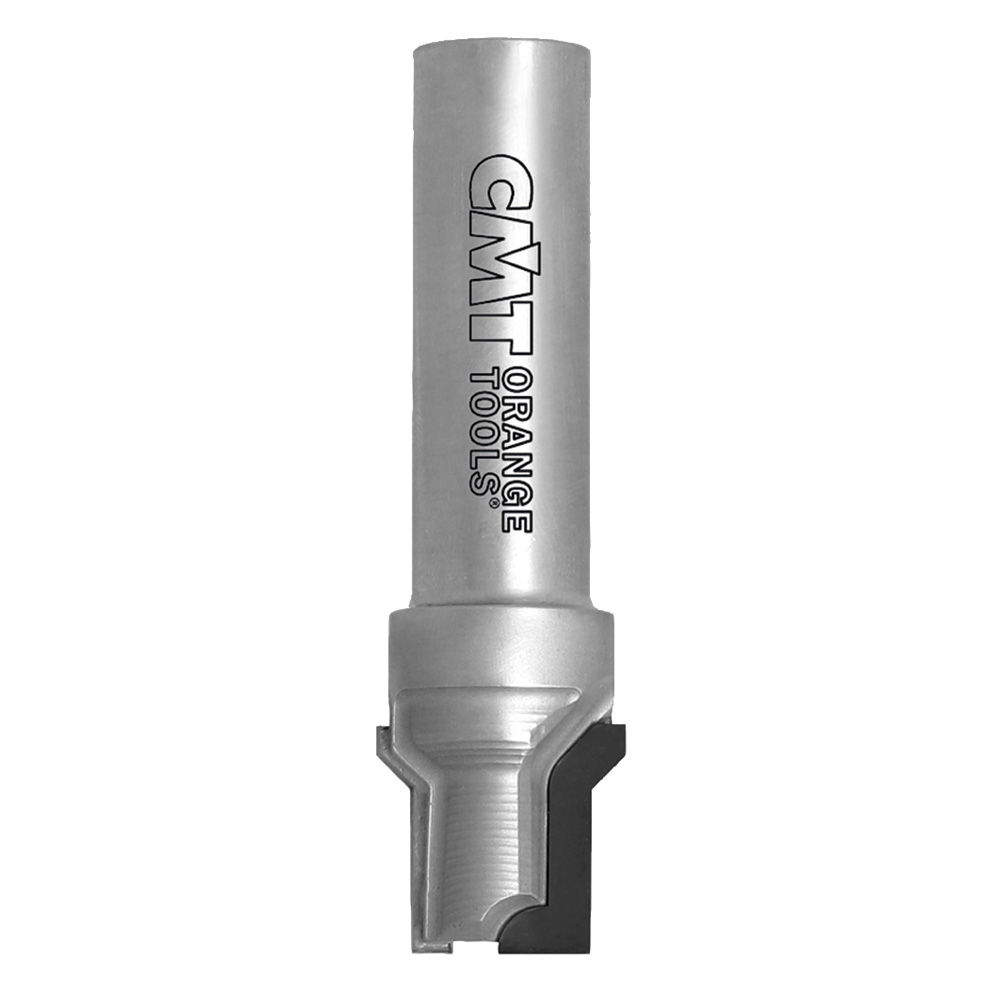

146.965.22
|
22 | 17.5 | 80 | 16 | 2 | RH |
|

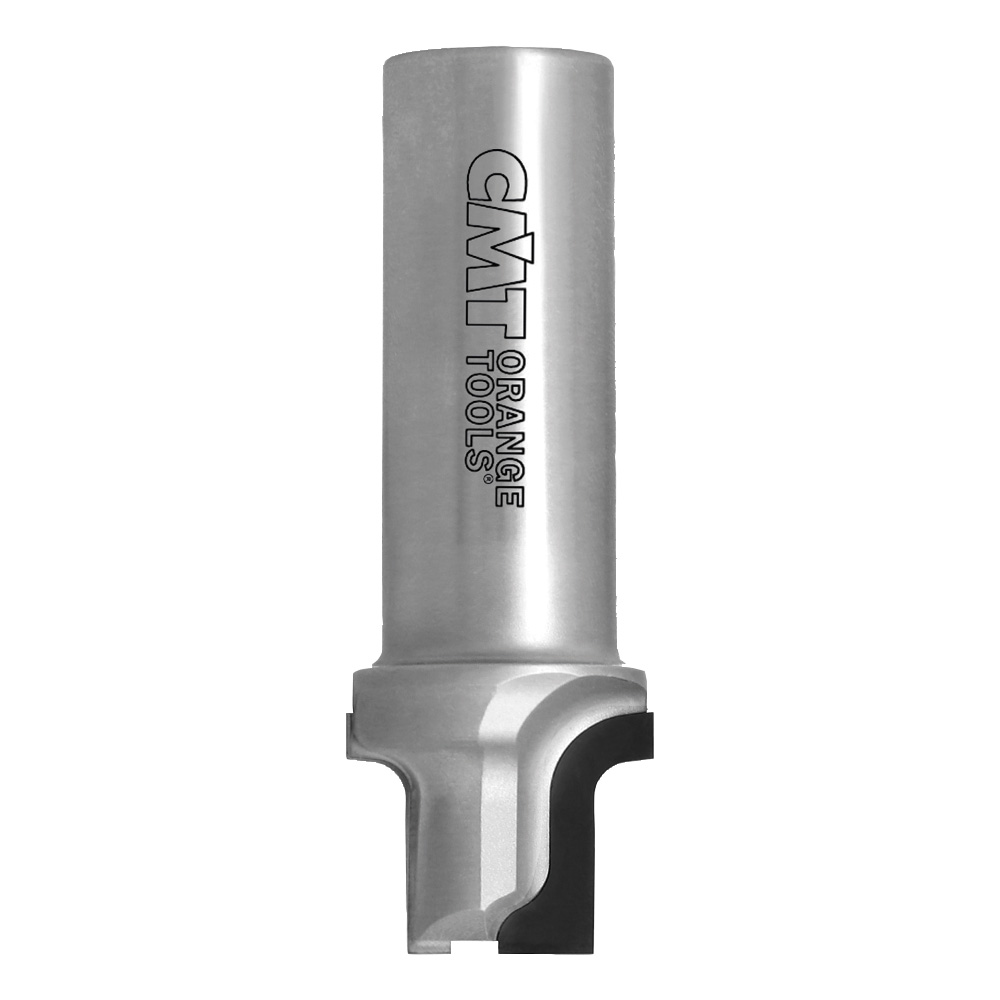

146.965.28
|
26 | 19.4 | 75 | 25 | 2+1 | RH |
