V-groove - folding - signmaking CNC router cutter
663.1
TECHNICAL DETAILS:
- Super-strength steel.
- 1 cutting edge (Z1).
- 2 cutting edges (Z2).
790.360.01 - Optional S790.360.03: 36x12x1,5mm HW-SMG replaceable knife (4 cutting edges 35°).
Details

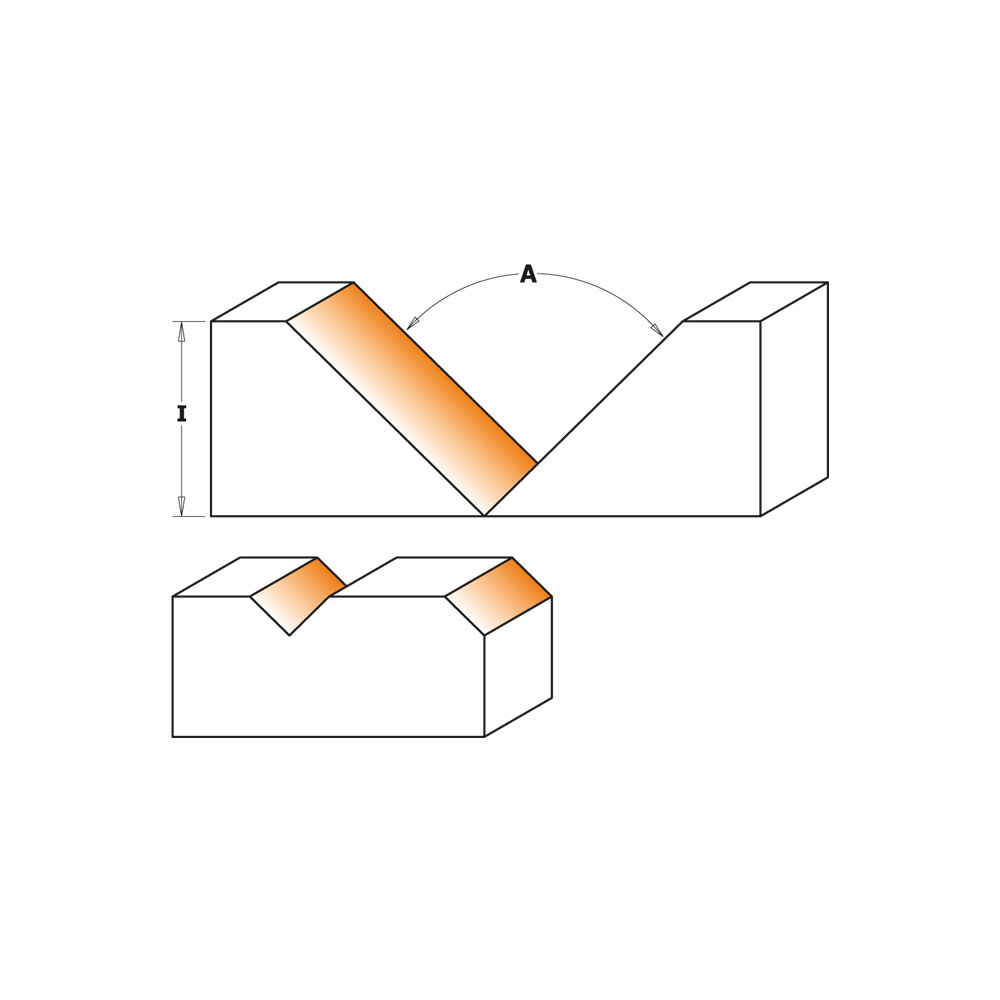

This innovative CNC router bit offers you an endless range of possibilities for V-Groove, miter folds, signmaking, lettering and chamfer edges.
The tool mounts a high grade HWM reversible knife ideal for general purpose, chipboard and plywood, but a higher quality is available for laminated and MDF material.
Variations
Filter

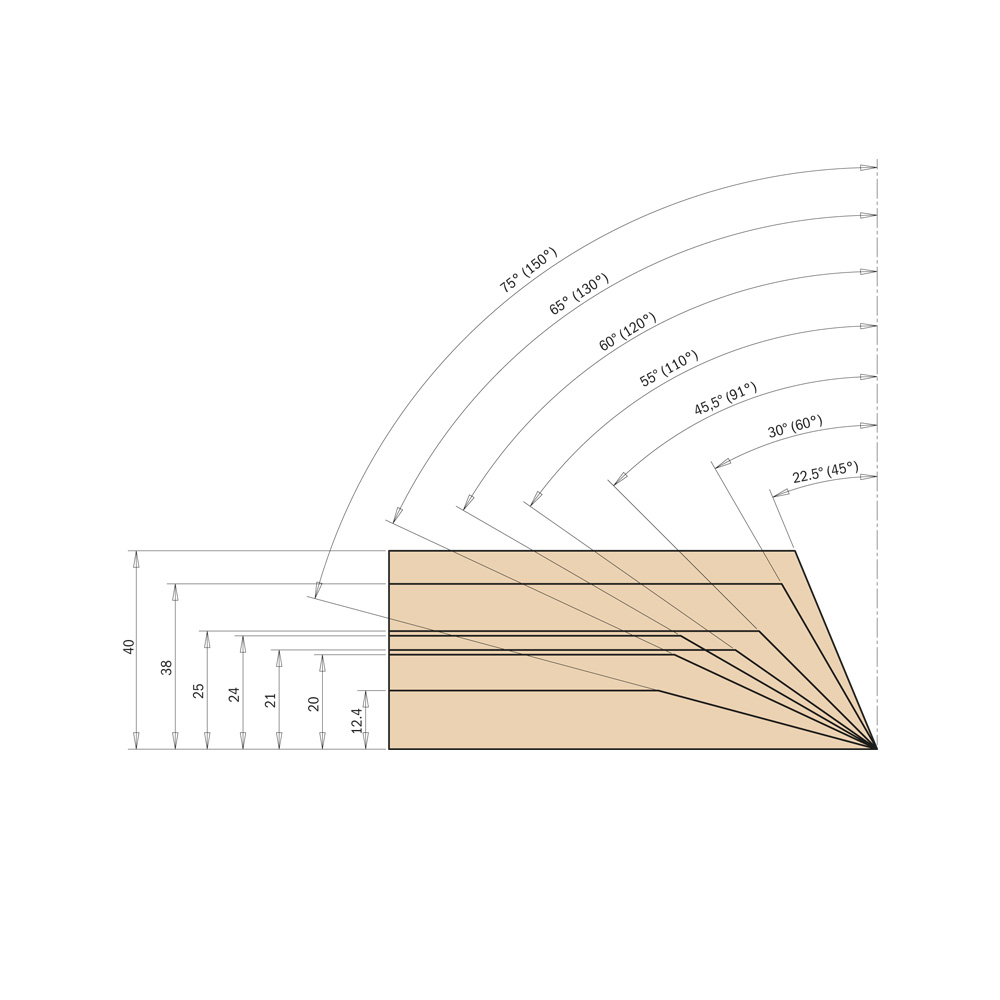

| Item Code | D | I | L | A | S | Z | RH-LH |
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

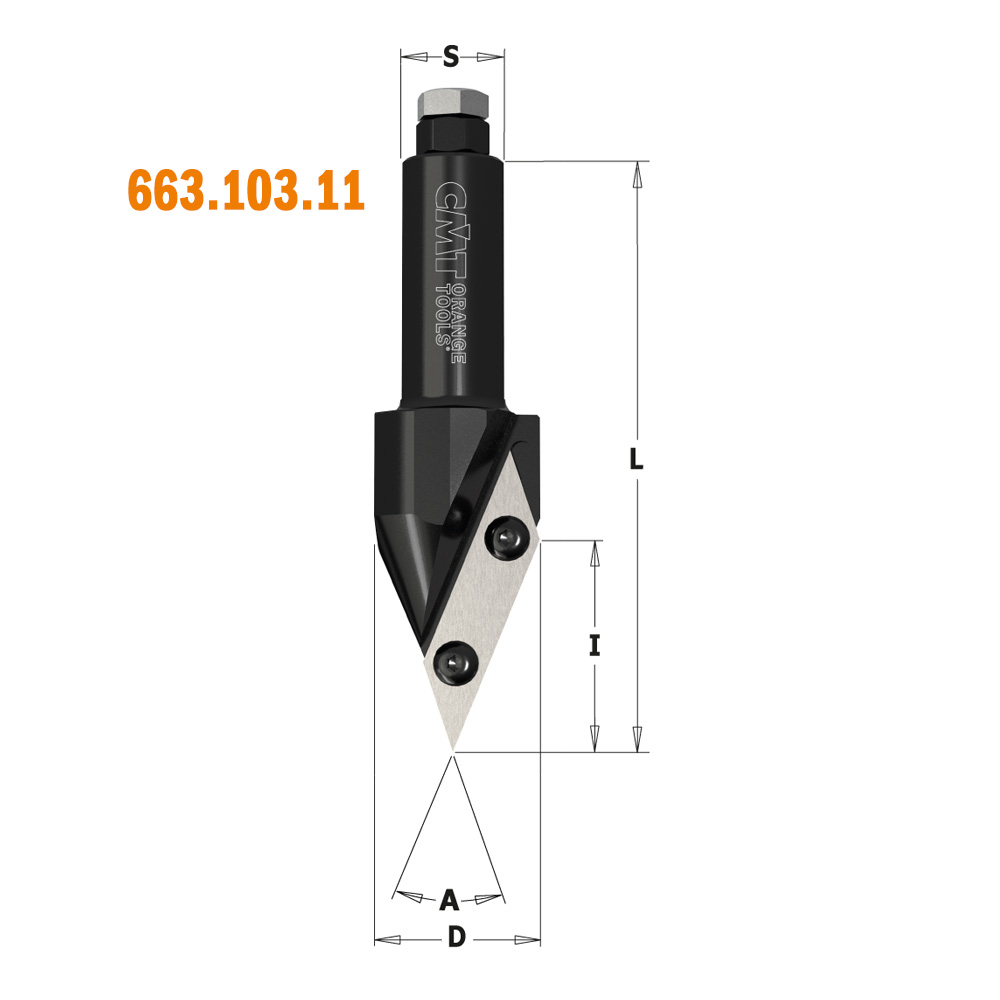

663.103.11
|
34 | 40 | 115 | 45° | 20 | 1 | RH | 790.580.01 | 991.061.00 | 990.020.00 | 990.073.00 | 990.036.00 | |||
|

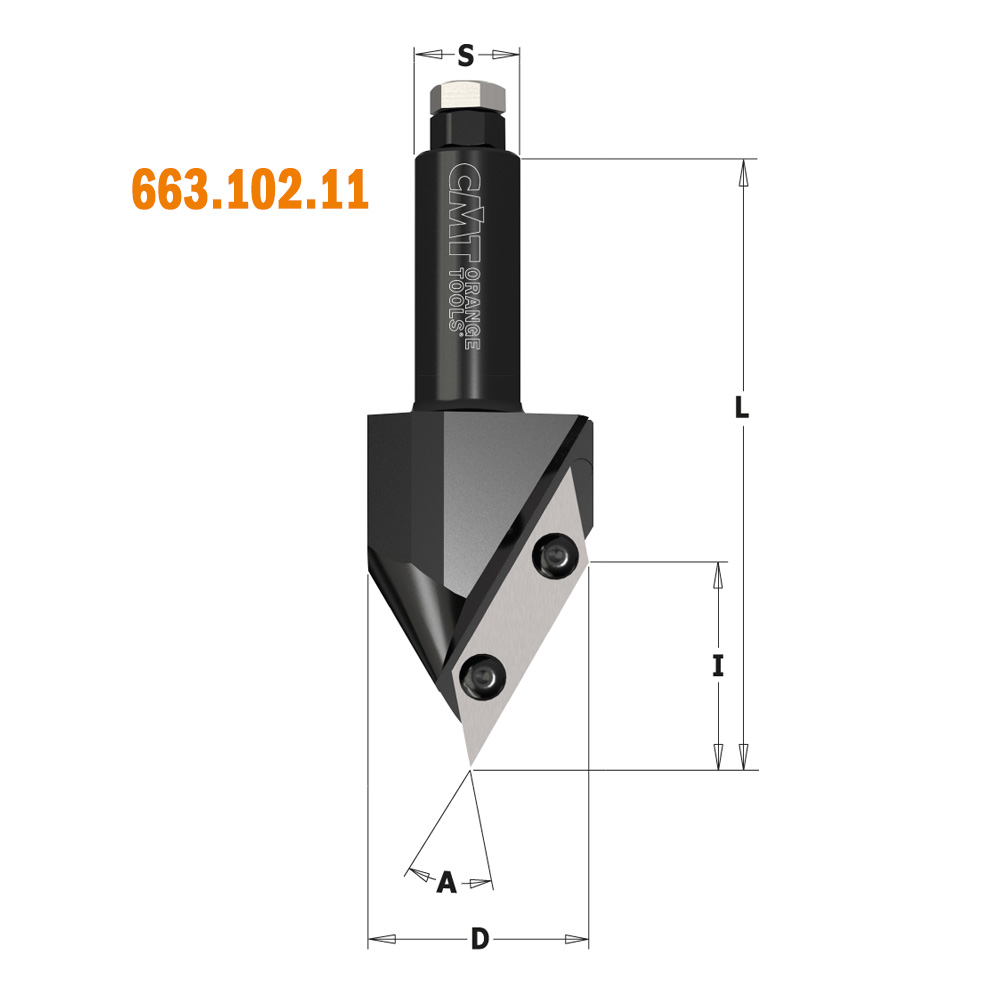

663.102.11
|
44 | 38 | 115 | 60° | 20 | 1 | RH | 790.580.01 | 991.061.00 | 990.020.00 | 990.073.00 | 990.036.00 | |||
|

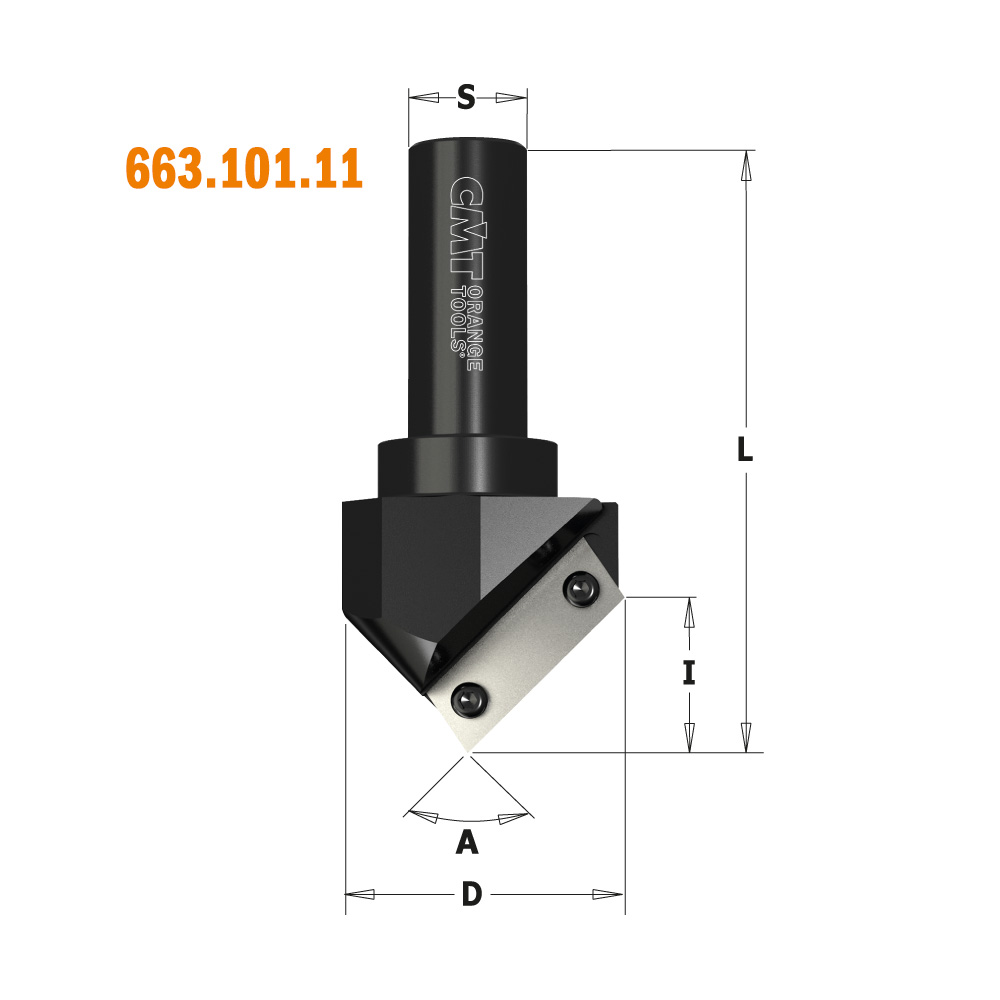

663.101.11
|
52 | 25 | 100 | 91° | 20 | 1 | RH | 790.360.01 | 991.061.00 | 990.020.00 | 990.073.00 | 990.036.00 | |||
|

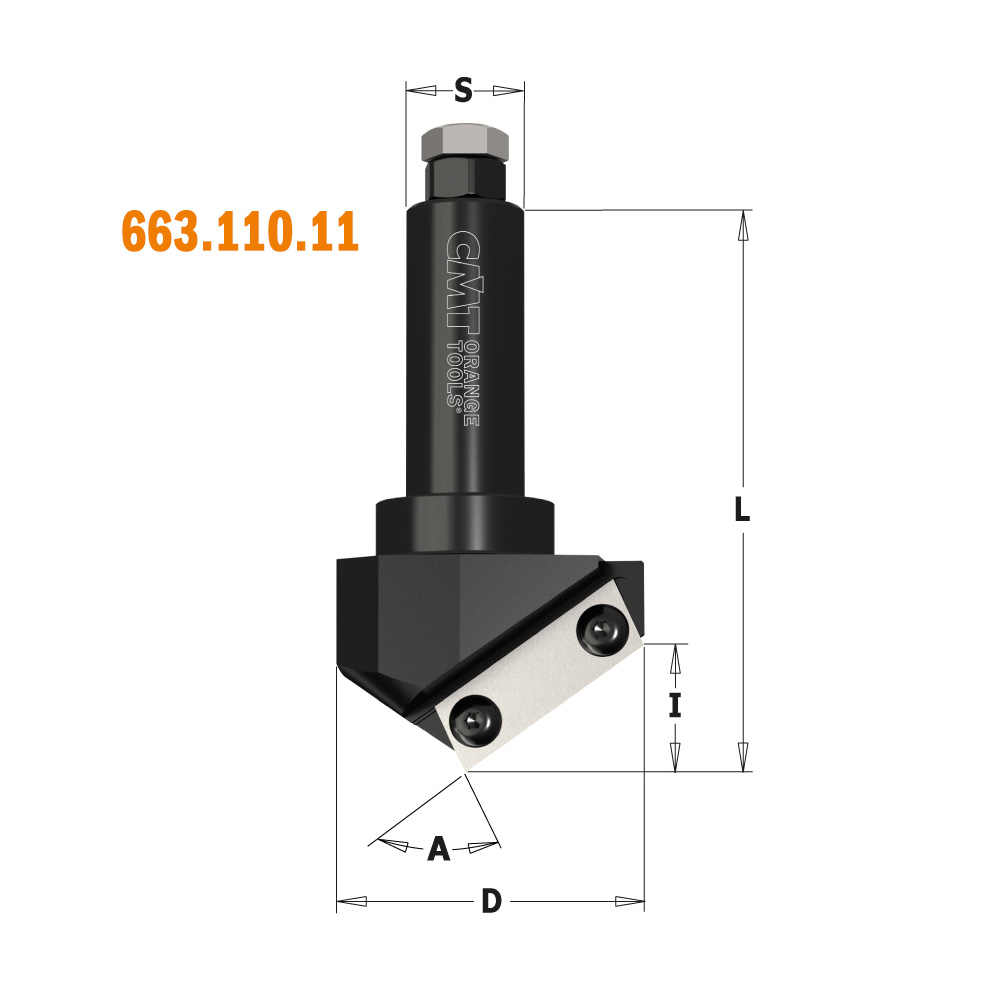

663.110.11
|
60 | 21 | 95 | 110° | 20 | 1 | RH | 790.360.01 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | |||
|

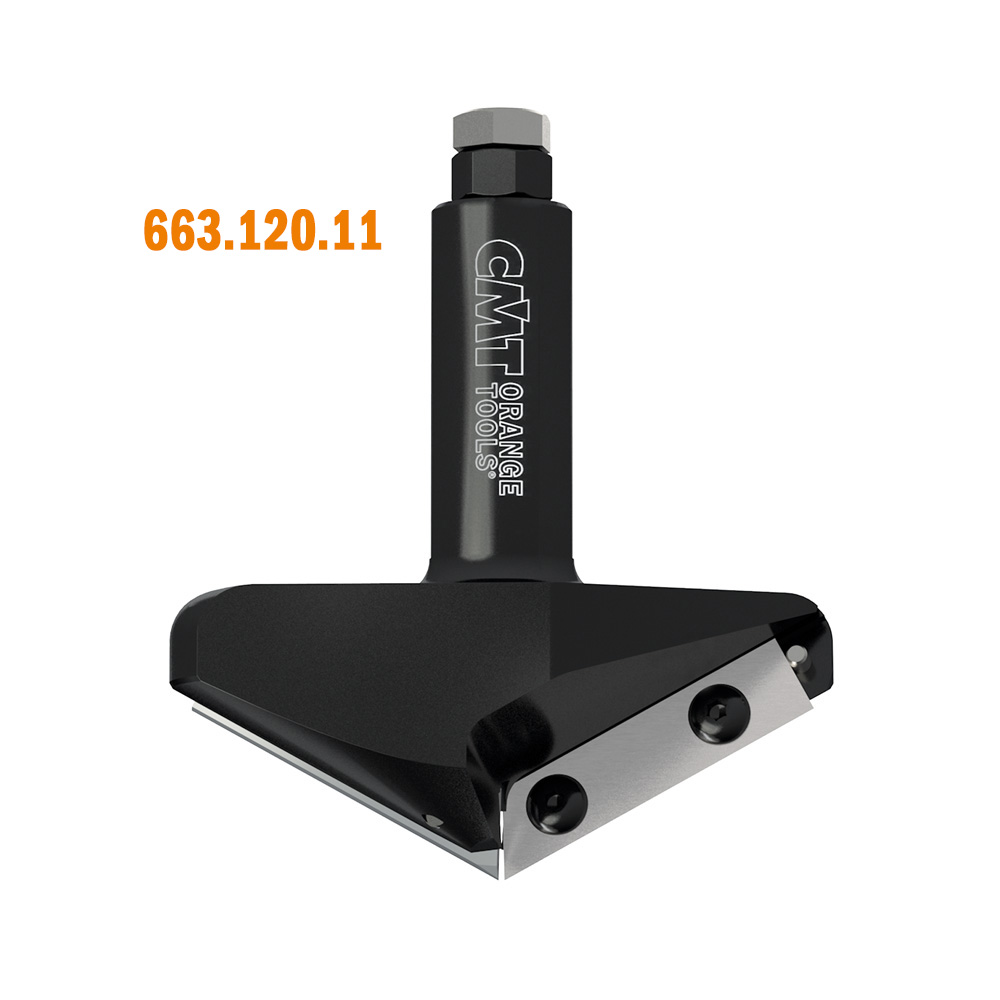

663.120.11
|
87 | 24 | 95 | 120° | 20 | 2 | RH | 790.496.01 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | |||
|

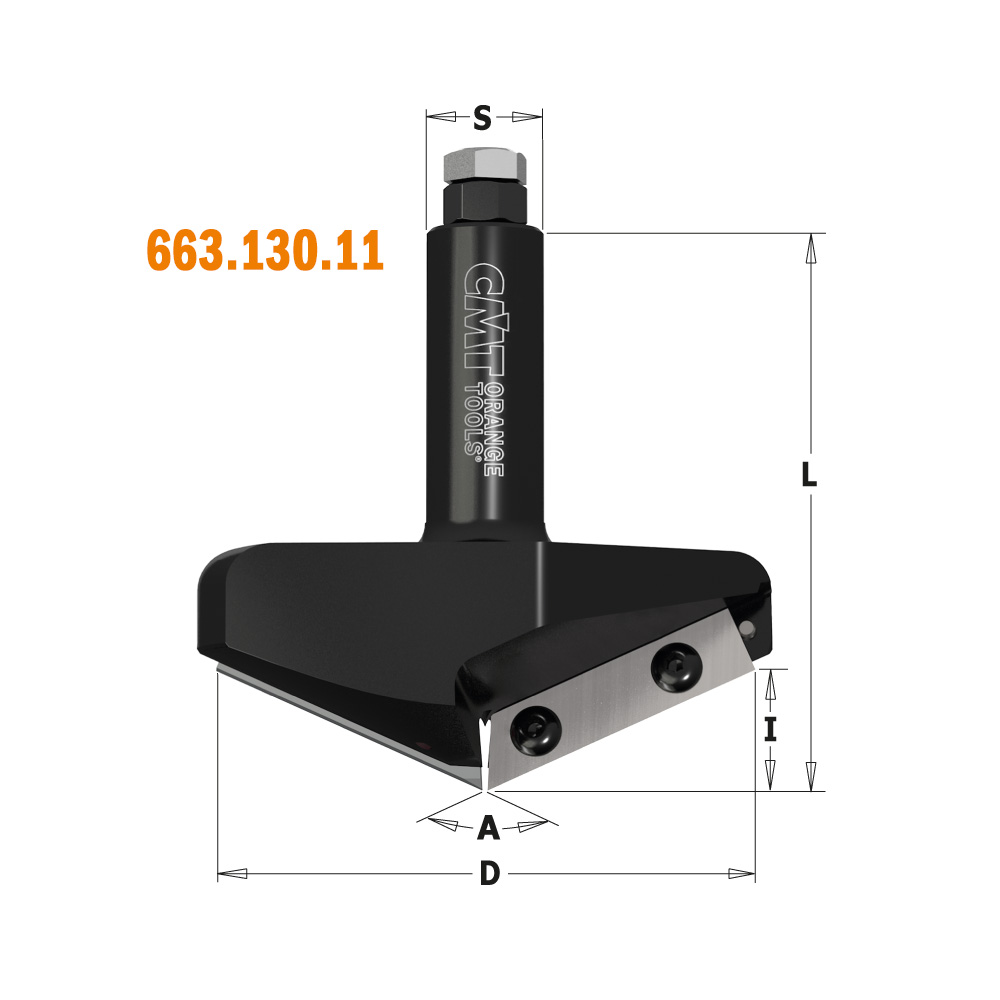

663.130.11
|
91 | 20 | 95 | 130° | 20 | 2 | RH | 790.496.01 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 | |||
|

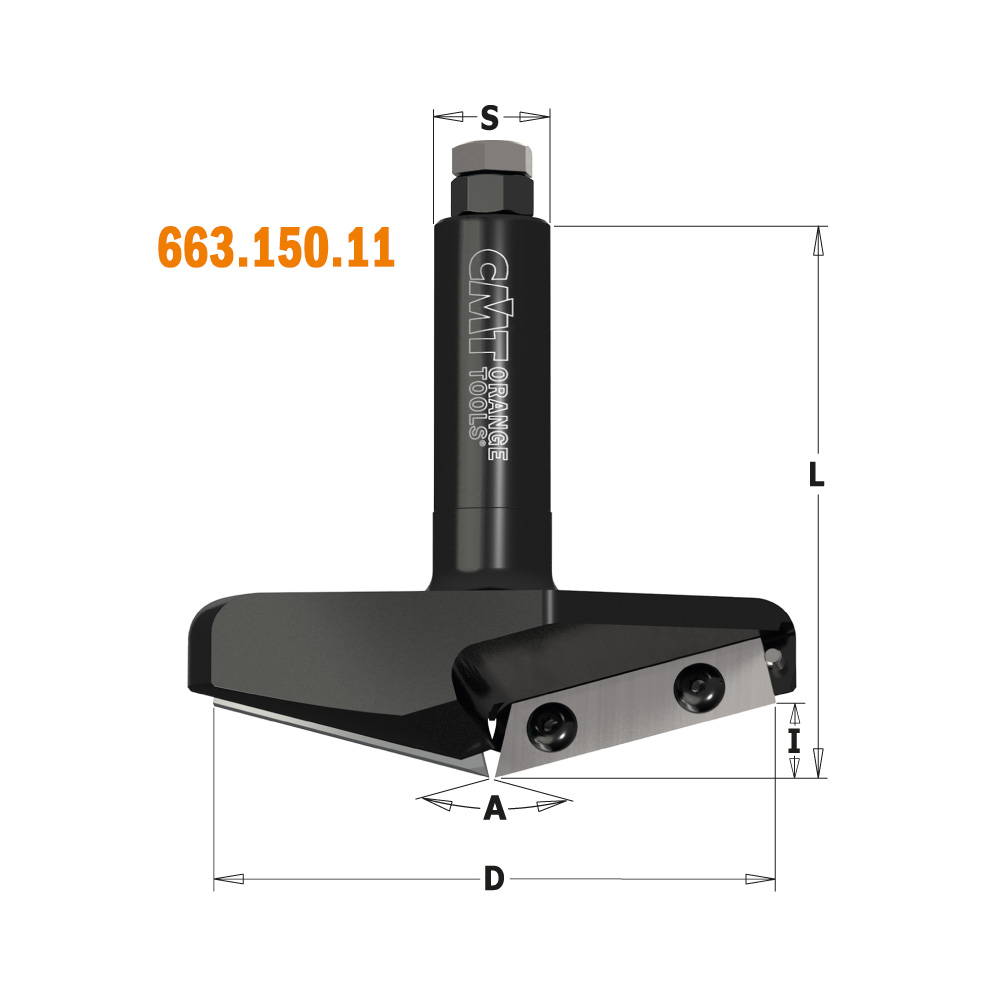

663.150.11
|
96,5 | 12,7 | 95 | 150° | 20 | 2 | RH | 790.496.01 | 990.075.00 | 991.061.00 | 990.020.00 | 990.036.00 |
