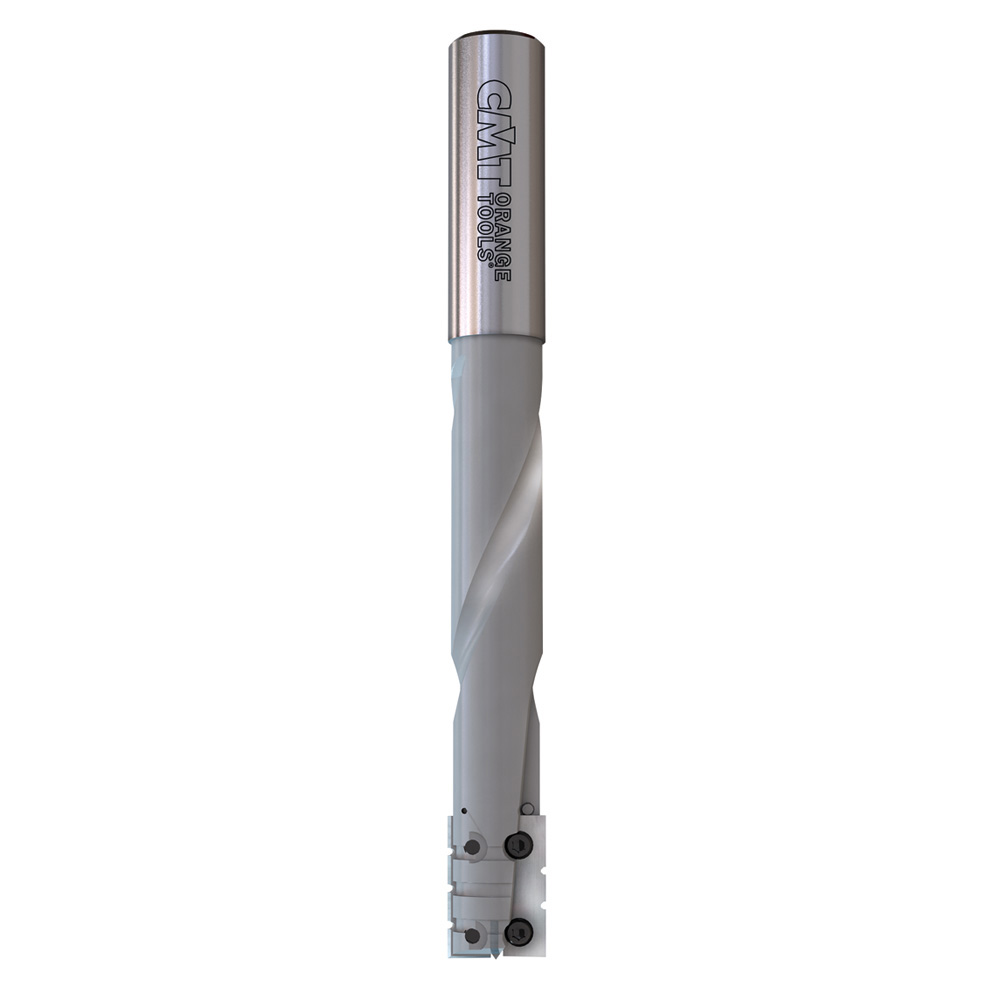

Spiral bit with insert knives and chipbreaker for locksets
662
Technical details:
- Densimet® high density tungsten alloy for low-vibration
- 2 cutting edges [Z2R].

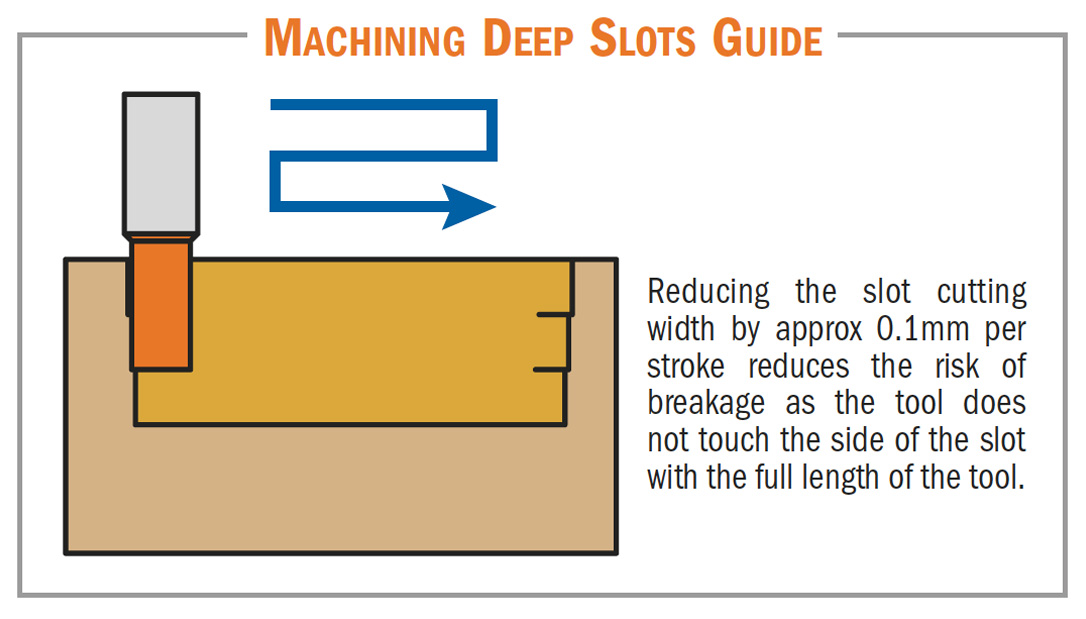

I = The 95mm length is achieved in 4-5 passes.
Details
Used for efficient contour cutting, end-trimming and panel sizing on solid wood, wood composites, plastic
materials and laminates at high feed speed. Ensure to properly clamp workpieces. Can be used on machin-
ing centres, point-to-point boring machines, CNC routers and hand-held routers equipped with chucks
or adaptors. Cost-effective solution with respect to brazed and spiral in tungsten carbide.
Variations
Filter

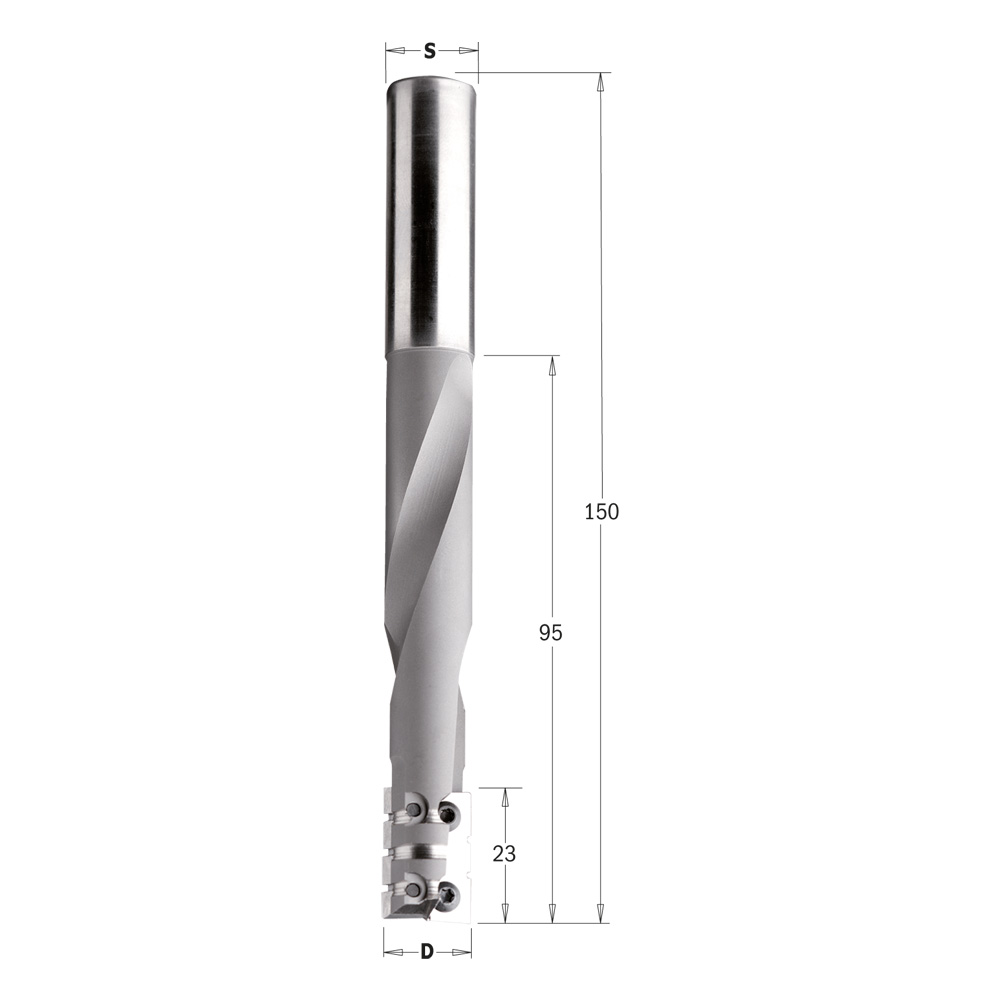

| Item Code | D | I1 | I | L | S | MAT | RH-LH |
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
662.160.11
|

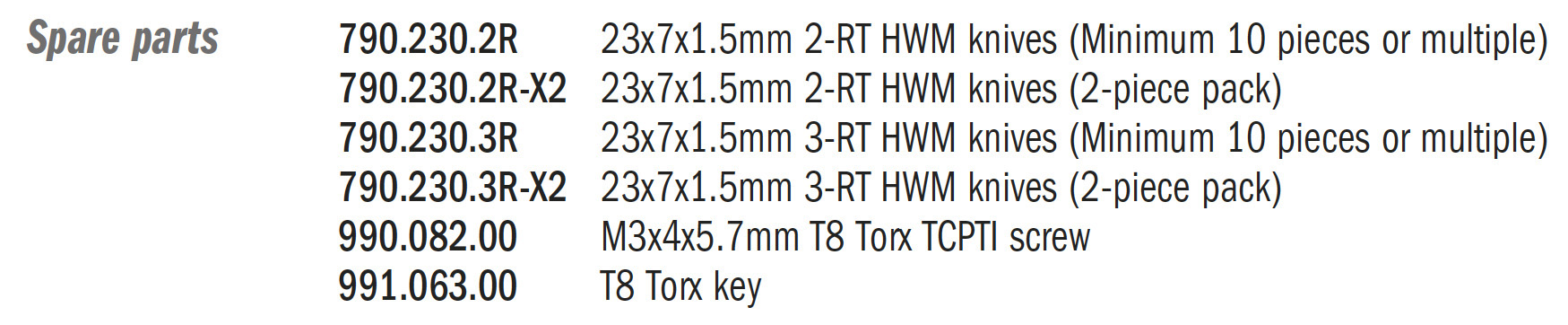

16 | 23 | 95 | 150 | 16 | HW | RH | 790.230.3R | 790.230.2R | 990.082.00 | 991.063.00 |
