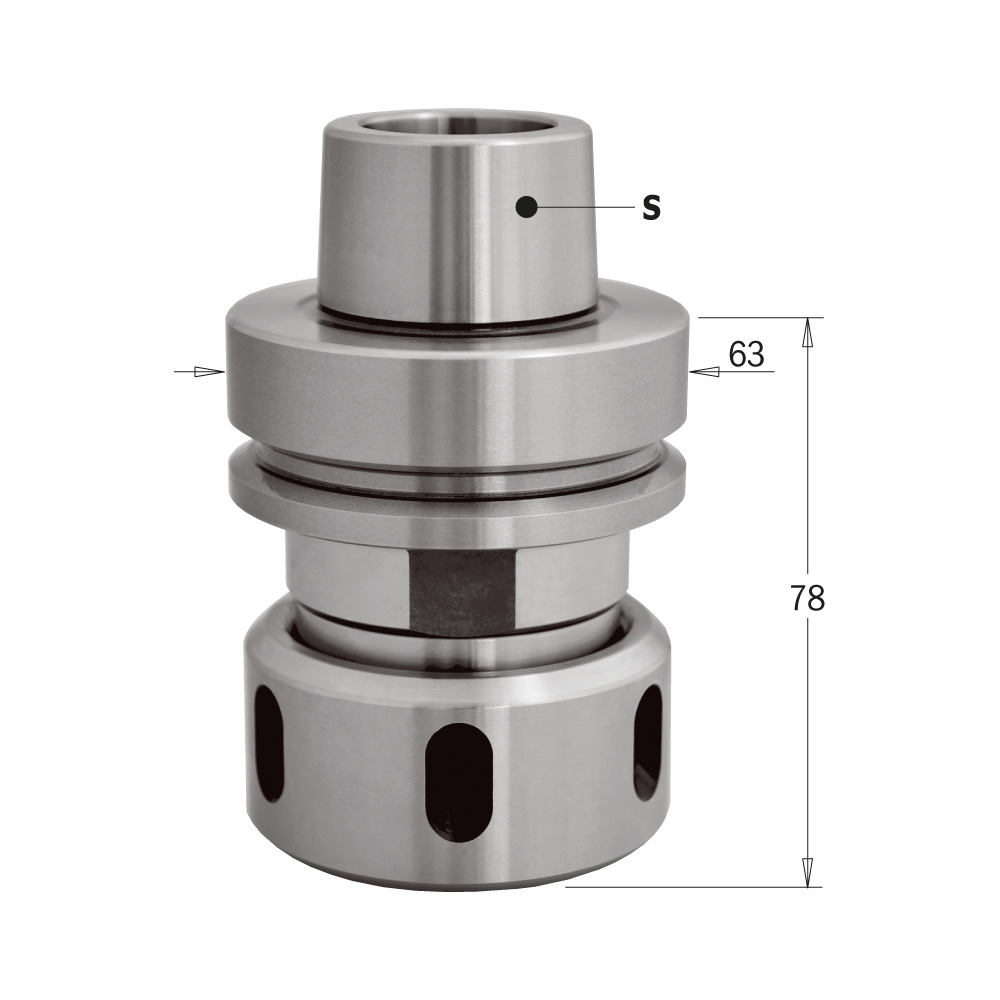

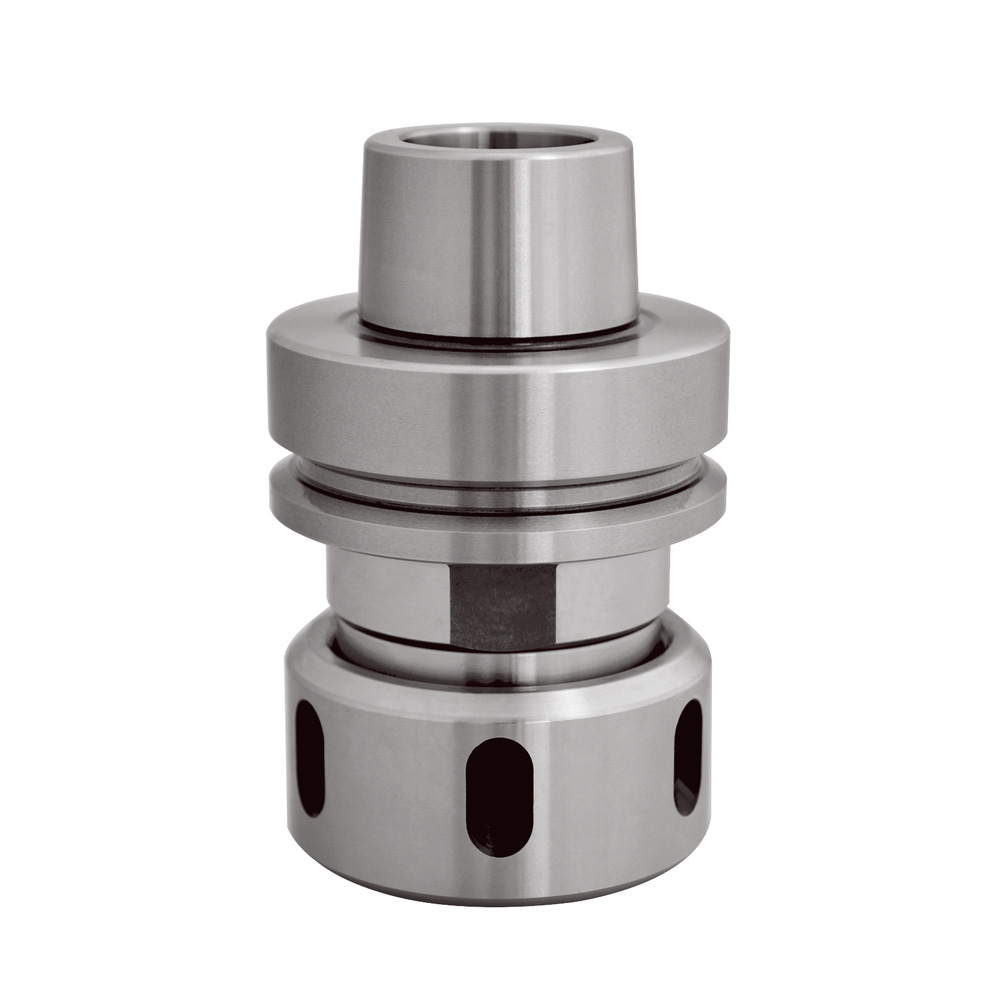

HSK-63F Chucks for “EOC25” Precision Collet “DIN6388”
183.320
The ideal accessories for machining centres, point-to-point machines and CNC routers.
- Extreme precision and reliability.
- Perfect tool centering.
- Defect-free rotation.
- Made from extremely high resistant steel.
- Precision grinding on all jointed parts.
- Extreme high rotation performance >= 15 HP – 20.000 RPM.
- For very efficient sizing on extreme unprecedented high feed speed.
- Excellent finishing quality on the workpiece and longer tool life.
- Sturdy design with reduced height to increase the work space between the machine and the piece.
- Safe and fast tool setup.
- Interchangeable collet clamps with radial grooves for secure parallel tool clamping.
- Wide clamping tolerance (-0.7mm).
- Right or left-hand rotation chucks with self clamping threads.
- Clamping nut with Woodruff radial grooves for c-spanners.
- Practical withdrawal sleeves with double differential threads for the chuck spindle.
- Central hexagonal low profile for easy tool clamping through a c-spanner.
- Designed and tested in collaboration with the most renowned machining and CNC router construction centres.
- Delivered in smart professional packaging.
Details
For HOMAG®, EIMA®, IMA® FROM 9/94, WEEKE®, BIESSE®, SCM®, MORBIDELLI® and MASTERWOOD® machines.
Safety Tips:
The TW-200 Torque Wrench is recommended for the proper fastening of clamping nuts.
Variations
Filter
| Item Code | S | Description | RH-LH |
|
|
|---|---|---|---|---|---|
|
183.320.01
|
HSK-F63 | Clamping nut with bearing | RH-LH | 992.283.01 | 992.283.11 |
|
183.320.03
|
HSK-F63 | Clamping nut without bearing | RH | 992.283.01 | 992.283.11 |
