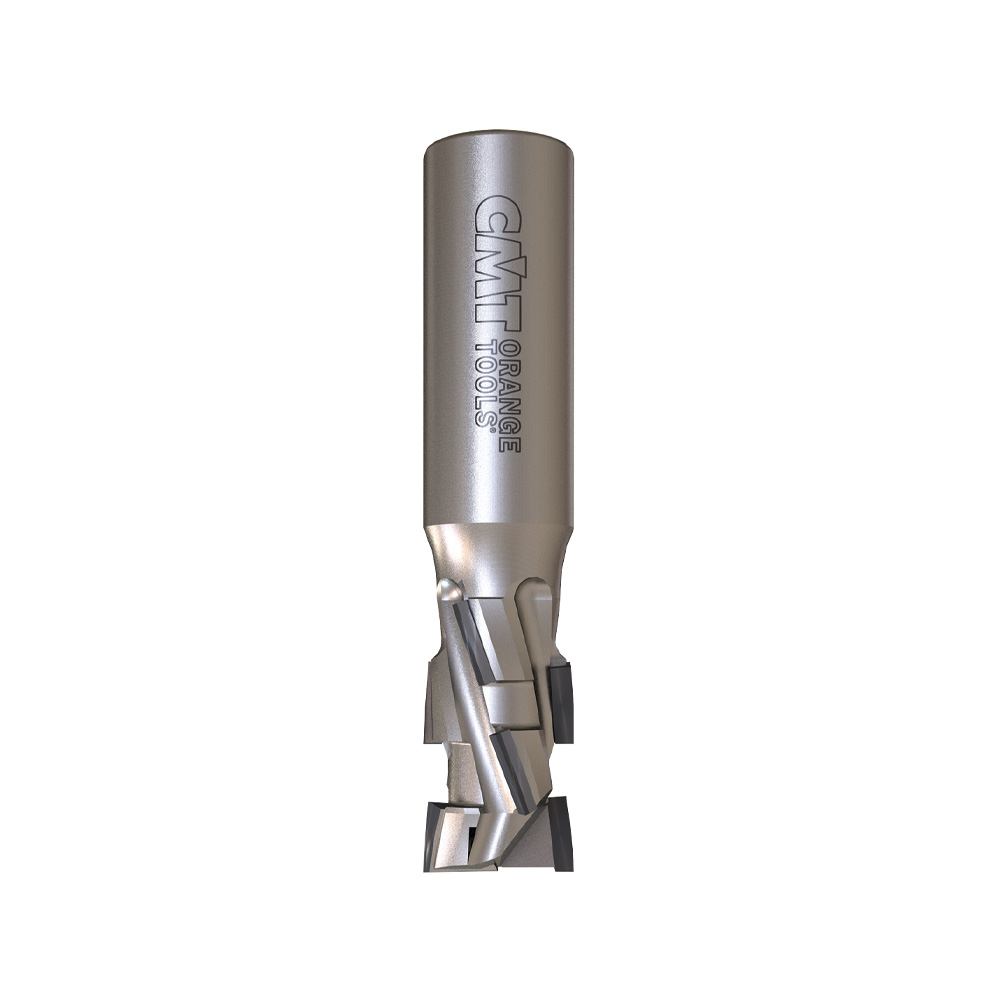

DP - Router Cutters with Shear Angle - LONG LIFE
142
TECHNICAL DETAILS:
• Super strength steel.
• DP cutting edge.
• HW plunging tip for diagonal plunge-cutting (Z-axis tool entrance).
• Resharpenable cutter (max 3 times).

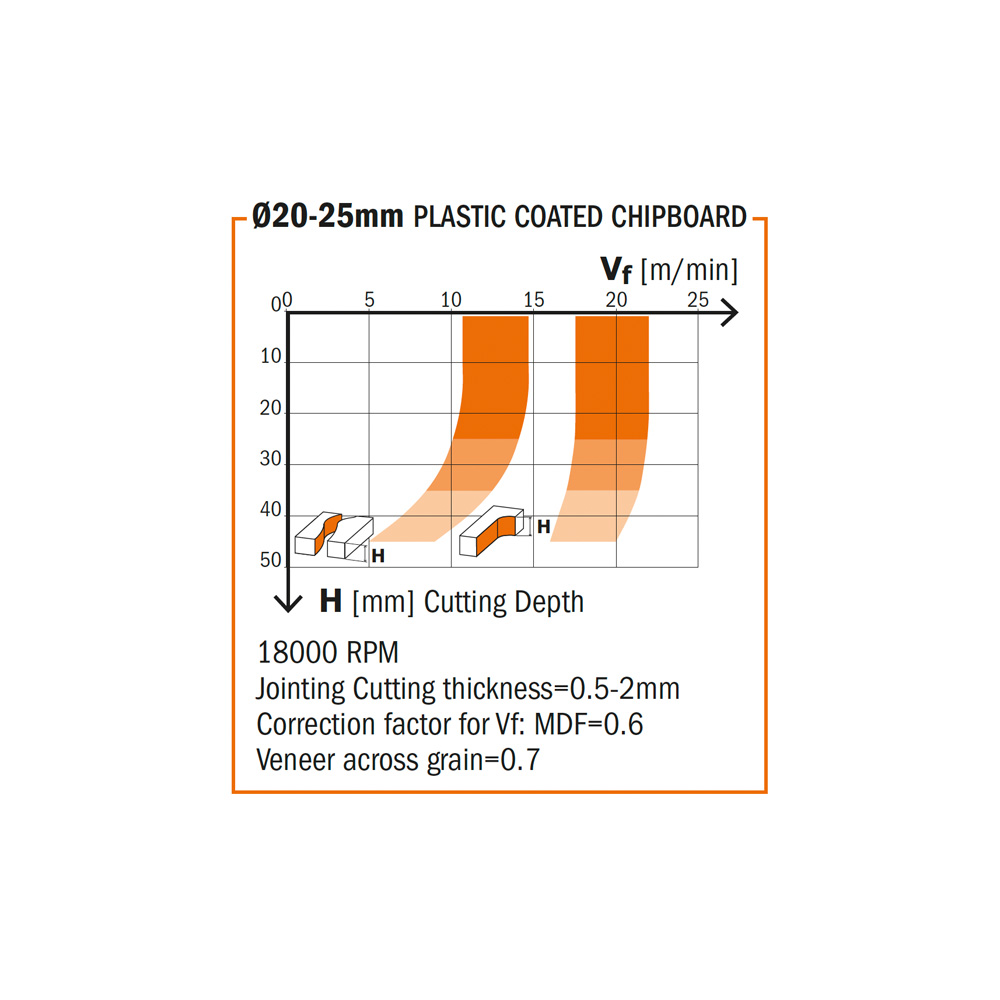

• Max feed speed 10 m/min.
Details
For use on CNC routers for jointing, rabbeting, grooving, on laminates, MDF, HPL, veneer and mela-
mine-faced panels..
Variations
Filter

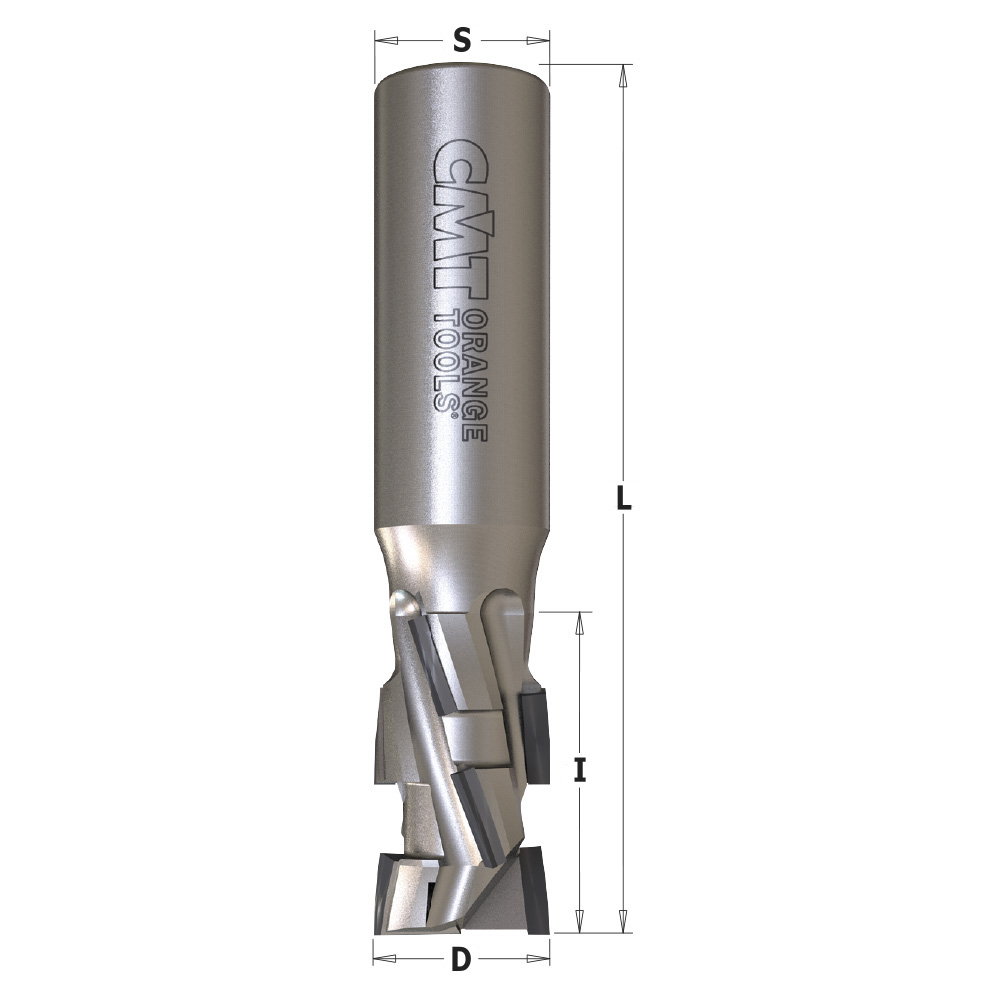

| Item Code | Description | D | I | L | S | Z | RH-LH |
|---|---|---|---|---|---|---|---|
|
142.200.61
|
Cutting edges 2+2 (6DP+1HW) | 20 | 27 | 85 | 20x50 | 2 + 2 | RH |
|
142.201.61
|
Cutting edges 2+2 (8DP+1HW) | 20 | 36 | 95 | 20x50 | 2 + 2 | RH |
|
142.202.61
|
Cutting edges 2+2 (10DP+1HW) | 20 | 45 | 105 | 20x50 | 2 + 2 | RH |
|
142.203.61
|
Cutting edges 2+2 (12DP+1HW) | 20 | 55 | 115 | 20x50 | 2 + 2 | RH |
|
142.250.61
|
Cutting edges 2+2 (6DP+1HW) | 25 | 27 | 90 | 25x55 | 2 + 2 | RH |
|
142.251.61
|
Cutting edges 2+2 (8DP+1HW) | 25 | 36 | 100 | 25x55 | 2 + 2 | RH |
|
142.252.61
|
Cutting edges 2+2 (10DP+1HW) | 25 | 45 | 110 | 25x55 | 2 + 2 | RH |
|
142.253.61
|
Cutting edges 2+2 (12DP+1HW) | 25 | 55 | 120 | 25x55 | 2 + 2 | RH |
