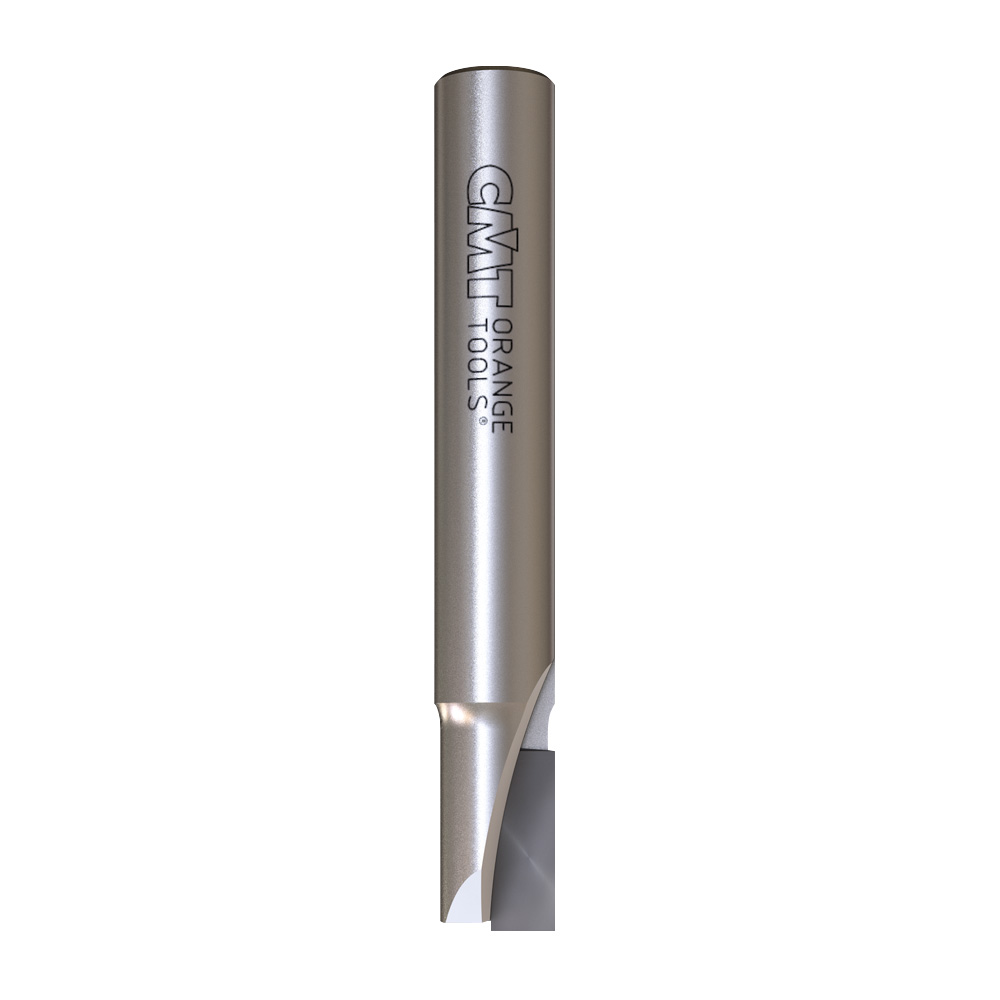

DP - Polycrystalline Router Cutters with Axial Cutting Edge - LONG LIFE
141.neg
TECHNICAL DETAILS:
• SPECIAL SUPER-MICROGRAIN CARBIDE FORMULATION.
• In new solid carbide.

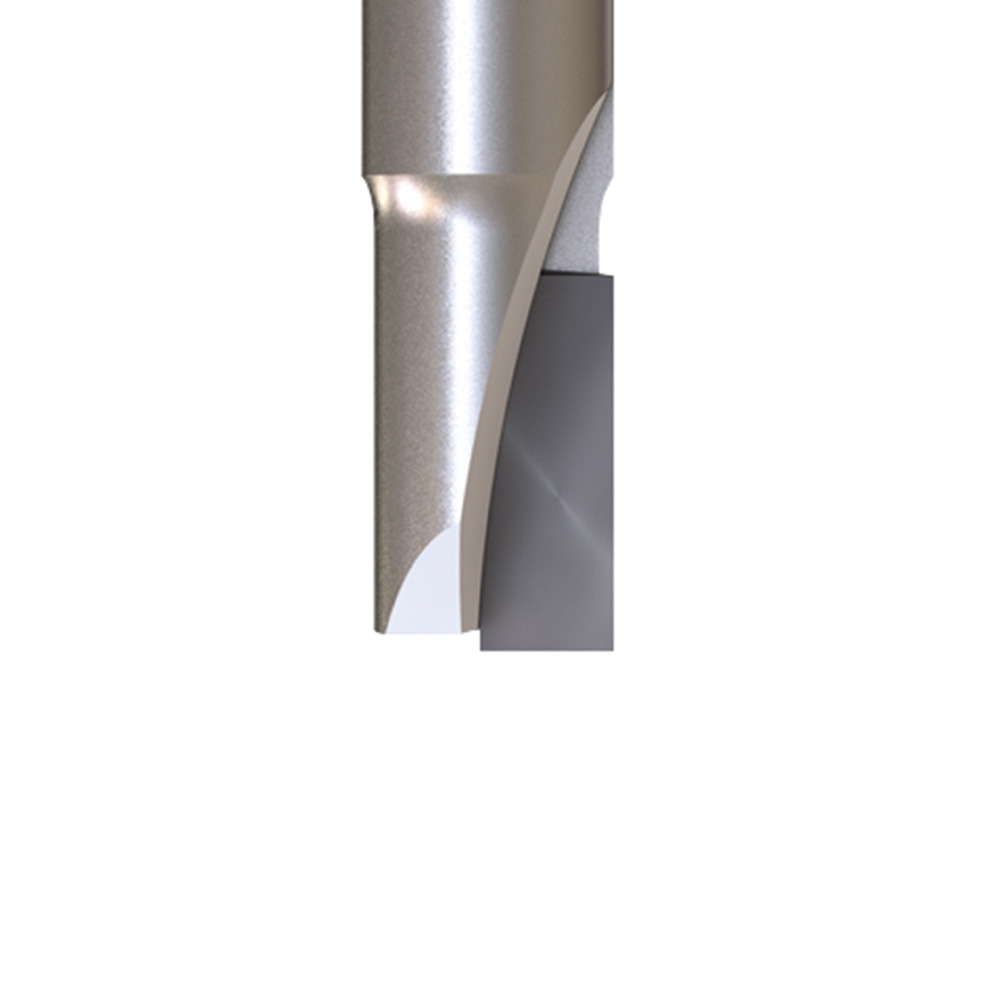

• Straight cutting edge.
• DP "H3".
• Resharpenable cutter (max 4 times).
• Feed speed on MDF 3-4 m/min for cutter Ø6 and Ø8mm and 4-5m/minute for Ø10and Ø12mm.
Details
For boring, contour cutting and panel sizing on veneered and wood-based materials. For use on machining
centers, point to point boring machines and CNC pantographs equipped with adaptors and chucks.
Variations
Filter

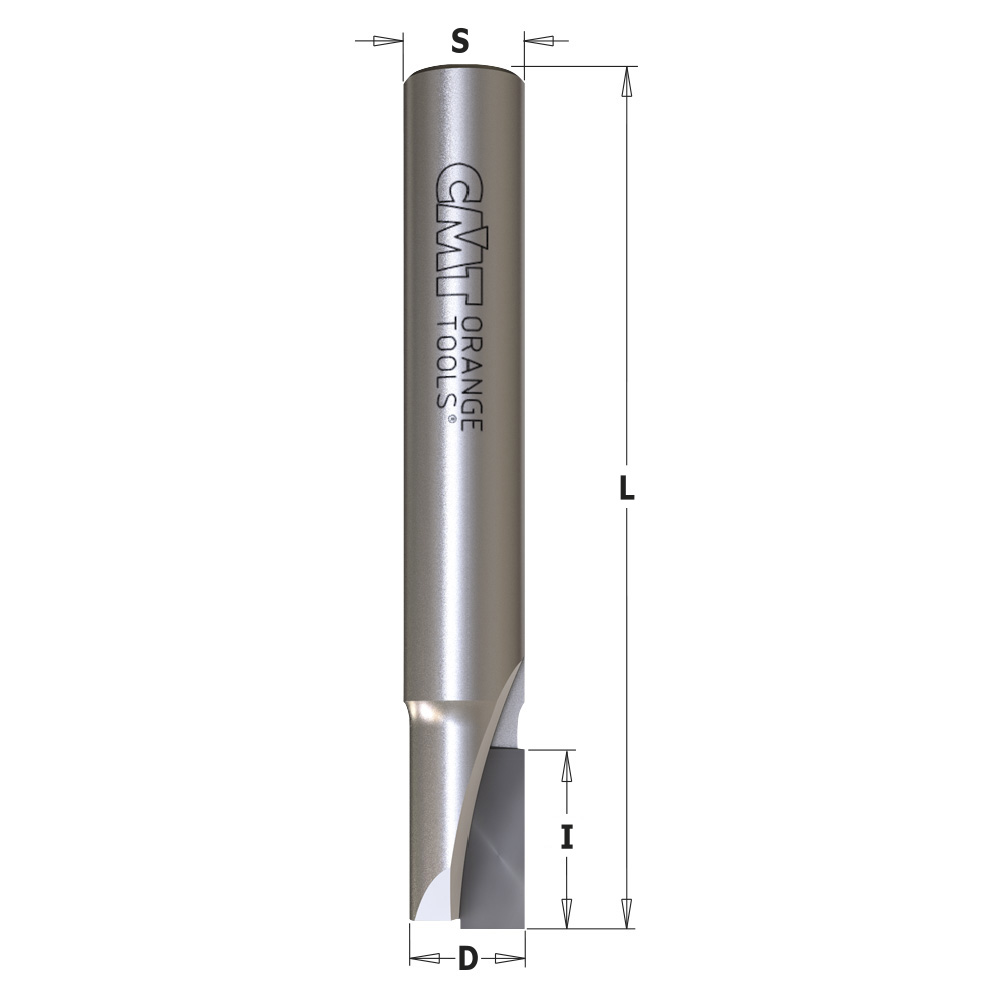

| Item Code | D | I | L | S | Z | RH-LH |
|---|---|---|---|---|---|---|
|
141.260.61
|
6 | 10 | 60 | 6 | 1 NEG | RH |
|
141.280.61
|
8 | 15 | 65 | 8 | 1 NEG | RH |
|
141.300.61
|
10 | 15 | 65 | 10 | 1 NEG | RH |
|
141.320.61
|
12 | 20 | 70 | 12 | 1 NEG | RH |
