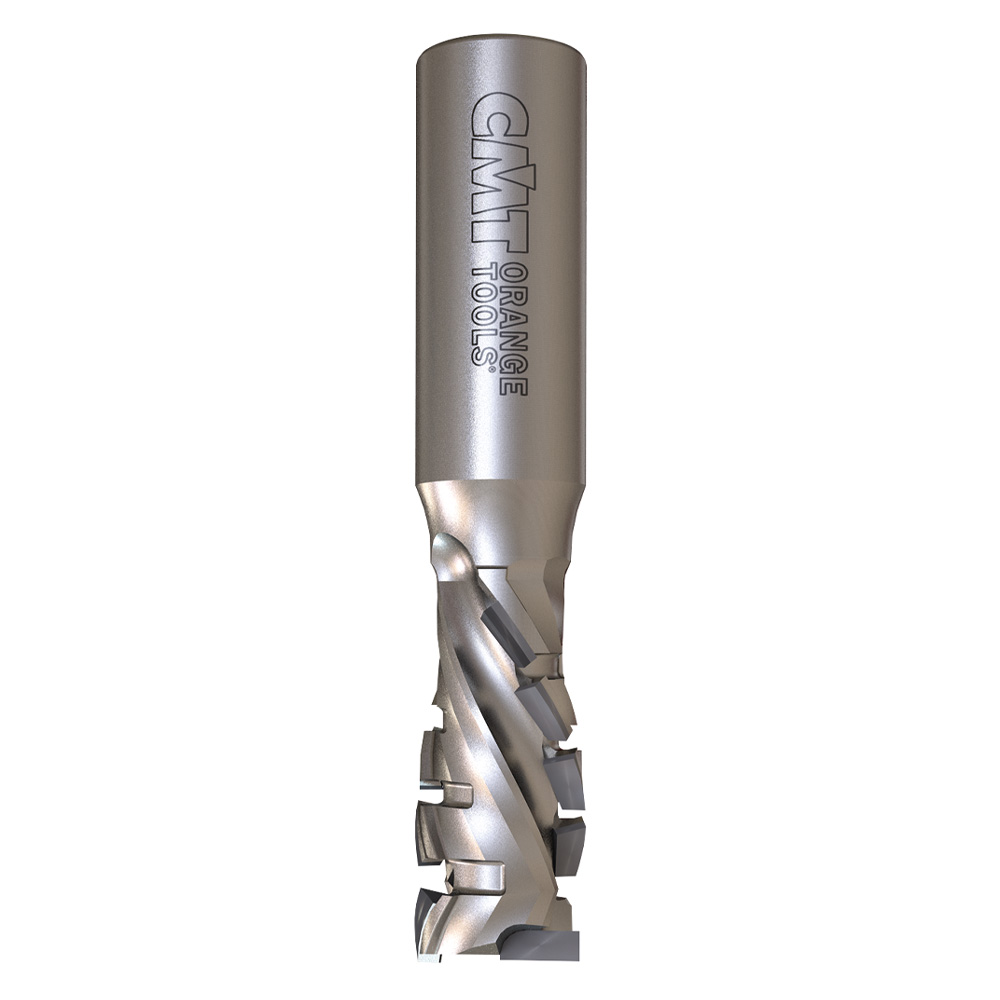

Diamond router cutters with 45° shear angle- LONG LIFE
140.7
TECHNICAL DETAILS:
• Super strength steel.
• “H4” diamond cutting edgesf featuring 45° shear angle.
• HW plunging tip for plunge cutting.
• Resharpenable cutters (max 8-9 times).
• Maximum feed speed 5m/minute.
Details
for contour cutting and panel sizing on hard and
abrasive materials such as laminates, MDF and mel-
amine. For use on machining centers, point to point
boring machines and CNC pantographs equipped with
adaptors and chucks.
Variations
Filter

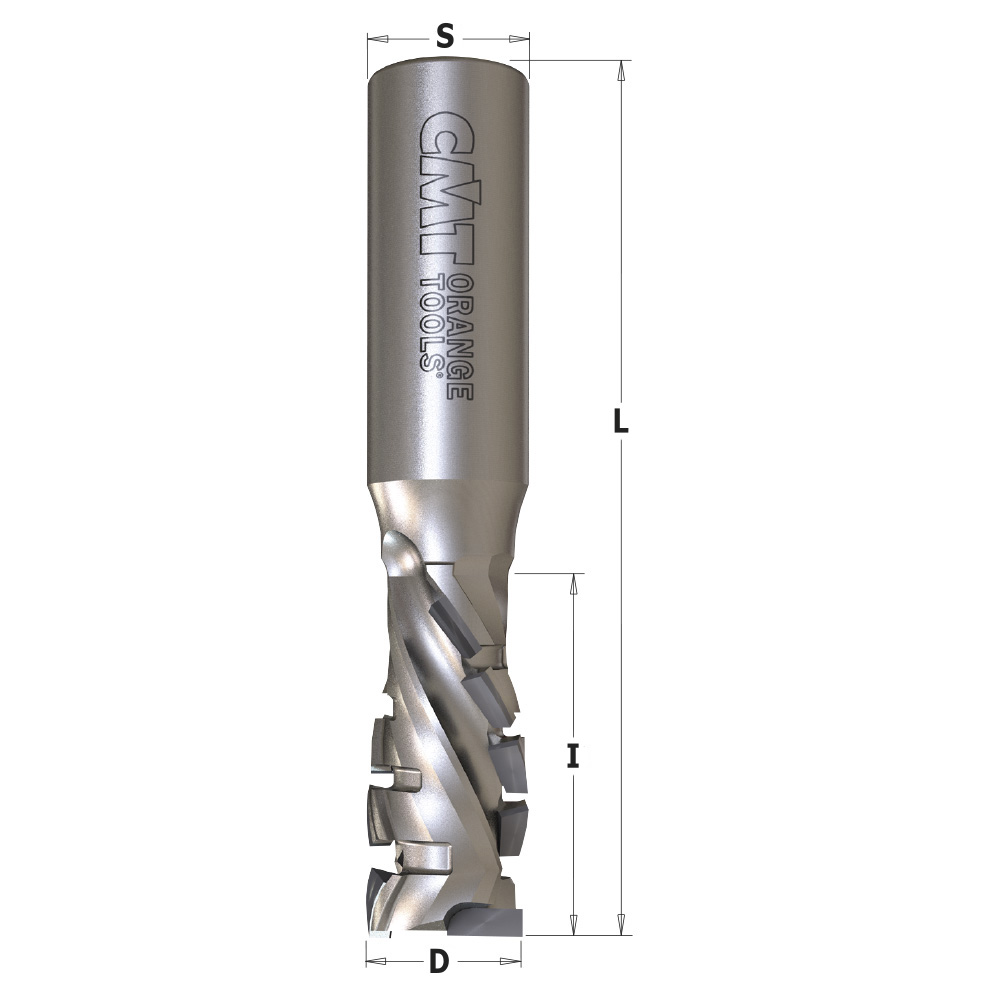

| Item Code | Description | D | I | L | S | RH-LH | MAT |
|---|---|---|---|---|---|---|---|
|
140.720.61
|
Cutting edges 1+1 (6DP+1HW) | 20 | 25 | 85 | 20x50 | RH | DP |
|
140.721.61
|
Cutting edges 1+1 (8DP+1HW) | 20 | 35 | 95 | 20x50 | RH | DP |
|
140.722.61
|
Cutting edges 1+1 (9DP+1HW) | 20 | 45 | 105 | 20x50 | RH | DP |
