Pattern/flush trim router bits with insert knives
657B
A flush trim bit combined with a pattern bit and fixed with Torx screws. The blades are sharpened on both sides and can provide extra new edges.
Guided flush trim bits type 657 are equipped with top and bottom ball bearing guides.
Recommended for flush and finishing operations.
Recommended for flush and finishing operations.
Details
Safety Tips:
The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.
Variations
Filter

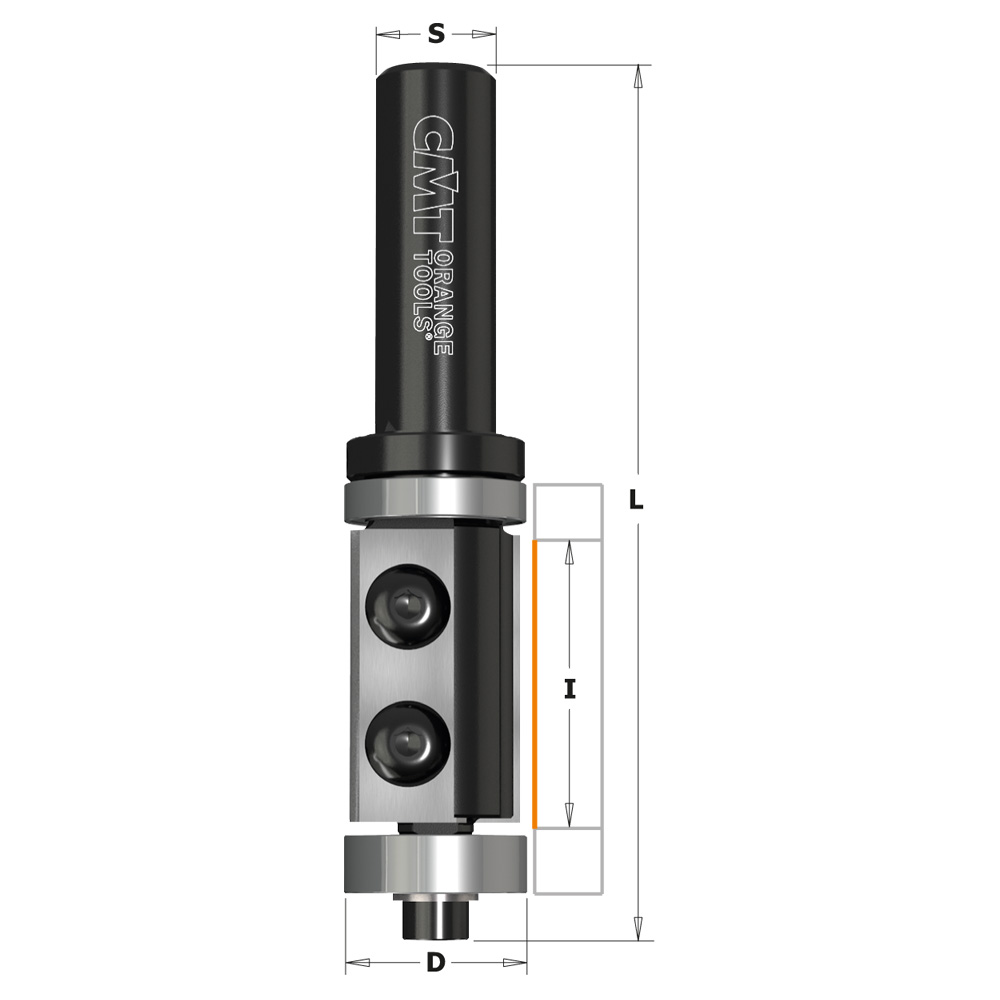

| Item Code | I | D | L | S | Z | MAT | RH-LH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
657.191.11B
|
30 | 19 | 90 | 8 | 2 | HW | RH | 791.007.00 | 991.067.00 | 990.075.00 | 991.061.00 | 990.410.00 | 990.052.00 | 541.004.00 | 791.034.00 | 991.056.00 | 790.300.00 | |||
|
657.692.11B
|
30 | 19 | 90 | 12,7 | 2 | HW | RH | 791.007.00 | 991.067.00 | 541.002.00 | 990.075.00 | 991.061.00 | 990.410.00 | 990.052.00 | 791.011.00 | 991.056.00 | 790.300.00 | |||
|
657.993.11B
|
50 | 19 | 110 | 12 | 2 | HW | RH | 790.500.00 | 791.007.00 | 991.067.00 | 541.002.00 | 990.075.00 | 991.061.00 | 990.410.00 | 990.052.00 | 791.011.00 | 991.056.00 | |||
|
657.994.11B
|
50 | 19 | 110 | 12,7 | 2 | HW | RH | 790.500.00 | 791.007.00 | 991.067.00 | 541.002.00 | 990.075.00 | 991.061.00 | 990.410.00 | 990.052.00 | 791.011.00 | 991.056.00 | |||
|
657.995.11B
|
60 | 19 | 120 | 12 | 2 | HW | RH | 791.007.00 | 541.002.00 | 990.075.00 | 990.052.00 | 791.011.00 | ||||||||
|
657.996.11B
|
60 | 19 | 120 | 12,7 | 2 | HW | RH | 791.007.00 | 541.002.00 | 990.075.00 | 990.052.00 |
