Slot cutter sets
8/923.001

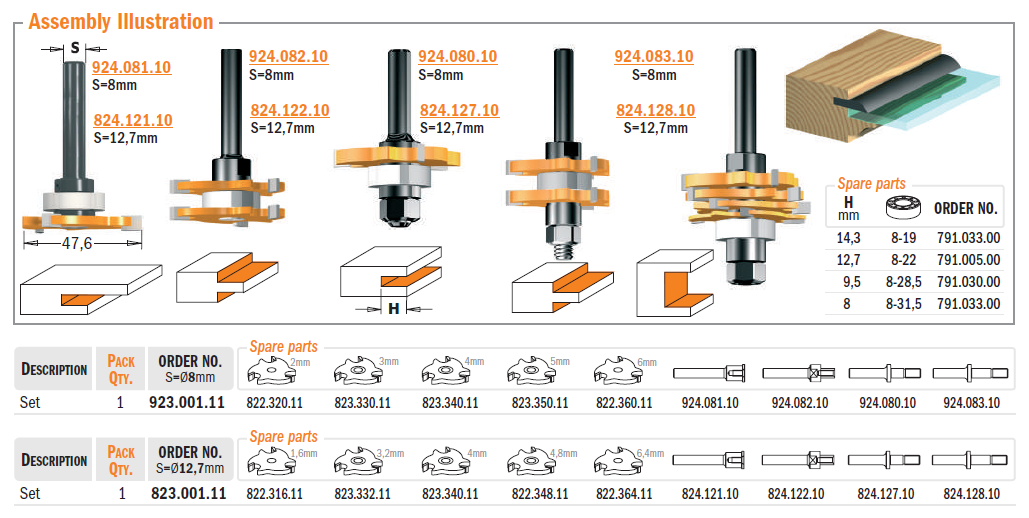

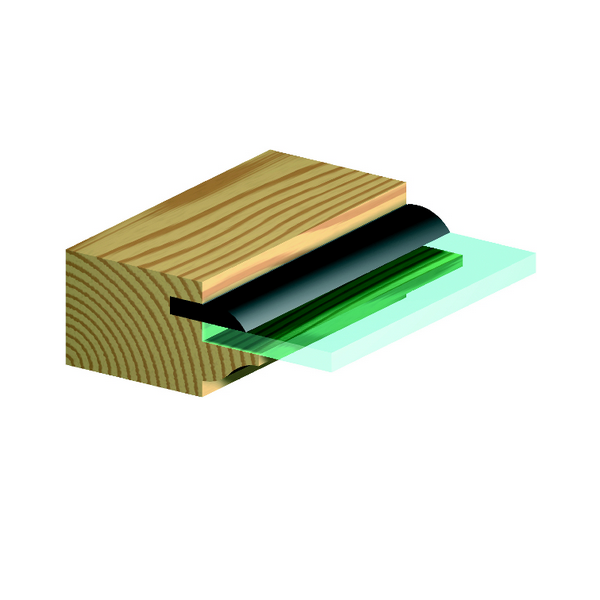

Create slots, grooves and rabbets easily with these CMT slot cutters sets. Ideal for biscuit joints and milling perfect tongue-and-groove joints, these sets include 4 bearings allowing different cutting depths: 7,95mm (5/16”), 9,55mm (3/8”), 12,7mm (1/2”) and 14,3mm (9/16”). Please refer to the drawings for some application examples and the correct cutter combinations.
Safety tips: never use these slot cutters set without shims between the cutters. The distance between the cutters can vary from 1mm (3/64”) to 1,7mm (1/16”). A shim must also be positioned between the ball bearings and the cutters.
Details
For US Market ( 823.001.11)
.png)
Download
Variations
Filter
| Item Code | Description | S |
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
823.001.11
|
Slot cutter set with chucks | 12,7 | 991.067.00 | 791.030.00 | 791.005.00 | 791.033.00 | 822.316.11 | 823.340.11 | 822.348.11 | ||
|
923.001.11
|
Slot cutter set with chucks | 8 | 991.067.00 | 791.030.00 | 791.005.00 | 791.033.00 | 822.360.11 | 822.320.11 | 823.340.11 |
