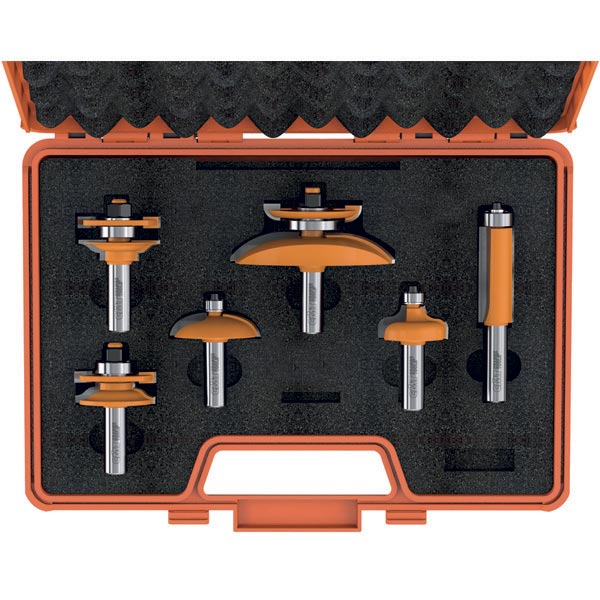

6 piece cabinetmaking sets
800.515-520
Available with raised panel bits in two different profiles, these sets feature six router bits for making arched raised panel doors and professional drawer fronts. These sets include:
OGEE RAIL & STILE BITS: these two perfectly matched tools will eliminate the frustration of setting up reversible cutters. The stile bits also feature shear angles for neater cuts.
RAISED PANEL BIT WITH BACKCUTTER: this 88,9mm (3-1/2") diametre bit features a backcutter for milling both the front and the back on the panel in a single cut. We recommend using a 31,7mm (1-1/4") diametre bearing to work safely in two shallow passes.
SUPER-DUTY FLUSH TRIM BIT: this 19mm (3/4") diametre bit gives you a superior cut with minimal chipping, even on end grain.
OGEE DOOR EDGE BIT: a subtle cove followed by a subtle roundover adds an elegant touch to your door edge.
DRAWER FRONT BIT:: this bit makes a mini-raised panel cut on the outside edges of your drawer fronts.
OGEE RAIL & STILE BITS: these two perfectly matched tools will eliminate the frustration of setting up reversible cutters. The stile bits also feature shear angles for neater cuts.
RAISED PANEL BIT WITH BACKCUTTER: this 88,9mm (3-1/2") diametre bit features a backcutter for milling both the front and the back on the panel in a single cut. We recommend using a 31,7mm (1-1/4") diametre bearing to work safely in two shallow passes.
SUPER-DUTY FLUSH TRIM BIT: this 19mm (3/4") diametre bit gives you a superior cut with minimal chipping, even on end grain.
OGEE DOOR EDGE BIT: a subtle cove followed by a subtle roundover adds an elegant touch to your door edge.
DRAWER FRONT BIT:: this bit makes a mini-raised panel cut on the outside edges of your drawer fronts.
Download
Variations
Filter
| Item Code | Description | Profile no. | S |
|---|---|---|---|
|
800.515.11
|
6 piece cabinetmaking set | A | 12,7 |
|
800.520.11
|
6 piece cabinetmaking set | B | 12,7 |
