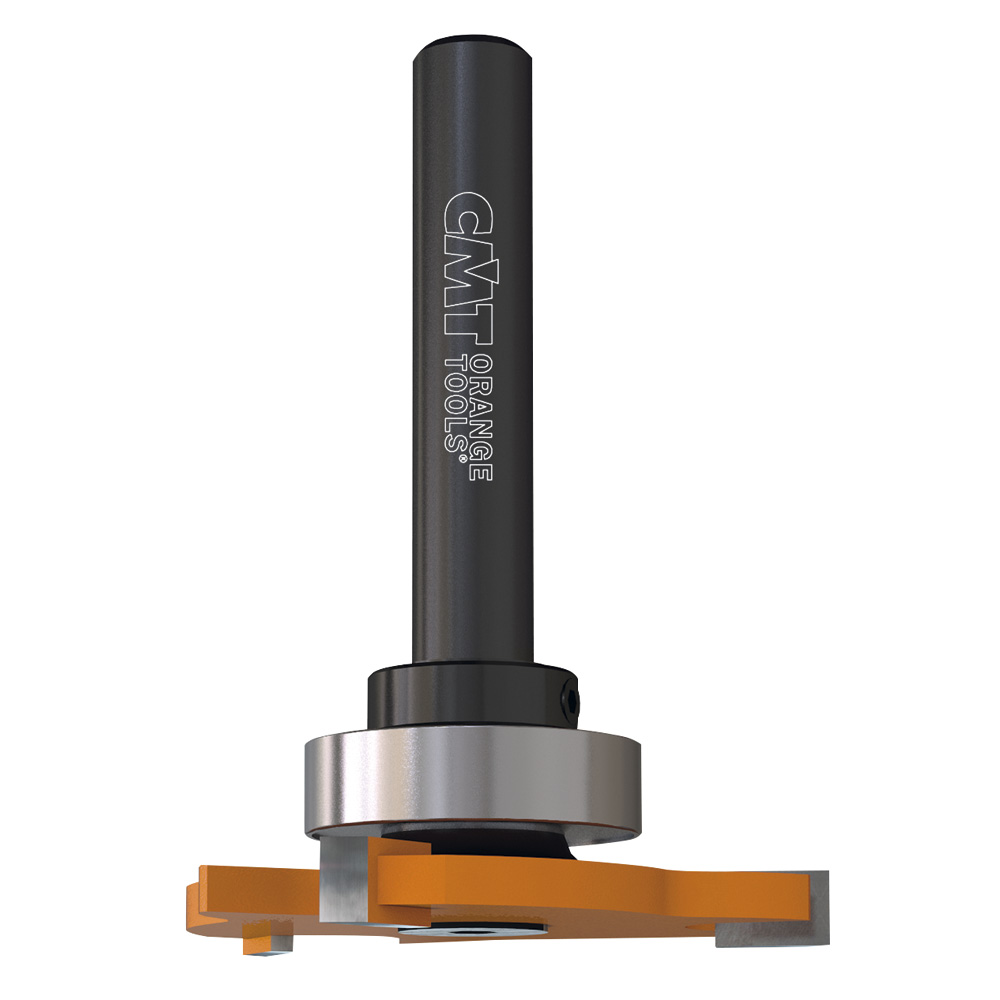

Slot cutters
923A-823B
The possible uses of this bit are almost: you can rout grooves and rabbets, T or dovetail joints on wood panels. Each bit has three carbide tipped cutters and has an orange colored PTFE coating, it features anti-kickback design too. The 22mm (7/8") bearing is included for a cutting depth of 12,8mm (1/2"). The bit and the slot cutter are available also separately.
NOTE: This cutter comes with a Ø22mm bearing for
2.8mm depth cuts. By ordering different bearings
this depth can be shortened.
Variations
Filter

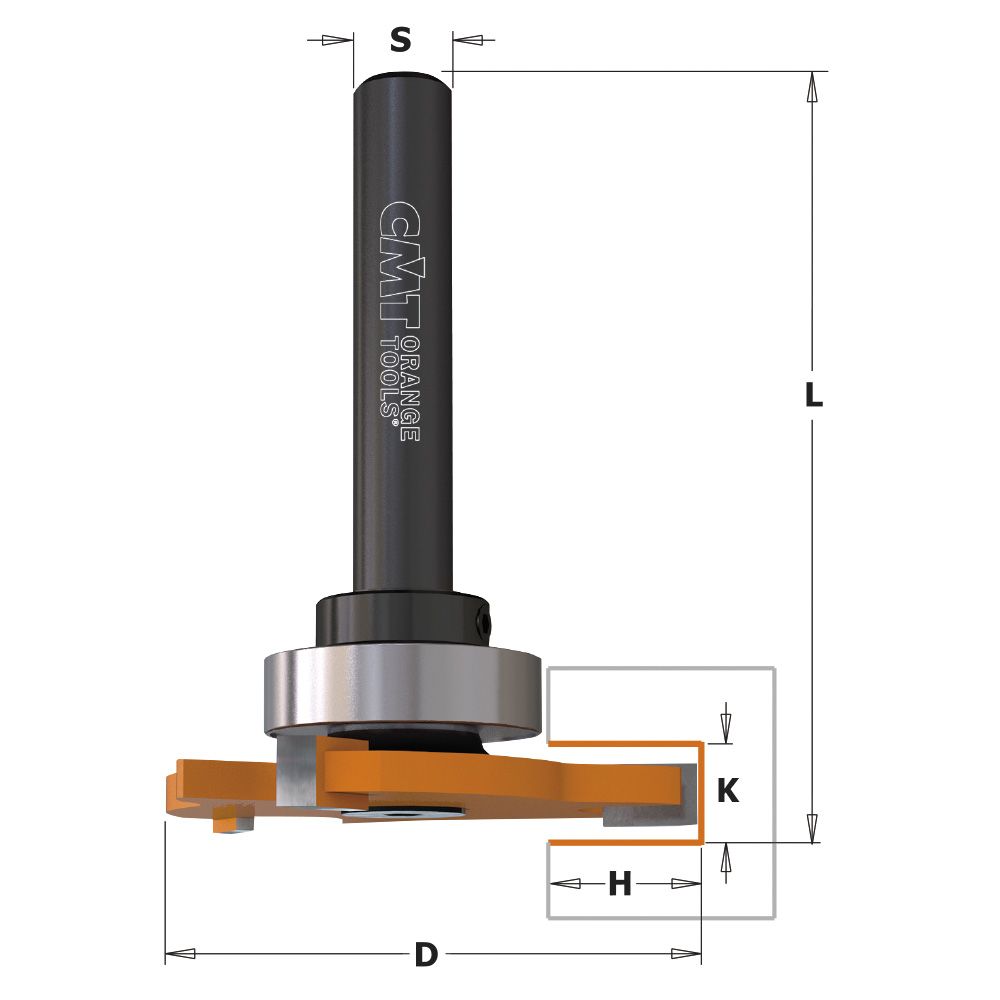

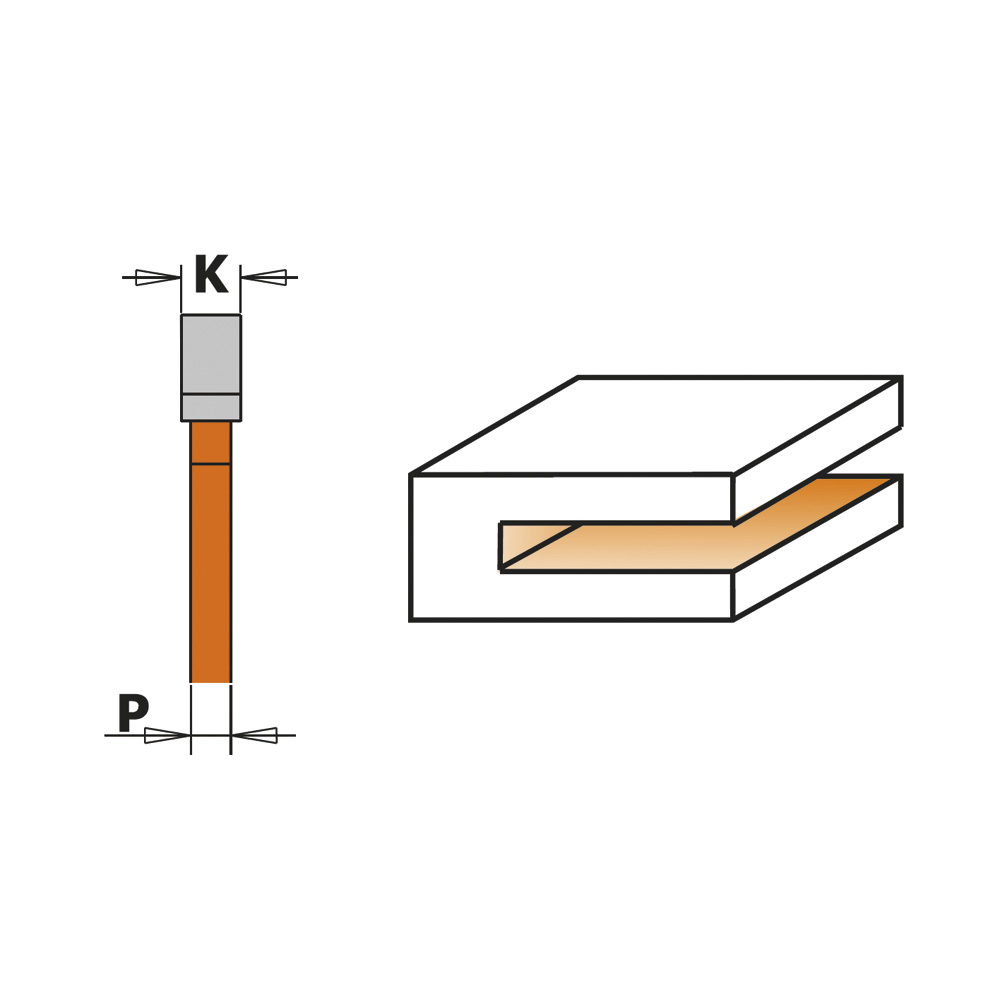

| Item Code | K | P | D | H | L | S |
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
823.332.11B
|
3.2 | 1.27 | 47.63 | 12.7 | 57.5 | 12.7 | 541.002.00 | 791.013.00 | 990.055.00 | |||
|
823.340.11B
|
4 | 2.1 | 47.63 | 12.7 | 58.3 | 12.7 | 541.002.00 | 791.013.00 | 823.340.11 | 990.055.00 | ||
|
823.364.11B
|
6.4 | 4.45 | 47.63 | 12.7 | 61 | 12.7 | 541.002.00 | 791.013.00 | 990.055.00 | |||
|
923.330.11A
|
3 | 1.27 | 47.63 | 12.8 | 58 | 8 | 541.004.00 | 791.012.00 | 990.055.00 | |||
|
923.340.11A
|
4 | 2.07 | 47.63 | 12.8 | 58.3 | 8 | 541.004.00 | 791.012.00 | 823.340.11 | 990.055.00 | ||
|
923.350.11A
|
5 | 2.86 | 47.63 | 12.8 | 63 | 8 | 541.004.00 | 791.012.00 | 990.055.00 |
