Horizontal Raised panel router bits
8/990

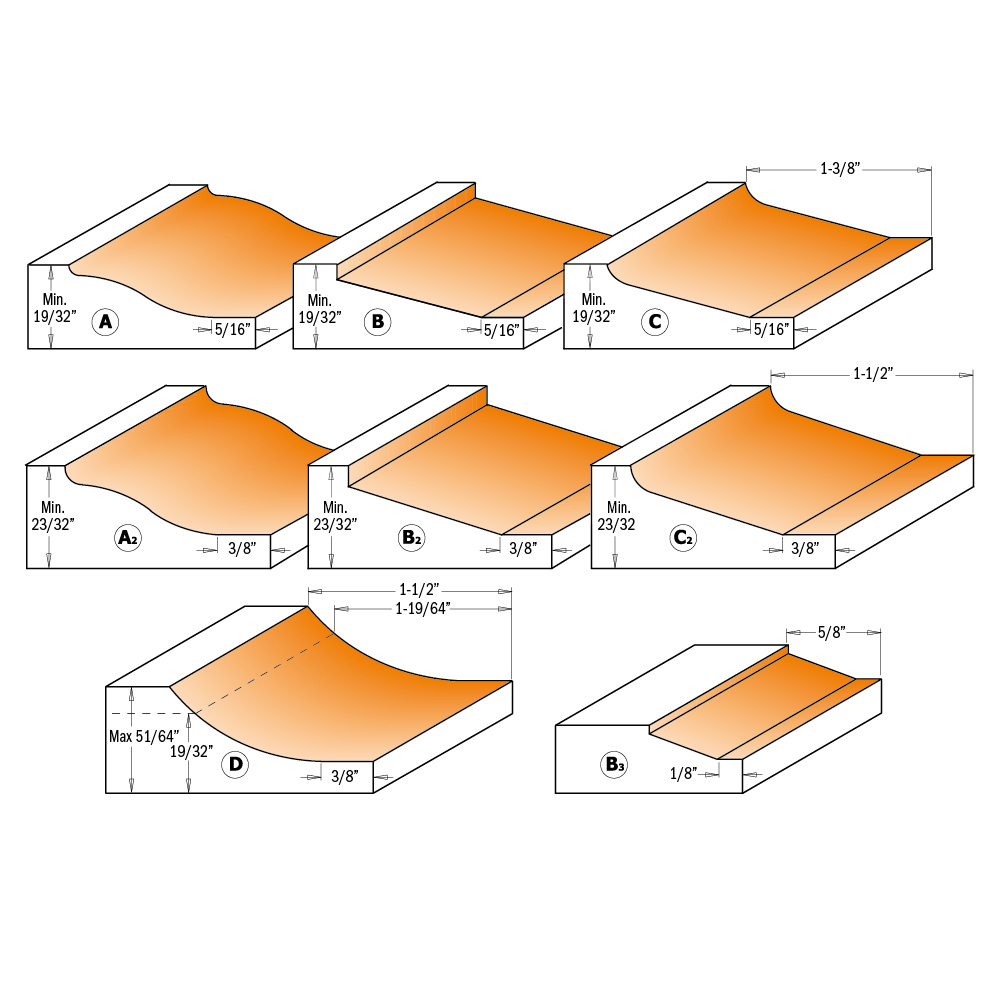

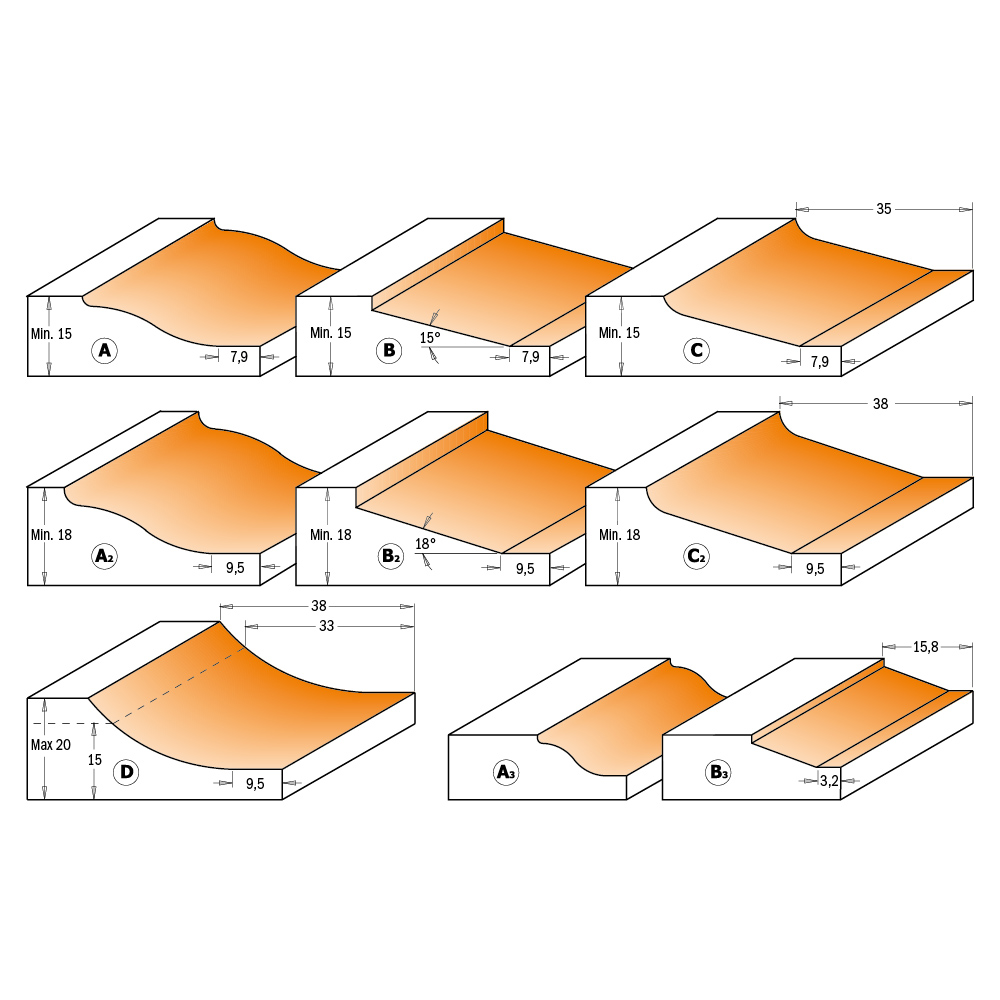

Make classic raised panel doors by choosing from the profiles illustrated below.
Its anti-kickback design is fundamental in further improving safety when working with larger diameter bits.
Safety Tips:
This type of bit needs to be used at a lower rotational speed, preferably between 10,000 and 12,000 RPMs.
Three to five passes are recommended to safely and accurately obtain the profile you desire.
To be used on routers with at least 1800 Watt or 2-1/4 HP.
Download
Variations
Filter

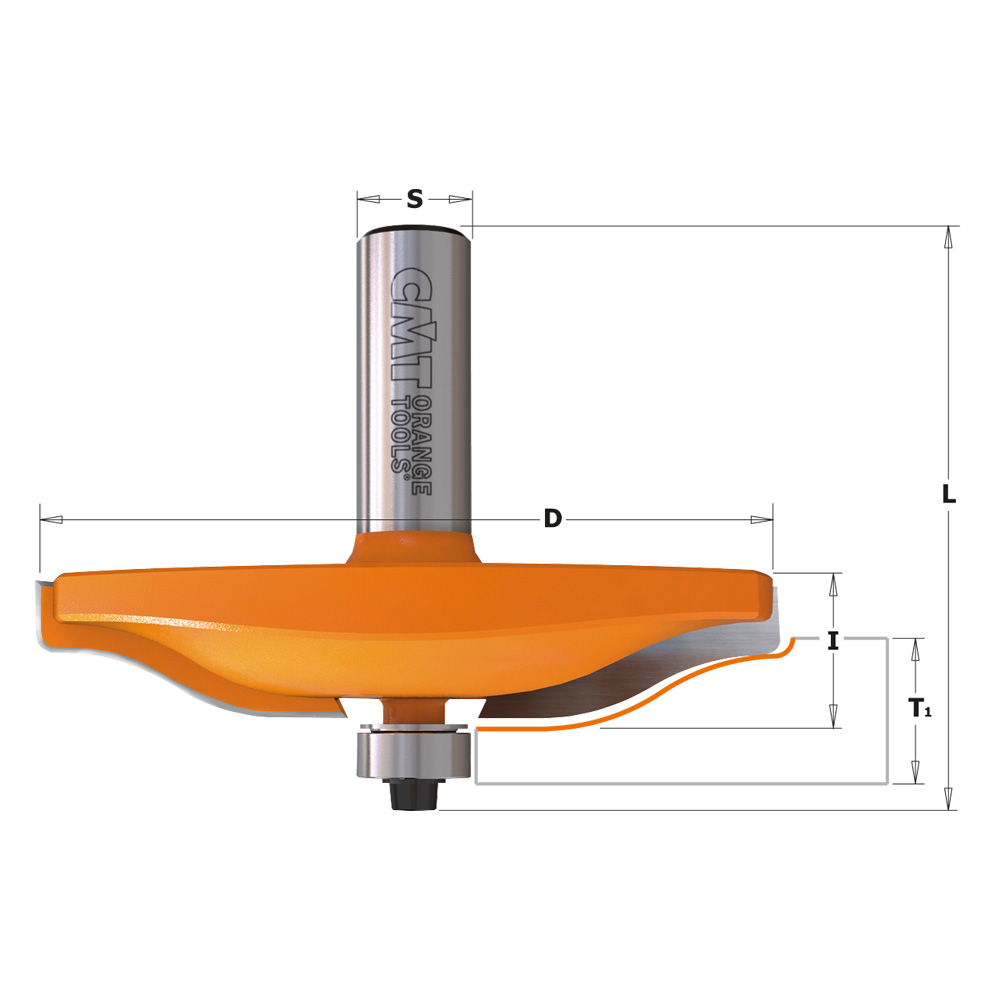

| Item Code | Profile no. | D | I | L | T | S | Z | MAT | RH-LH |
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
890.512.11
|
B3 | 47.63 | 9.5 | 58.1 | 12.7 ~ 15 | 12.7 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.011.11
|
A3 | 47.63 | 9.5 | 58.1 | 12.7 ~ 15 | 8 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.012.11
|
B3 | 47.63 | 9.5 | 58.1 | 12.7 ~ 15 | 8 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.501.11
|
A | 82.55 | 15 | 63.8 | 15 ~ 18 | 12 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.502.11
|
B | 82.55 | 15 | 63.8 | 15 ~ 18 | 12 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.503.11
|
C | 82.55 | 15 | 64.6 | 18 | 12 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
890.501.11
|
A | 82.55 | 15 | 63.8 | 15 ~ 18 | 12.7 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
890.502.11
|
B | 82.55 | 15 | 63.8 | 15 ~ 18 | 12.7 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
890.503.11
|
C | 82.55 | 15 | 64.6 | 15 ~ 18 | 12.7 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
890.504.11
|
A2 | 89 | 15 | 64.6 | 18 ~ 20 | 12.7 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
890.505.11
|
B2 | 89 | 15 | 64.6 | 18 ~ 20 | 12.7 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
890.506.11
|
C2 | 89 | 15 | 64.6 | 18 ~ 20 | 12.7 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
890.507.11
|
D | 89 | 15 | 64.6 | 18mm ~ 20mm | 12.7 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.504.11
|
A2 | 89 | 15 | 64.6 | 18 ~ 20 | 12 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.505.11
|
B2 | 89 | 15 | 64.6 | 18 ~ 20 | 12 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.506.11
|
C2 | 89 | 15 | 64.6 | 18 ~ 20 | 12 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
990.507.11
|
D | 89 | 15 | 64.6 | 15 ~ 20 | 12 | 2 | HW | RH | 990.423.00 | 791.003.00 | 990.058.00 | 991.057.00 |
