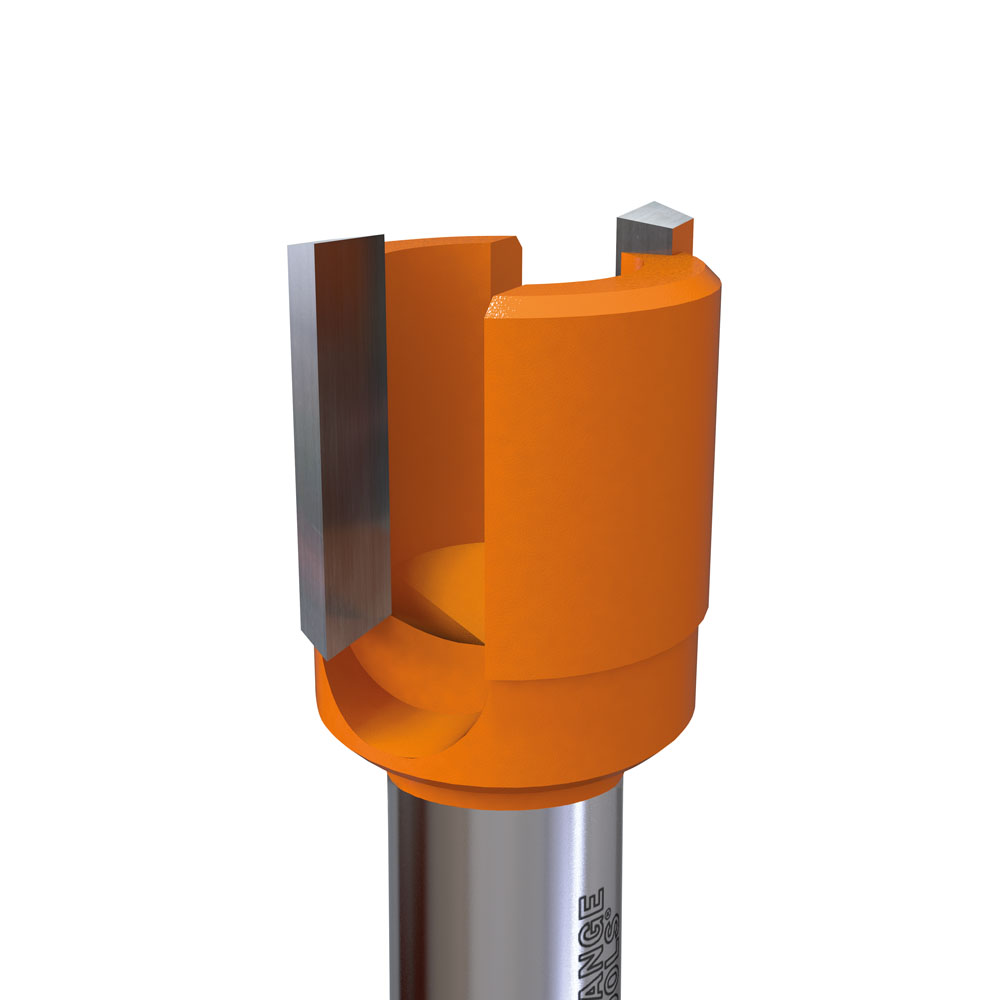

Hinge recesser router bits
7/902

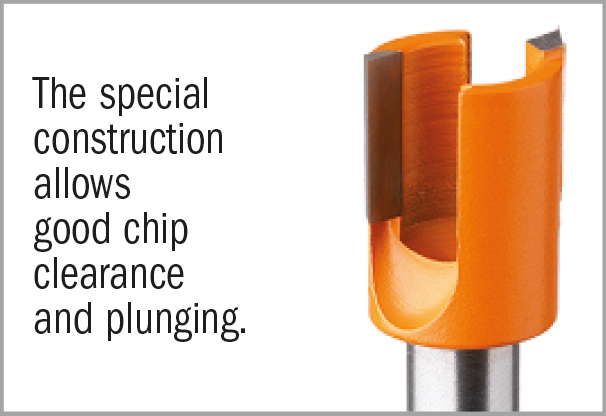

CMT hinge recesser bits are ideal for shallow lateral routing cuts such as recessing hinges.
Shop tips: corners will require final square with a hand or a corner chisel.
Variations
Filter
| Item Code | D | I | L | S | Z | MAT | RH-LH |
|---|---|---|---|---|---|---|---|
|
702.120.11
|
12 | 12 | 38 | 6 | 2 | HW | RH |
|
902.120.11
|
12 | 12 | 38 | 8 | 2 | HW | RH |
|
902.130.11
|
13 | 12 | 38 | 8 | 2 | HW | RH |
|
702.130.11
|
13 | 12 | 38 | 6 | 2 | HW | RH |
|
702.140.11
|
14 | 12 | 38 | 6 | 2 | HW | RH |
|
902.140.11
|
14 | 12 | 38 | 8 | 2 | HW | RH |
|
902.150.11
|
15 | 12 | 38 | 8 | 2 | HW | RH |
|
702.150.11
|
15 | 12 | 38 | 6 | 2 | HW | RH |
|
702.160.11
|
16 | 12 | 38 | 6 | 2 | HW | RH |
|
902.160.11
|
16 | 12 | 38 | 8 | 2 | HW | RH |
|
902.180.11
|
18 | 12 | 38 | 8 | 2 | HW | RH |
|
702.180.11
|
18 | 12 | 38 | 6 | 2 | HW | RH |
|
702.200.11
|
20 | 11 | 38 | 6 | 2 | HW | RH |
|
902.200.11
|
20 | 11 | 38 | 8 | 2 | HW | RH |
|
902.220.11
|
22 | 11 | 38 | 8 | 2 | HW | RH |
|
702.220.11
|
22 | 11 | 38 | 6 | 2 | HW | RH |
|
702.230.11
|
23 | 11 | 38 | 6 | 2 | HW | RH |
|
902.230.11
|
23 | 11 | 38 | 8 | 2 | HW | RH |
|
902.240.11
|
24 | 11 | 38 | 8 | 2 | HW | RH |
|
702.240.11
|
24 | 11 | 38 | 6 | 2 | HW | RH |
|
702.250.11
|
25 | 11 | 38 | 6 | 2 | HW | RH |
|
902.250.11
|
25 | 11 | 38 | 8 | 2 | HW | RH |
