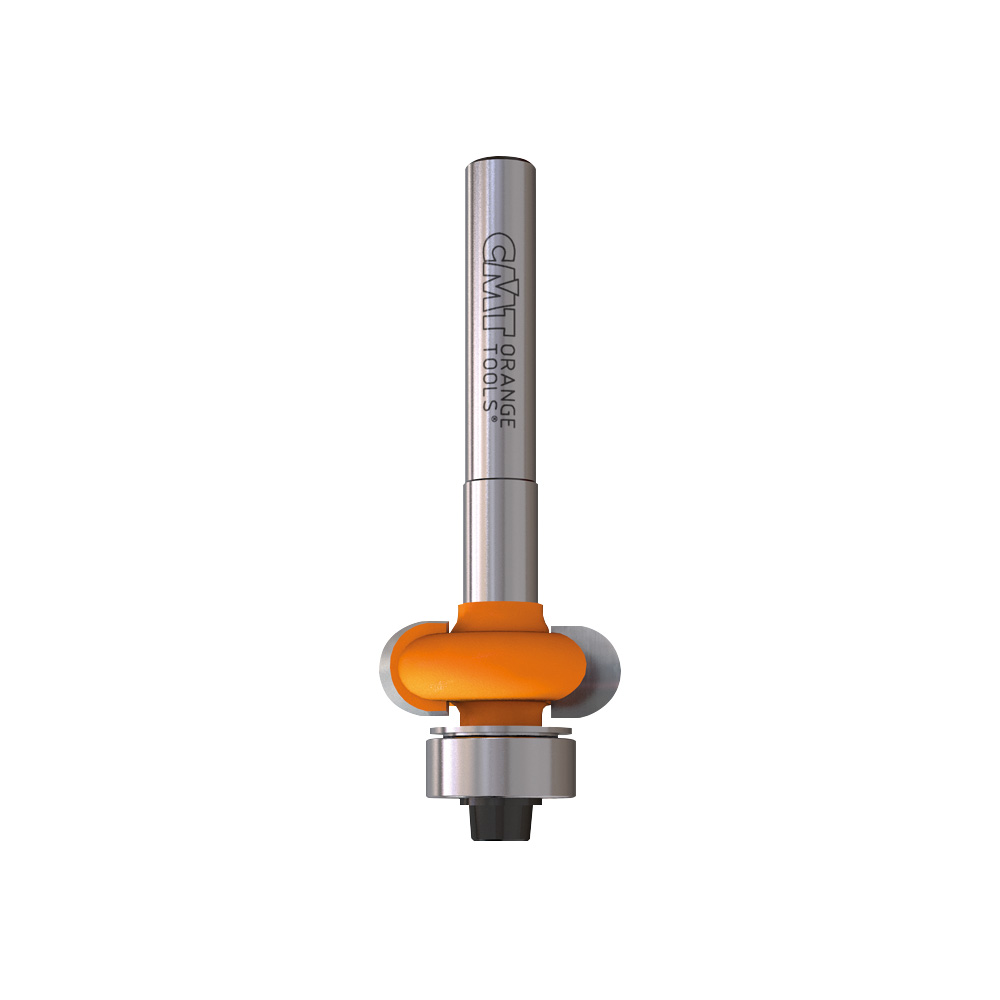

Edge-Fluting Bits
7/862

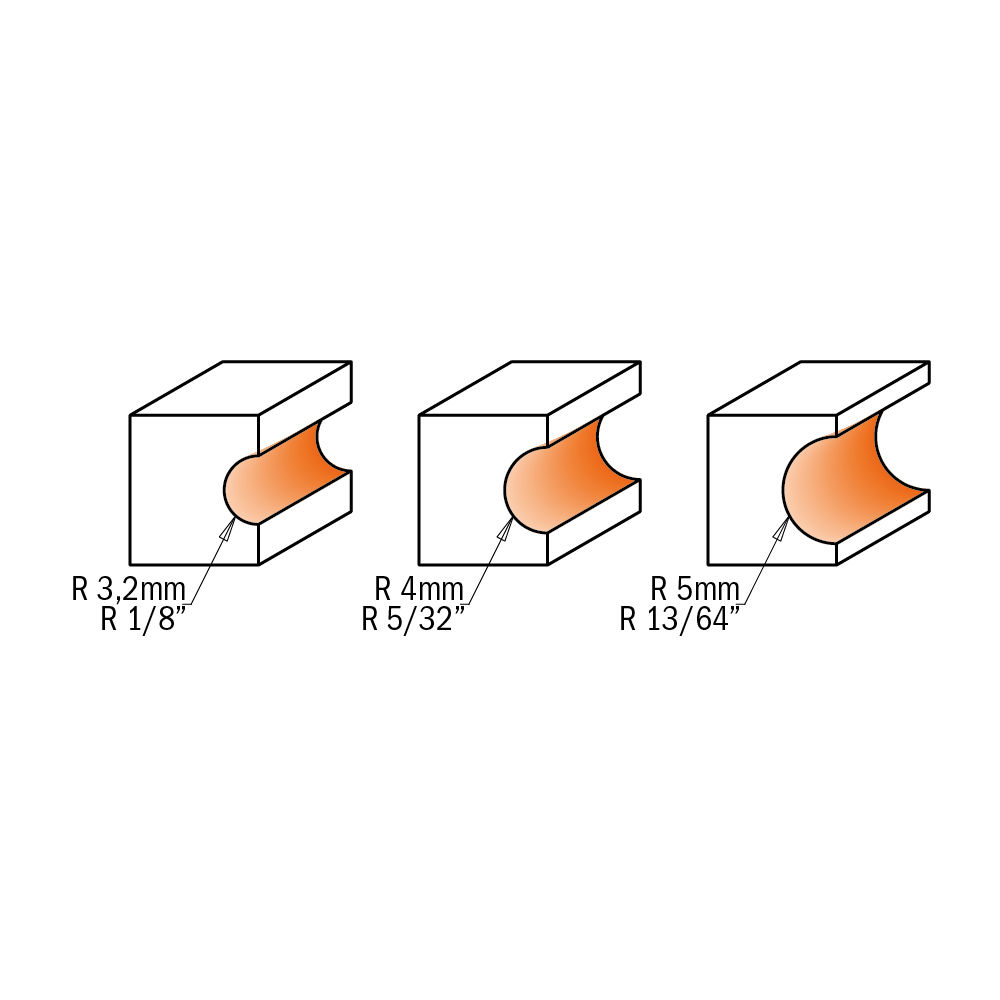

The edge-fluting bearing guided bits are quick to set up and can be used for curved screens, small radius grooves, doors etc.
No side fence is required.
Use in a handheld or table-mounted router.
Variations
Filter

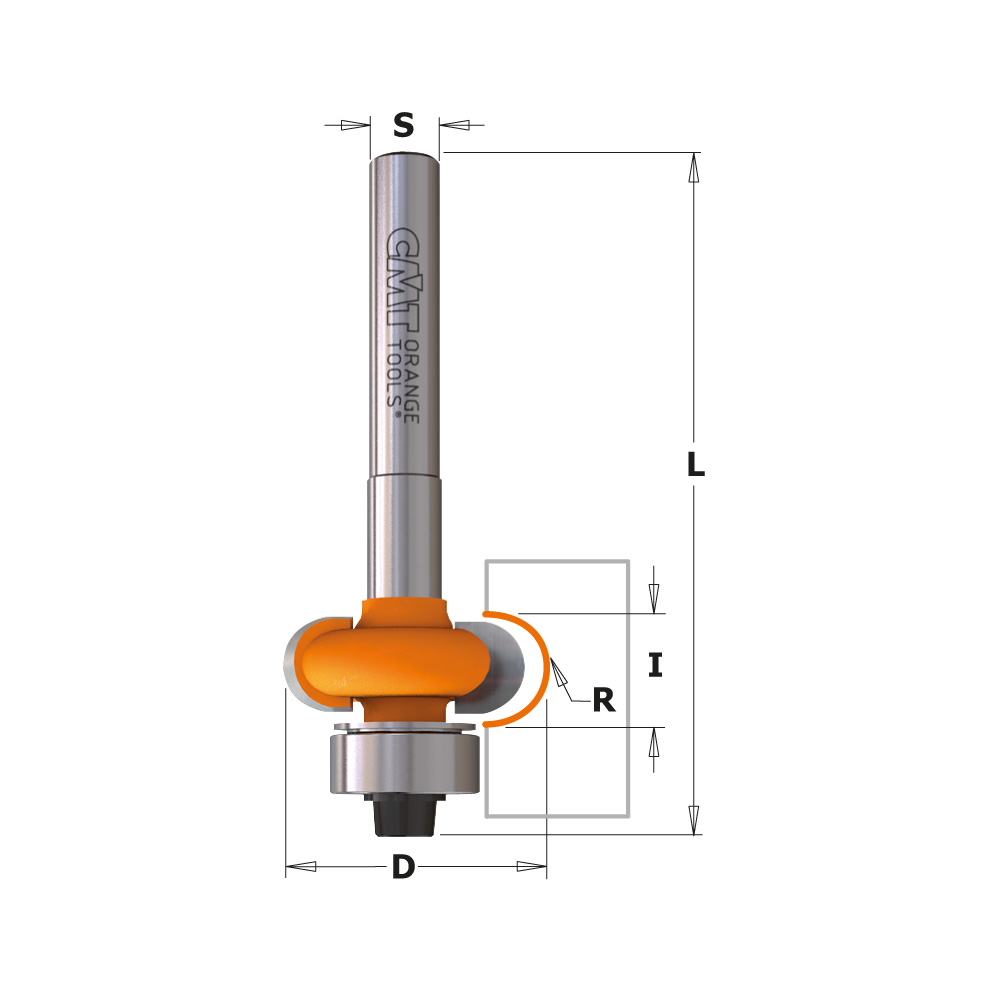

| Item Code | R | D | I | L | S | Z | MAT | RH-LH |
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
762.032.11
|
3.18 | 19.05 | 6.4 | 57 | 6 | 2 | HW | RH | 791.010.00 | 990.423.00 | 541.001.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
862.032.11
|
3.18 | 19.05 | 6.35 | 57 | 6.35 | 2 | HW | RH | 791.010.00 | 990.423.00 | 541.001.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
862.040.11
|
4 | 20.64 | 8 | 57 | 6.35 | 2 | HW | RH | 791.010.00 | 990.423.00 | 541.001.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
762.040.11
|
4 | 20.7 | 8 | 57 | 6 | 2 | HW | RH | 791.010.00 | 990.423.00 | 541.001.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
762.050.11
|
5 | 22.7 | 10 | 57 | 6 | 2 | HW | RH | 791.010.00 | 990.423.00 | 541.001.00 | 791.003.00 | 990.058.00 | 991.057.00 |
|
862.050.11
|
5 | 22.75 | 10 | 57 | 6.35 | 2 | HW | RH | 791.010.00 | 990.423.00 | 541.001.00 | 791.003.00 | 990.058.00 | 991.057.00 |
