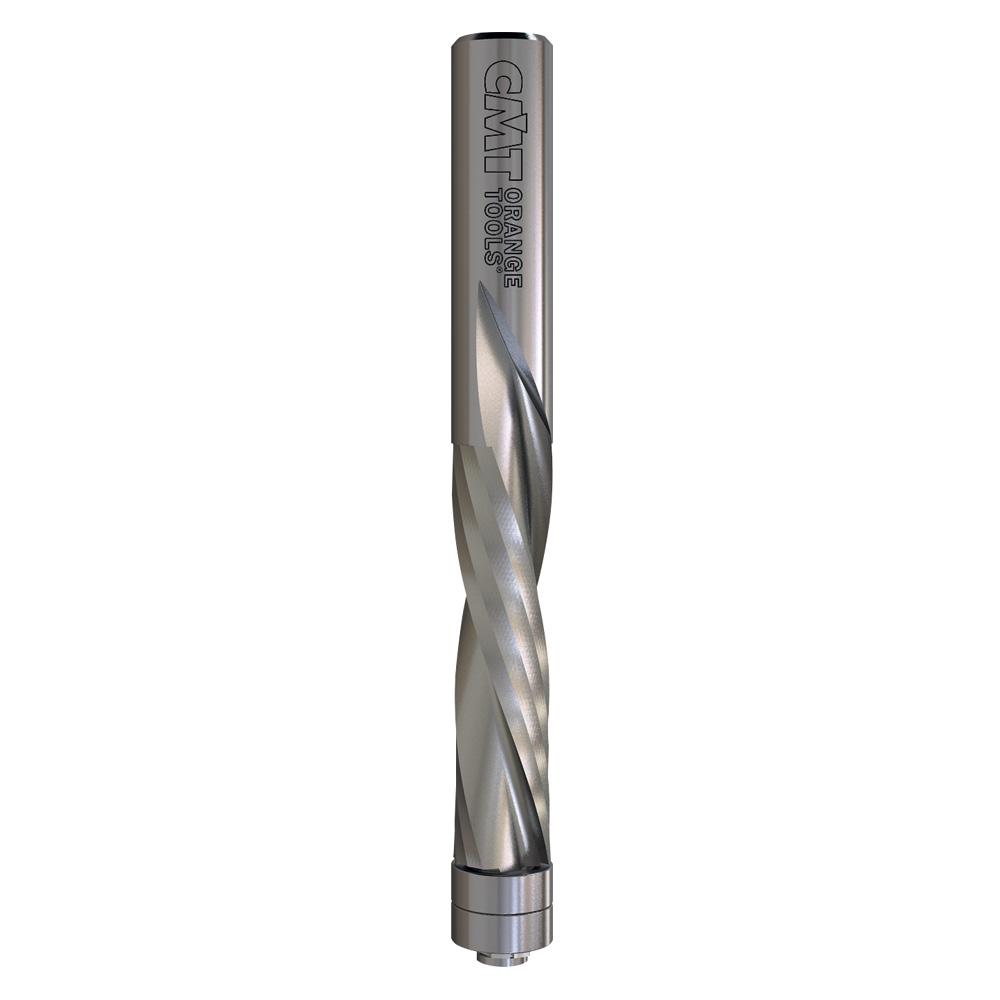

Double-bearing spiral flush trim router bits
190/191/192B
CMT solid carbide spiral flush trim bits are composed of a special super-micrograin formulation increasing hardness with a higher transverse rupture point.

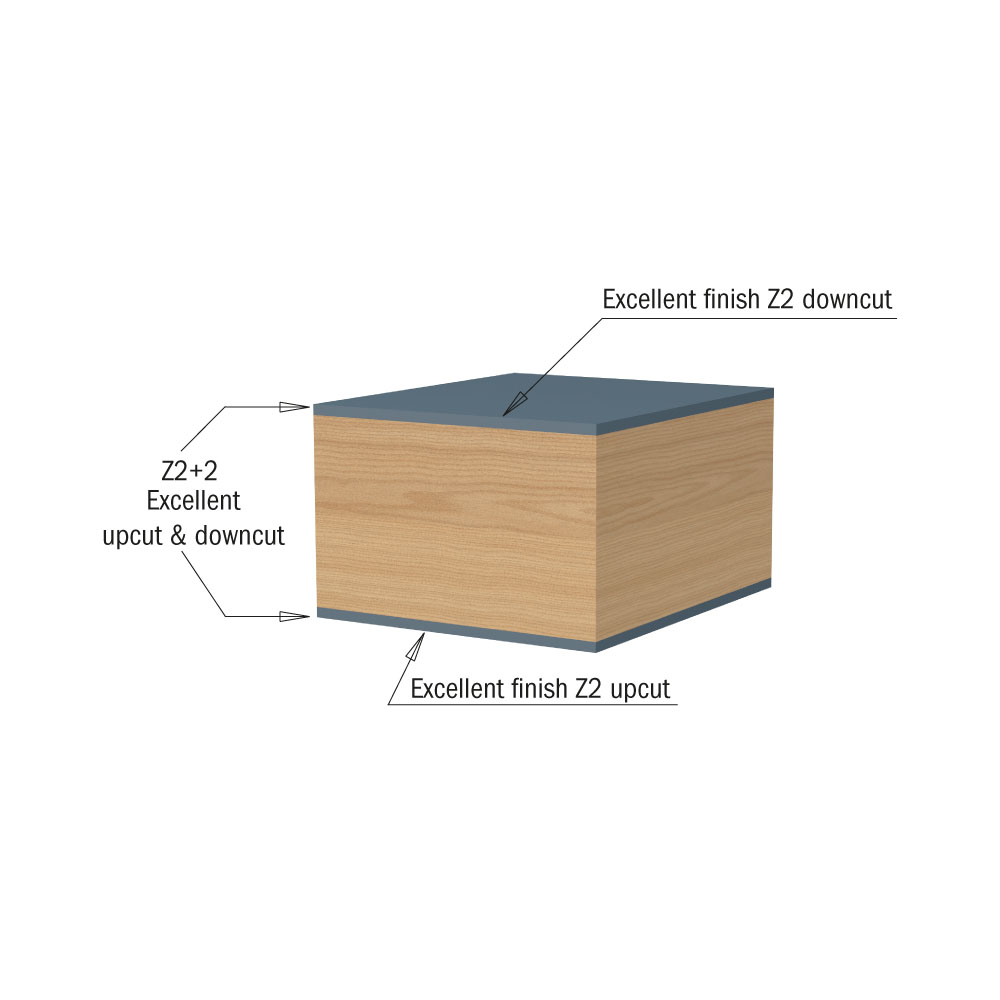

Combined with a spiral cutting angle, CMT solid carbide spiral flush trim bits equipped with a double bearing, allow cabinet makers to shear wood and wood products cleanly, providing more efficient chip ejection than standard flush trim bits.
In production settings, this means these bits will run cooler, stay sharper, last longer and increase shop productivity.
Combined with a spiral cutting angle, CMT solid carbide spiral flush trim bits equipped with a double bearing, allow cabinet makers to shear wood and wood products cleanly, providing more efficient chip ejection than standard flush trim bits.
In production settings, this means these bits will run cooler, stay sharper, last longer and increase shop productivity.
Variations
Filter

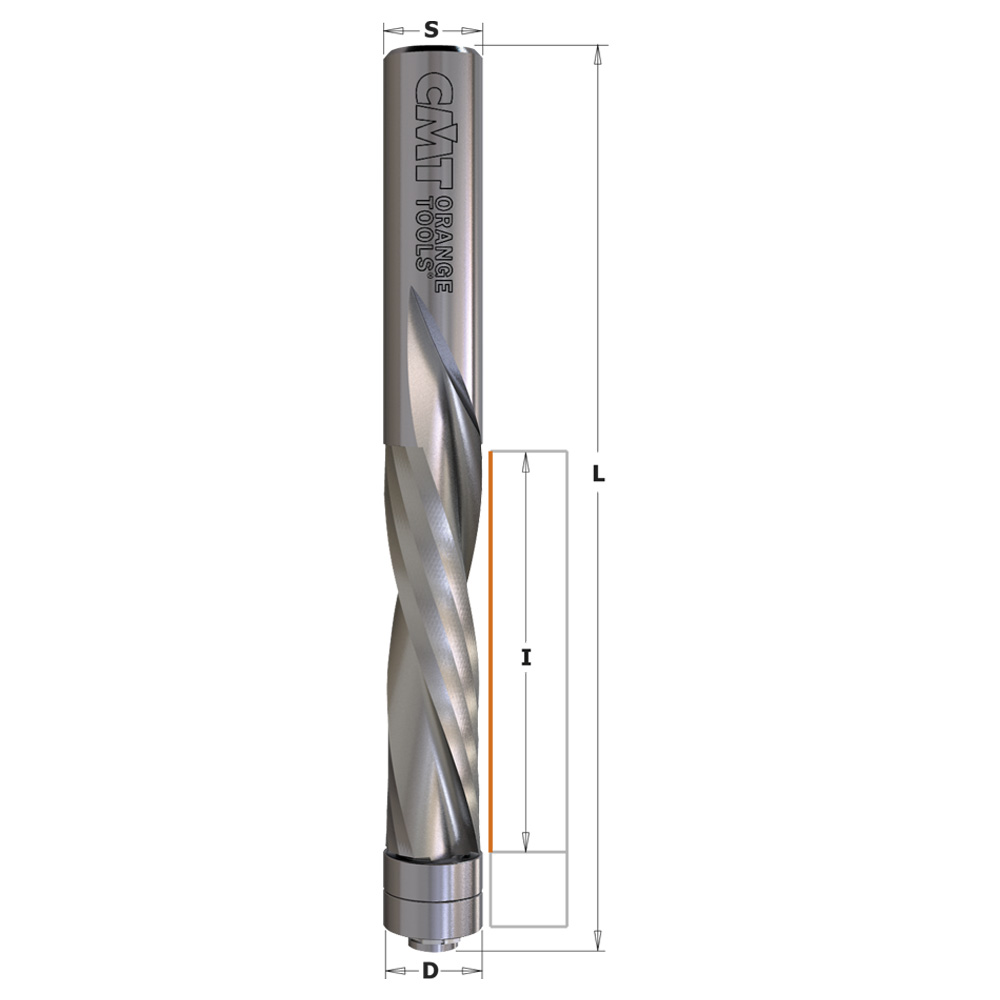

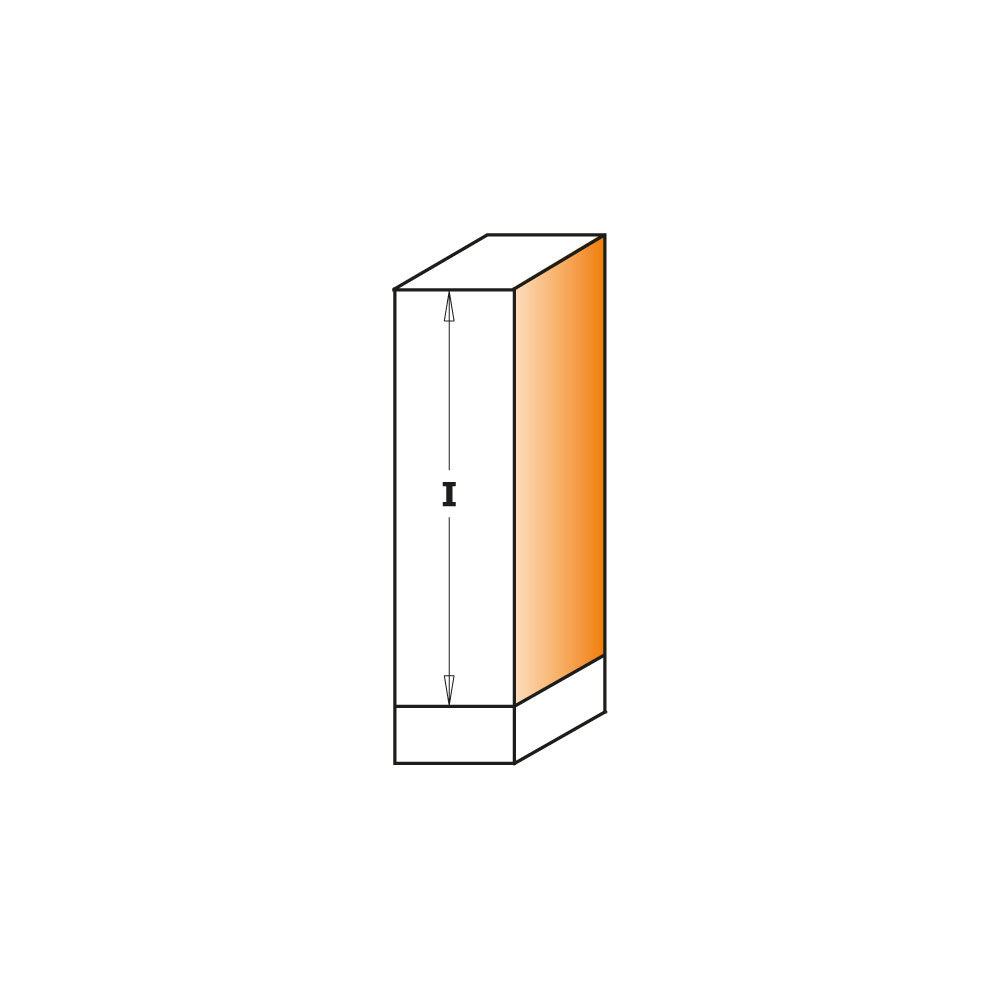

| Item Code | Description | I | D | L | S | Z | MAT | RH-LH |
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
191.008.11B
|
Upcut | 25,4 | 6,35 | 76 | 6,35 | 2 | HWM | RH | 541.009.00 | 791.035.00 | ||
|
191.064.11B
|
Upcut | 25,4 | 6,35 | 76 | 6 | 2 | HWM | RH | 541.009.00 | 791.035.00 | ||
|
192.008.11B
|
Downcut | 25,4 | 6,35 | 76 | 6,35 | 2 | HWM | RH | 541.009.00 | 791.035.00 | ||
|
192.127.11B
|
Downcut | 50,8 | 12,7 | 114 | 12 | 2 | HWM | RH | 791.010.00 | 541.301.00 | ||
|
192.505.11B
|
Downcut | 31,7 | 12,7 | 89 | 12,7 | 2 | HWM | RH | 791.010.00 | 541.301.00 | ||
|
192.507.11B
|
Downcut | 50,8 | 12,7 | 114 | 12,7 | 2 | HWM | RH | 791.010.00 | 541.301.00 | ||
|
191.127.11B
|
Upcut | 50,8 | 12,7 | 114 | 12 | 2 | HWM | RH | 791.010.00 | 541.301.00 | ||
|
191.505.11B
|
Upcut | 31,7 | 12,7 | 89 | 12,7 | 2 | HWM | RH | 791.010.00 | 541.301.00 | ||
|
191.507.11B
|
Upcut | 50,8 | 12,7 | 114 | 12,7 | 2 | HWM | RH | 791.010.00 | 541.301.00 | ||
|
190.127.11B
|
Upcut & downcut | 47,6 | 12,7 | 114 | 12 | 2 + 2 | HWM | RH | 791.010.00 | 541.301.00 | ||
|
190.508.11B
|
Upcut & downcut | 47,6 | 12,7 | 114,3 | 12,7 | 2 + 2 | HWM | RH | 791.010.00 | 541.301.00 |
