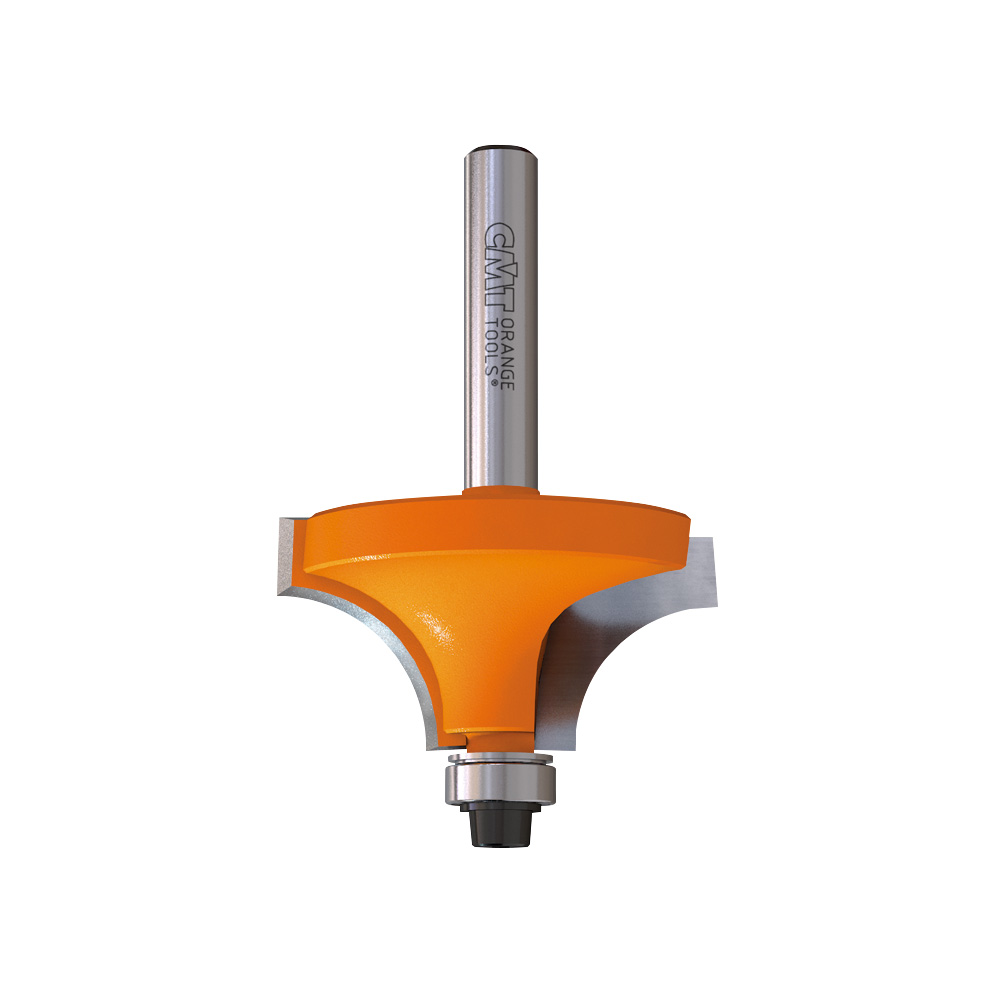

Beading router bits
7/8/939

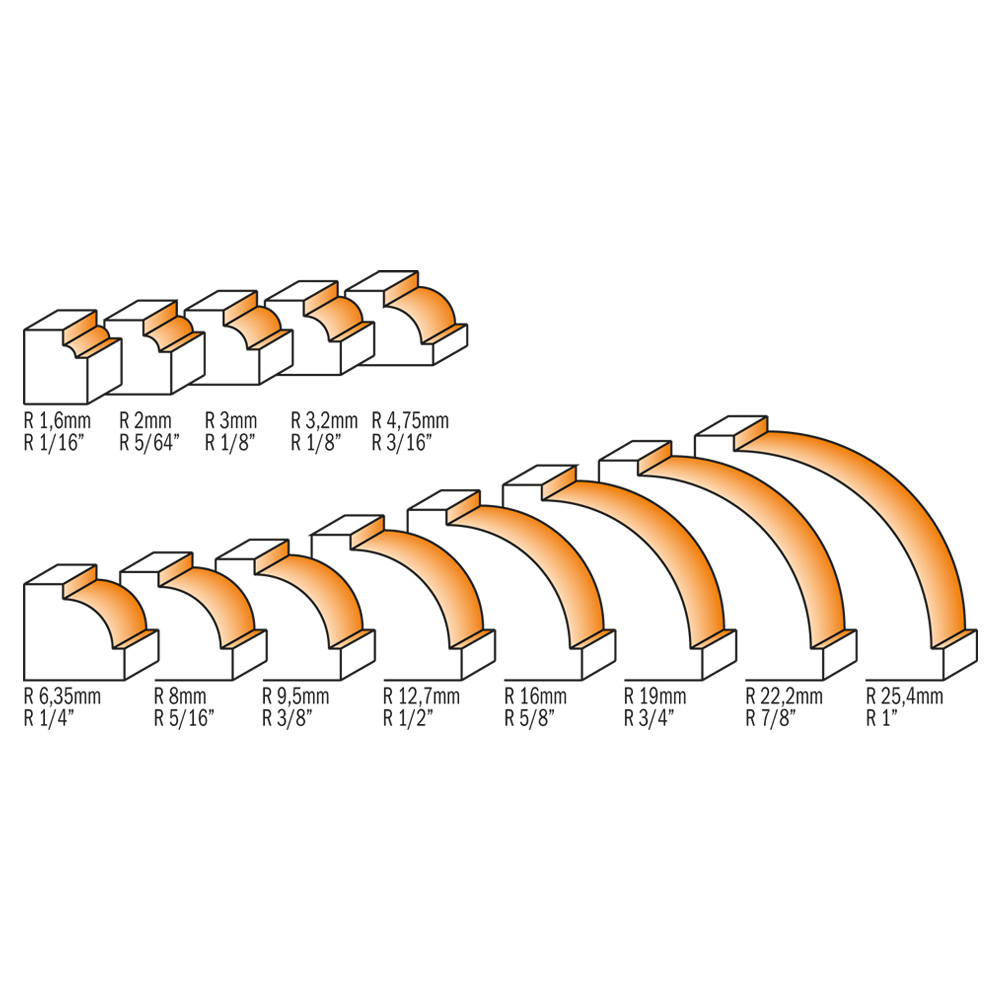

Beading bits are similar to the roundover profile, but a smaller bearing produces a delicate inset at the base of
the cut, giving you an extra decorative option. For a beading profile (code 7/8/939) simply change the bearing (791.002.00) on your roundover bits (code 7/8/938).
Bits featuring 25,4mm (1") radius are to be used only on router table.
Variations
Filter

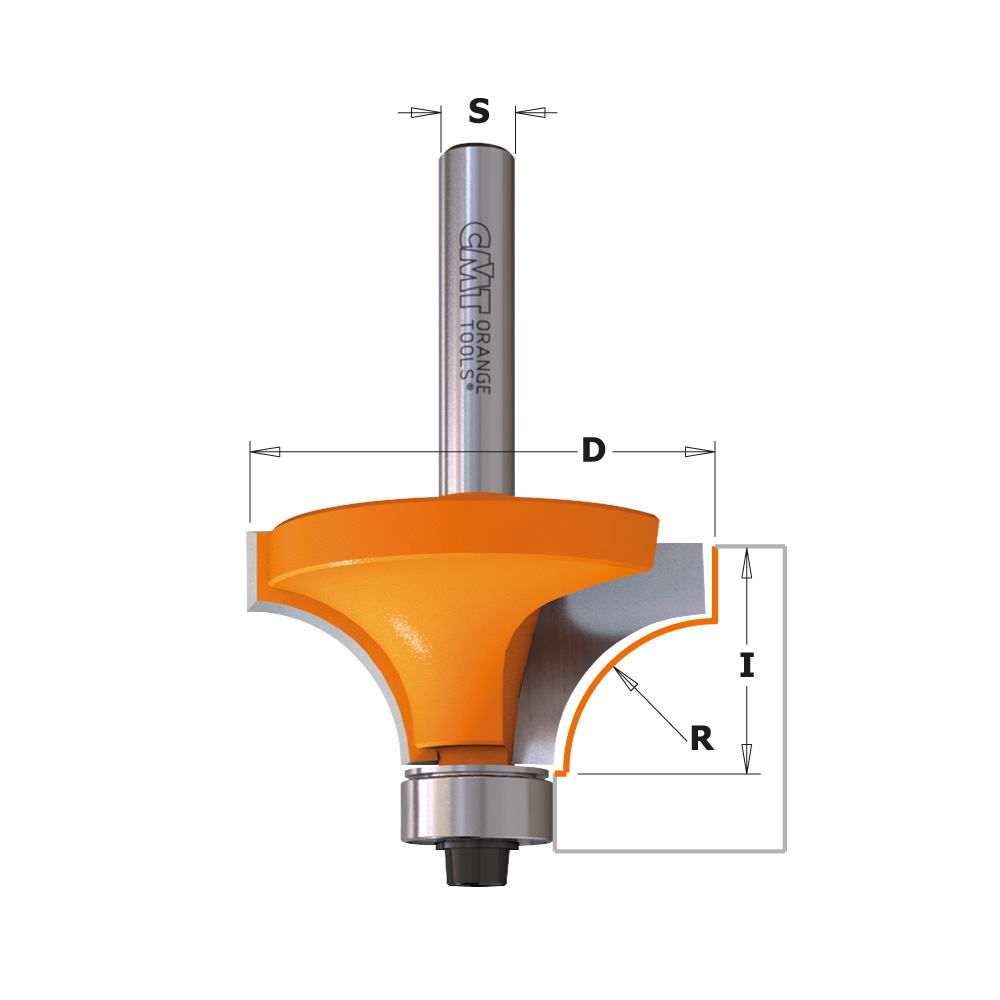

| Item Code | Description | S | R | L | I | D |
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
839.160.11
|
6.35 | 1.6 | 52.5 | 12.7 | 15.88 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
739.160.11
|
6 | 1.6 | 52.5 | 12.7 | 15.88 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.160.11
|
8 | 1.6 | 52.5 | 12.7 | 15.88 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.167.11
|
8 | 2 | 52.6 | 12.7 | 16.7 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.187.11
|
8 | 3 | 52.6 | 12.7 | 18.7 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.190.11
|
8 | 3.2 | 52.5 | 12.7 | 19.05 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
739.190.11
|
6 | 3.2 | 52.5 | 12.7 | 19.05 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.190.11
|
6.35 | 3.2 | 52.5 | 12.7 | 19.05 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.222.11
|
6.35 | 4.8 | 52.5 | 12.7 | 22.23 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
739.222.11
|
6 | 4.8 | 52.5 | 12.7 | 22.23 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.222.11
|
8 | 4.8 | 52.5 | 12.7 | 22.23 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.254.11
|
8 | 6.4 | 52.5 | 12.7 | 25.4 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.754.11
|
12 | 6.35 | 59 | 12.7 | 25.4 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
739.254.11
|
6 | 6.4 | 52.5 | 12.7 | 25.4 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.754.11
|
12.7 | 6.4 | 59 | 12.7 | 25.4 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.254.11
|
6.35 | 6.4 | 52.5 | 12.7 | 25.4 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.285.11
|
6.35 | 8 | 52.5 | 12.7 | 28.58 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
739.285.11
|
6 | 8 | 52.5 | 12.7 | 28.58 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.285.11
|
8 | 8 | 52.5 | 12.7 | 28.58 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.317.11
|
8 | 9.5 | 57.3 | 15.9 | 31.75 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.817.11
|
12 | 9.5 | 63.7 | 15.9 | 31.75 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
739.317.11
|
6 | 9.5 | 57.3 | 15.9 | 31.75 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.817.11
|
12.7 | 9.5 | 63.7 | 15.9 | 31.75 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.317.11
|
6.35 | 9.5 | 57.3 | 15.9 | 31.75 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.380.11
|
6.35 | 12.7 | 59 | 19 | 38.1 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.880.11
|
12.7 | 12.7 | 65 | 19 | 38.1 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
739.380.11
|
6 | 12.7 | 59 | 19 | 38.1 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.880.11
|
12 | 12.7 | 65 | 19 | 38.1 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.380.11
|
8 | 12.7 | 59 | 19 | 38.1 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.445.11
|
8 | 16 | 62 | 22.2 | 44.45 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.945.11
|
12 | 16 | 68 | 22.2 | 44.45 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.945.11
|
12.7 | 15.9 | 68 | 22.2 | 44.45 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.445.11
|
6.35 | 15.9 | 62 | 22.2 | 44.45 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.990.11
|
12.7 | 19.1 | 71.5 | 25.4 | 50.8 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.990.11
|
12 | 19.1 | 71.5 | 25.4 | 50.8 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
939.991.11
|
12 | 22.22 | 75 | 28.6 | 57.15 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.991.11
|
12.7 | 22.2 | 75 | 28.6 | 57.15 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 | |
|
839.992.11
|
For use on router tables only | 12.7 | 25.4 | 79.5 | 33.3 | 63.5 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 |
|
939.992.11
|
*For use on router tables only. | 12 | 25.4 | 79.5 | 33.3 | 63.5 | 990.422.00 | 990.058.00 | 991.057.00 | 791.002.00 |
