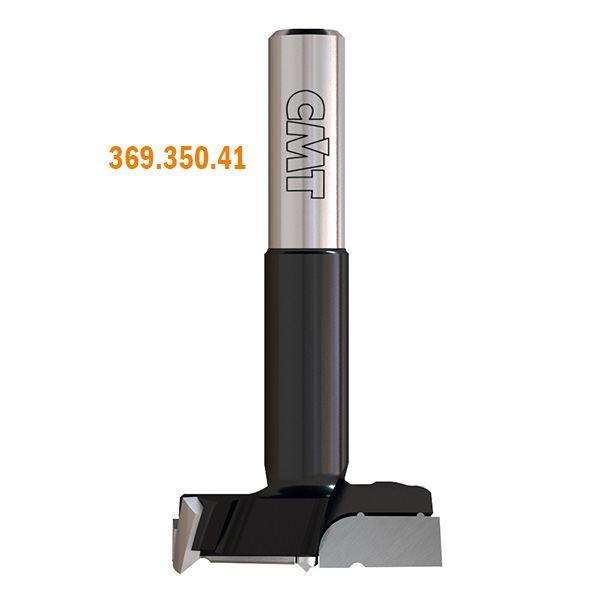

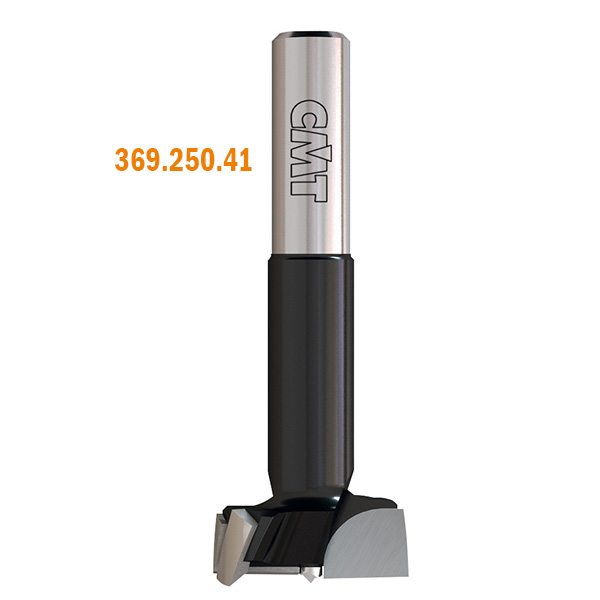

XTREME Hinge Boring Bits, S=10mm - L=70mm
369 X-TREME
TECHNICAL DETAILS:
• Super-strength steel.
• Cutter portion coated with orange or black P.T.F.E.

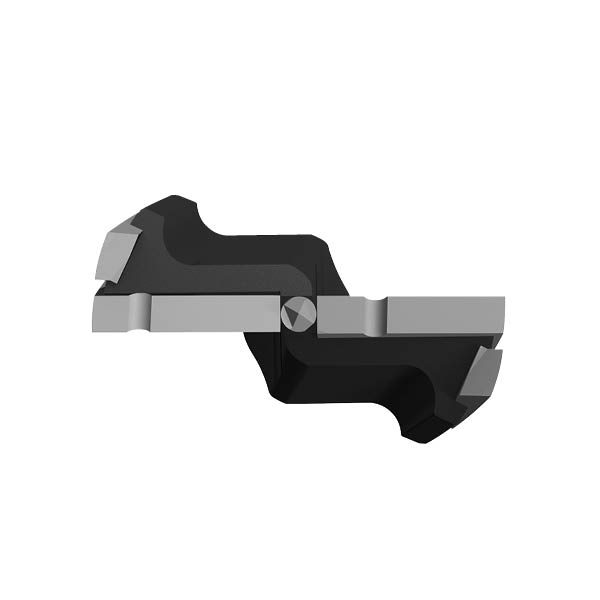

• HW head with precision balanced centre point.
• 2 HW precision ground cutting edges [Z2].
• 2 negatively ground spurs [V2].
• Parallel shank with driving flat and length adjusting screw.
317.350.41/42 - with chipbreaker.
Details
Ideal for hinges.
Use on boring machines equipped with adapters or chucks.
Use for drilling accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.
Use on boring machines equipped with adapters or chucks.
Use for drilling accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.
New construction with 0,8mm centre point.
Variations
Filter

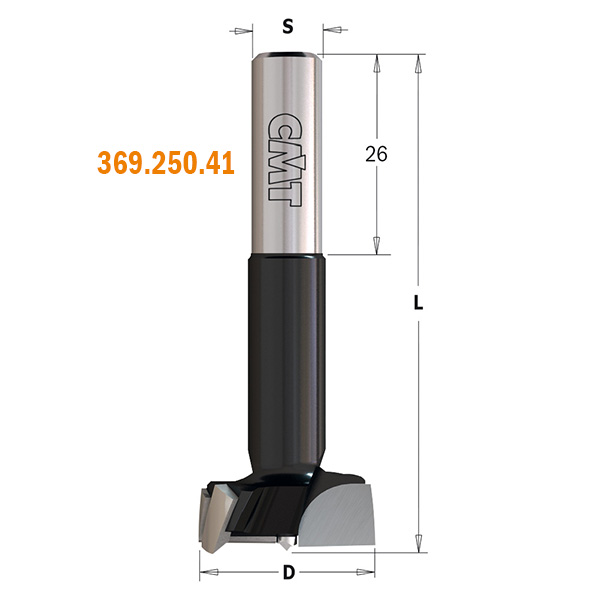

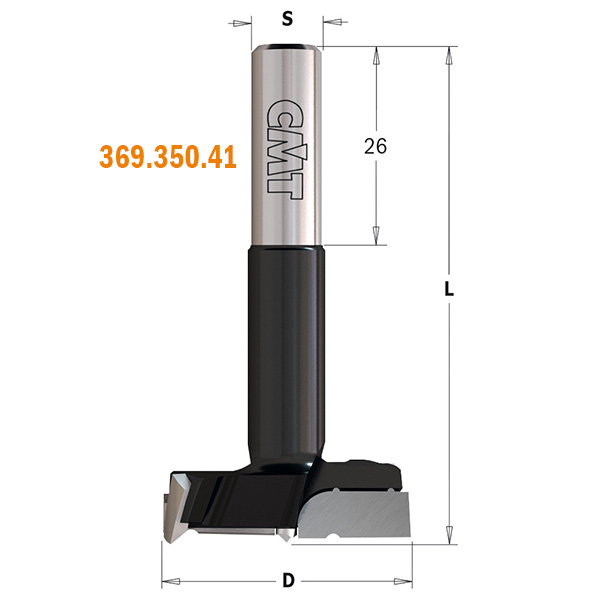

| Item Code | D | S | L | RH-LH |
|
|
|---|---|---|---|---|---|---|
|
369.150.41
|
15 | 10x26 | 70 | RH | 990.003.00 | 990.088.00 |
|
369.150.42
|
15 | 10x26 | 70 | LH | 990.003.00 | 990.088.00 |
|
369.180.41
|
18 | 10x26 | 70 | RH | 990.003.00 | 990.088.00 |
|
369.180.42
|
18 | 10x26 | 70 | LH | 990.003.00 | 990.088.00 |
|
369.200.41
|
20 | 10x26 | 70 | RH | 990.003.00 | 990.088.00 |
|
369.200.42
|
20 | 10x26 | 70 | LH | 990.003.00 | 990.088.00 |
|
369.250.41
|
25 | 10x26 | 70 | RH | 990.003.00 | 990.088.00 |
|
369.250.42
|
25 | 10x26 | 70 | LH | 990.003.00 | 990.088.00 |
|
369.260.41
|
26 | 10x26 | 70 | RH | 990.003.00 | 990.088.00 |
|
369.260.42
|
26 | 10x26 | 70 | LH | 990.003.00 | 990.088.00 |
|
369.350.41
|
35 | 10x26 | 70 | RH | 990.003.00 | 990.088.00 |
|
369.350.42
|
35 | 10x26 | 70 | LH | 990.003.00 | 990.088.00 |
