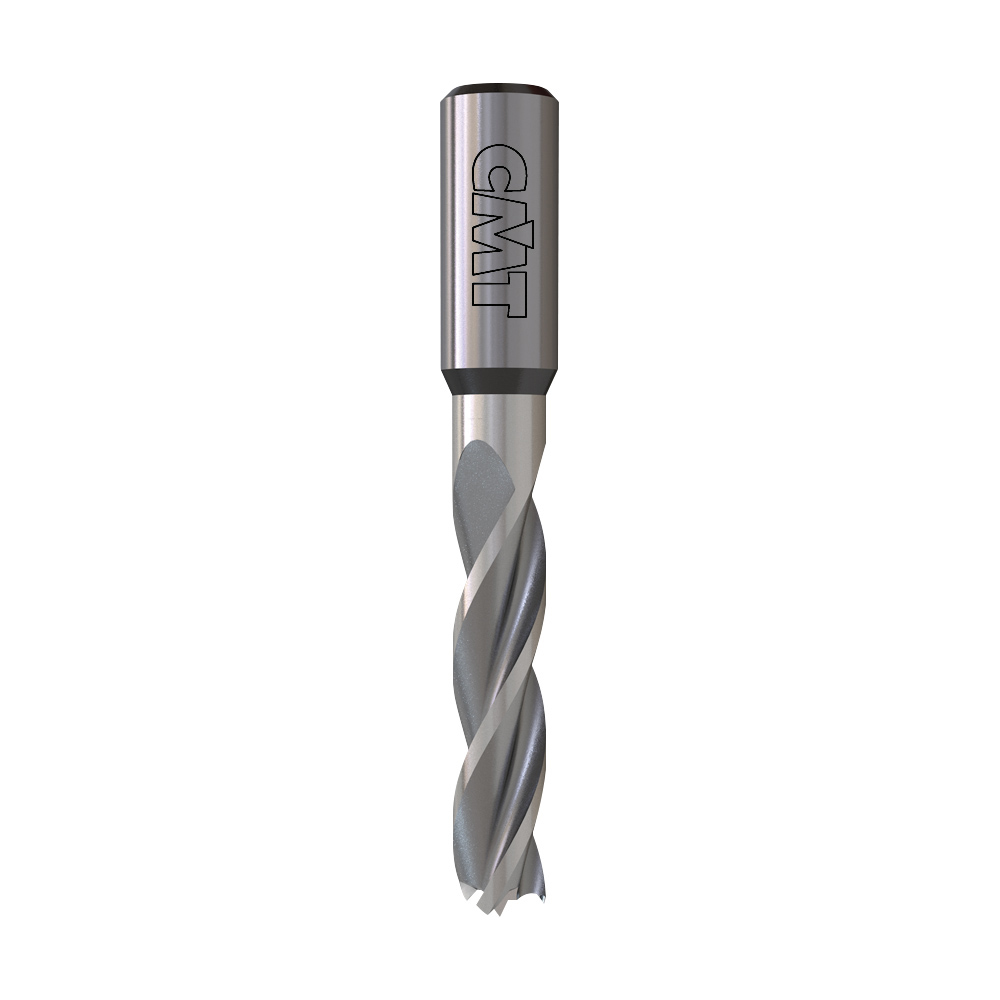

Solid Carbide Dowel Drills - LONG LIFE SHARPENING, S=10mm - L=70mm
311.31/32
Technical details:
Premium quality strength steel shank.
- High quality HWM body.

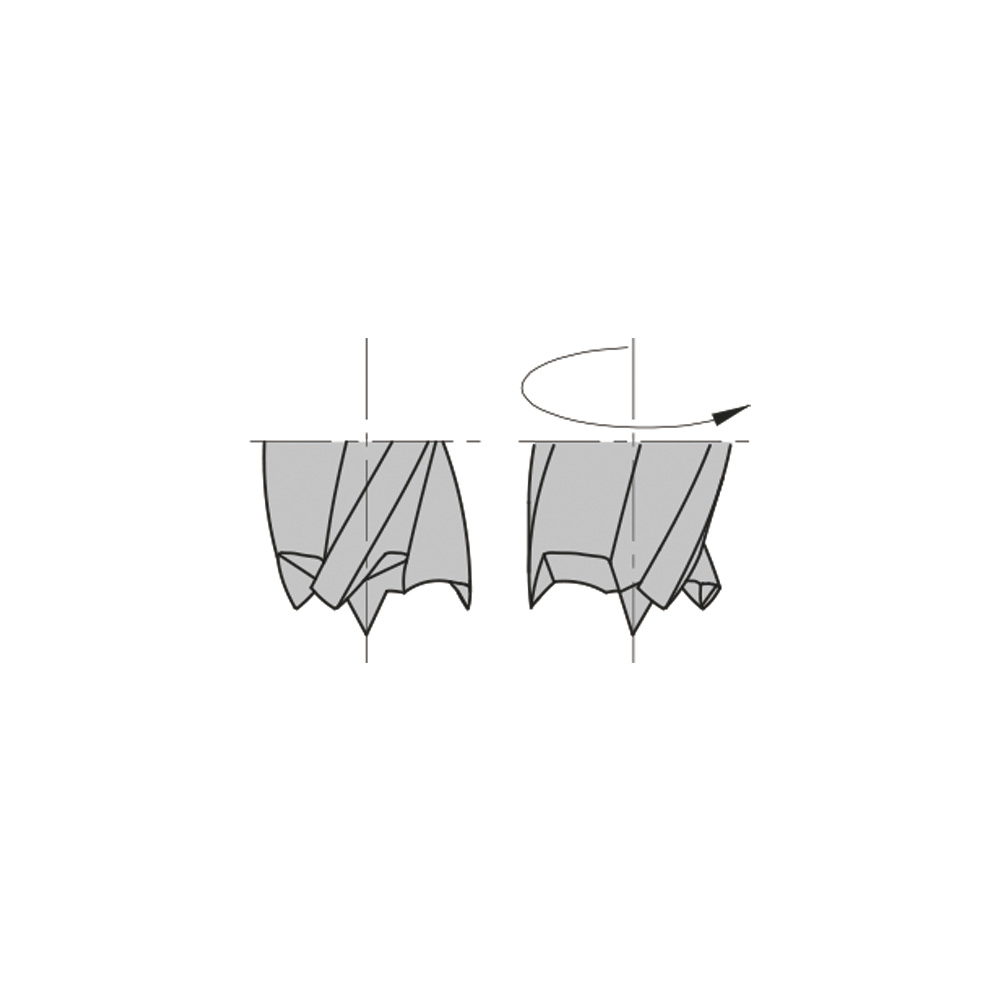

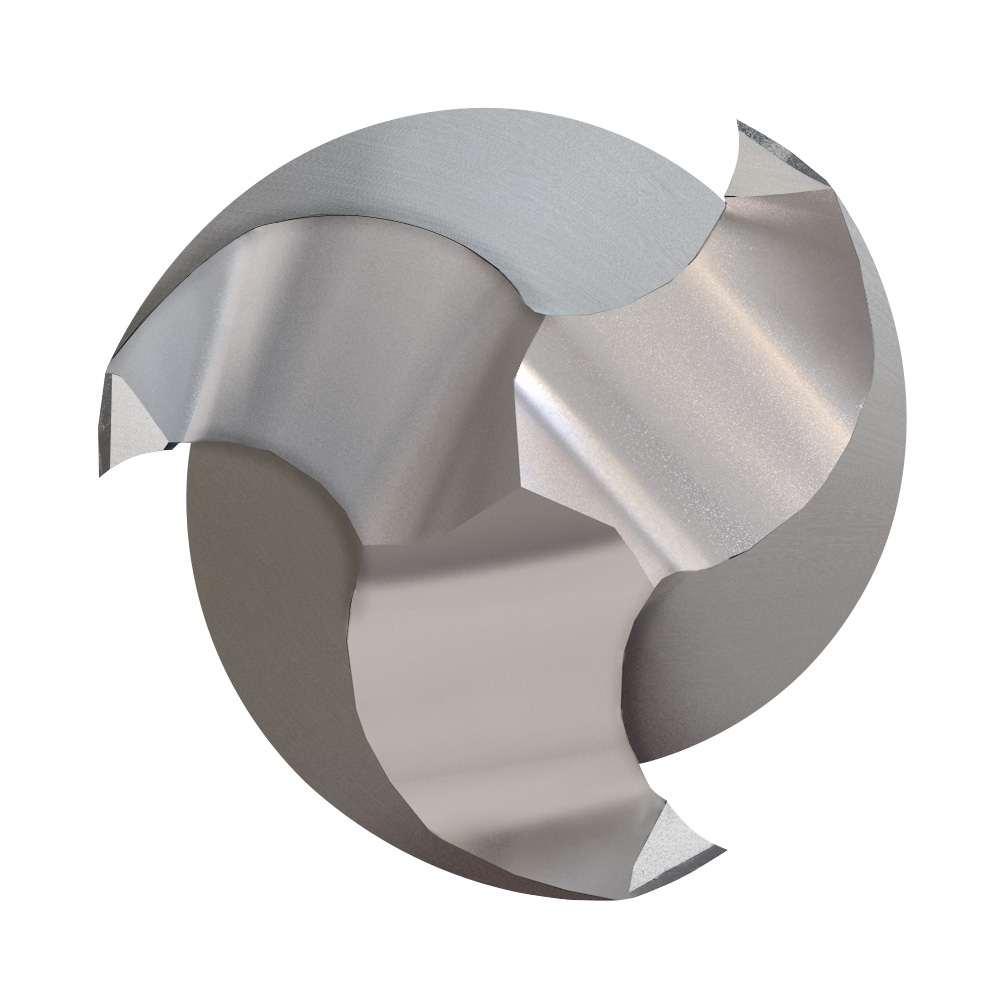

- 3 cutting edges [Z3] + 3 negatively ground spurs [V3].
- 3 spiral flutes.
- Balanced centre point.
- Parallel shank with driving flat and adjustable screw length.
APPLICATION:
for drilling blind holes in solid wood, wood derivatives and laminates.
For use on boring machine equipped with adaptors and/or chucks.
REMARK: special dimensions available on request.
CMT’s new high quality dowel drills guarantee excellent performance and extra-long life!
Variations
Filter

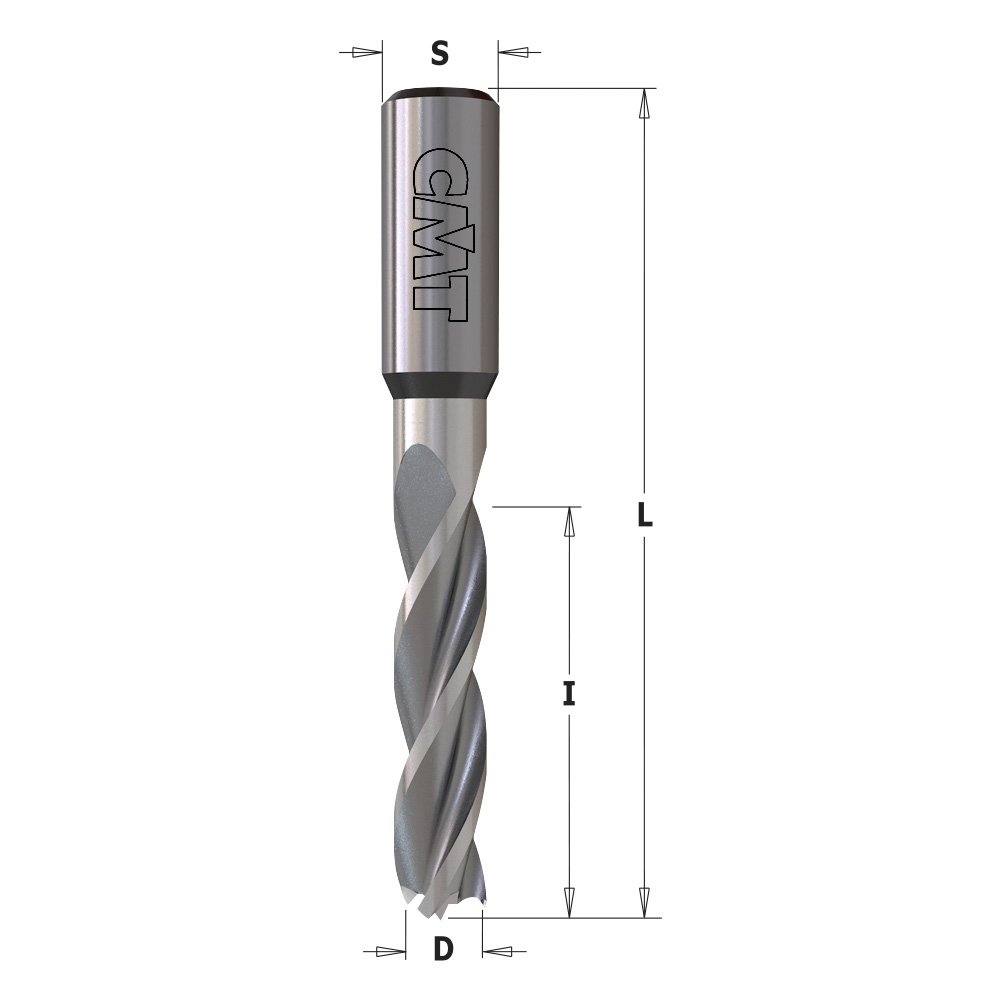

| Item Code | D | I | L | S | RH-LH |
|
|
|---|---|---|---|---|---|---|---|
|
311.050.31
|
5 | 30 | 70 | 10 | RH | 990.003.00 | 990.088.00 |
|
311.050.32
|
5 | 30 | 70 | 10 | LH | 990.003.00 | 990.088.00 |
|
311.080.31
|
8 | 35 | 70 | 10 | RH | 990.003.00 | 990.088.00 |
|
311.080.32
|
8 | 35 | 70 | 10 | LH | 990.003.00 | 990.088.00 |
