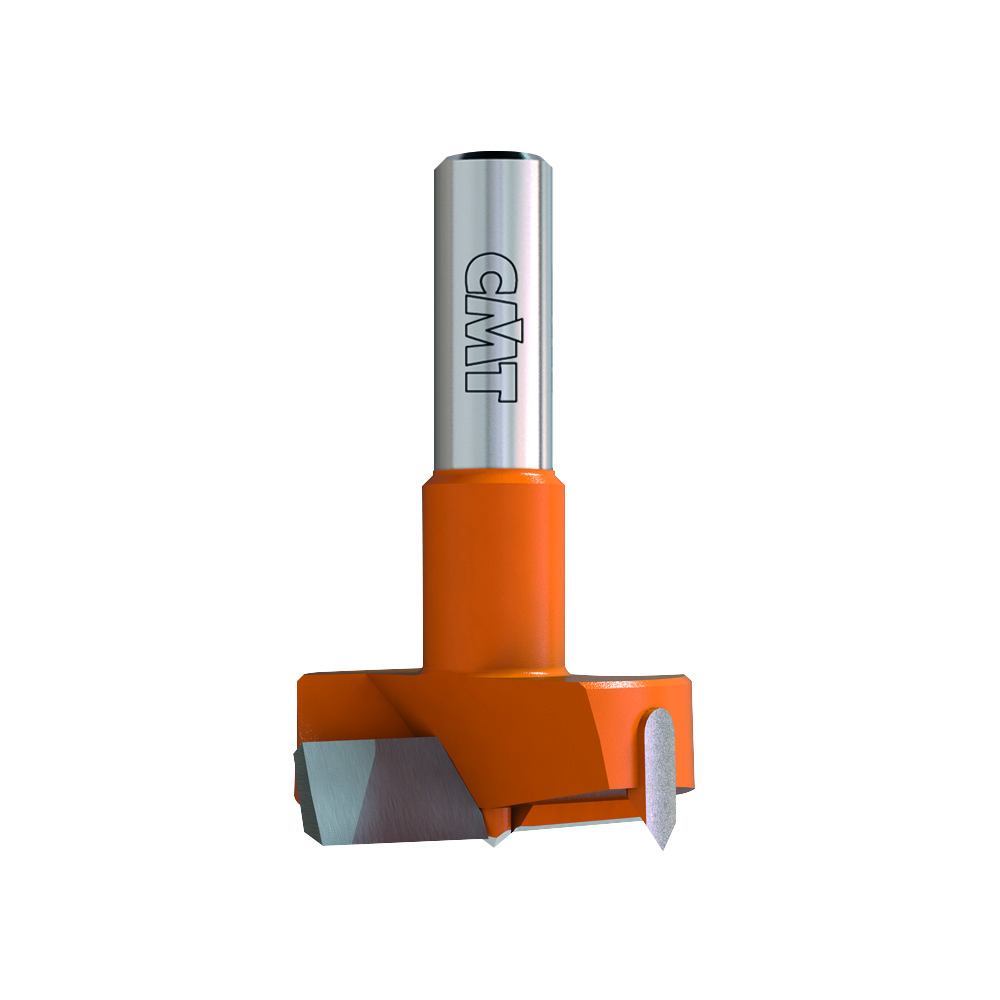

Hinge Boring Bits, S=10mm - L=57,5mm
317HW
TECHNICAL DETAILS:
• Super-strength steel.
• Cutter portion coated with orange or black P.T.F.E.
• HW head with precision balanced centre point.
• 2 HW precision ground cutting edges (Z2).
• 2 negatively ground spurs (V2).
• Parallel shank with driving flat and length adjusting screw.
Details
Ideal for hinges.
Use on boring machines equipped with adaptors or chucks.
Use for drilling accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.
Use on boring machines equipped with adaptors or chucks.
Use for drilling accurate and clean-cut blind holes in solid wood, wood composites, plastic and laminated materials.

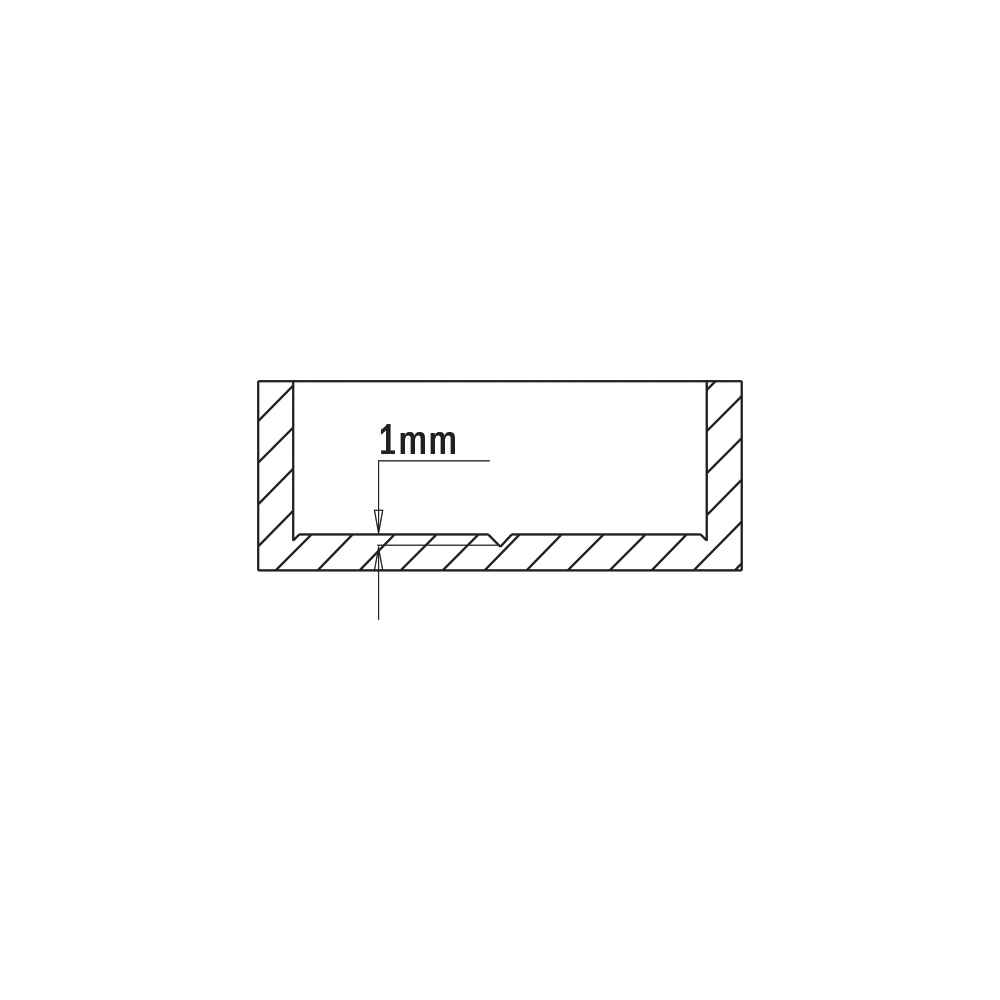

New construction with 1mm centre point.
Variations
Filter

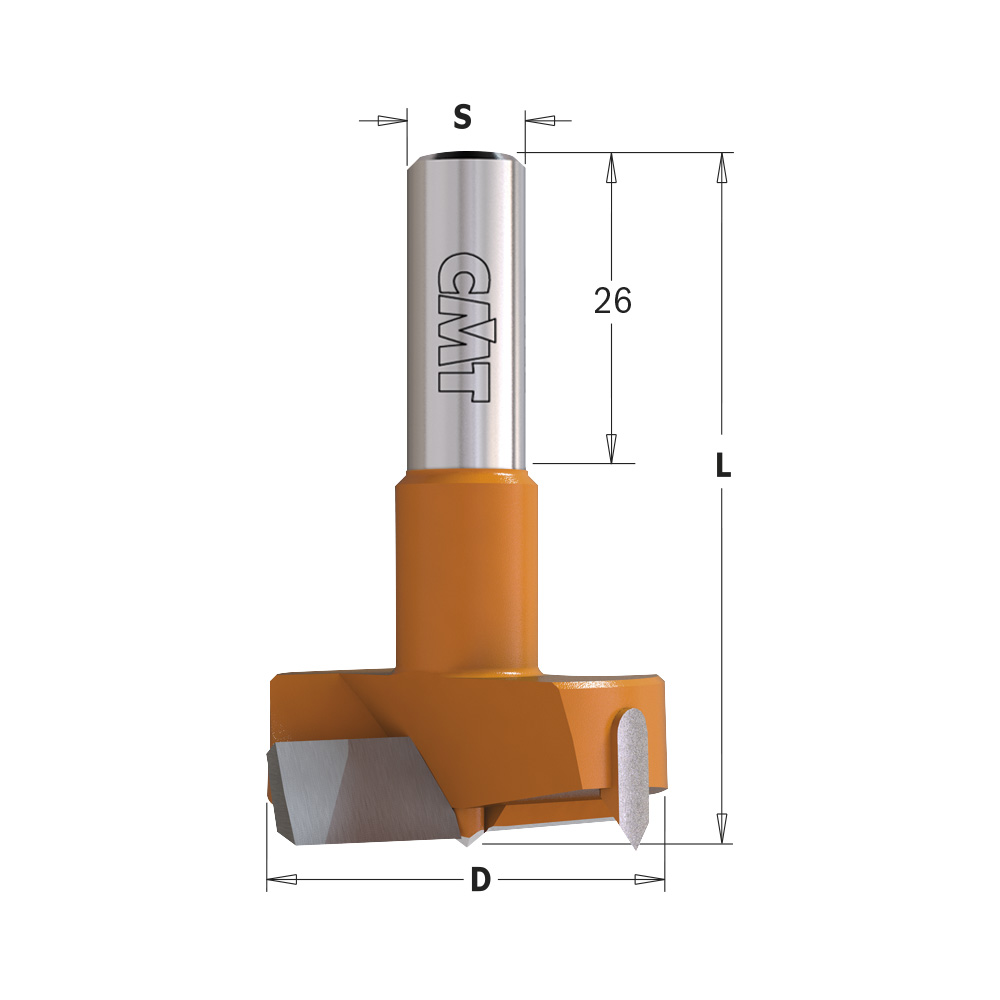

| Item Code | D | L | S | RH-LH |
|
|
|---|---|---|---|---|---|---|
|
317.140.11
|
14 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.140.12
|
14 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.150.11
|
15 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.150.12
|
15 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.160.11
|
16 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.160.12
|
16 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.170.11
|
17 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.170.12
|
17 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.180.11
|
18 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.180.12
|
18 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.190.11
|
19 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.190.12
|
19 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.200.11
|
20 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.200.12
|
20 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.220.11
|
22 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.220.12
|
22 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.240.11
|
24 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.240.12
|
24 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.250.11
|
25 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.250.12
|
25 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.260.11
|
26 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.260.12
|
26 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.280.11
|
28 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.280.12
|
28 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.300.11
|
30 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.300.12
|
30 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.320.11
|
32 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.320.12
|
32 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.340.11
|
34 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.340.12
|
34 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.350.11
|
35 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.350.12
|
35 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.380.11
|
38 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.380.12
|
38 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.400.11
|
40 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.400.12
|
40 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.420.11
|
42 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.420.12
|
42 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.450.11
|
45 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.450.12
|
45 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.500.11
|
50 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.500.12
|
50 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.550.11
|
55 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.550.12
|
55 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
317.600.11
|
60 | 57,5 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
317.600.12
|
60 | 57,5 | 10x26 | LH | 990.003.00 | 990.088.00 |
