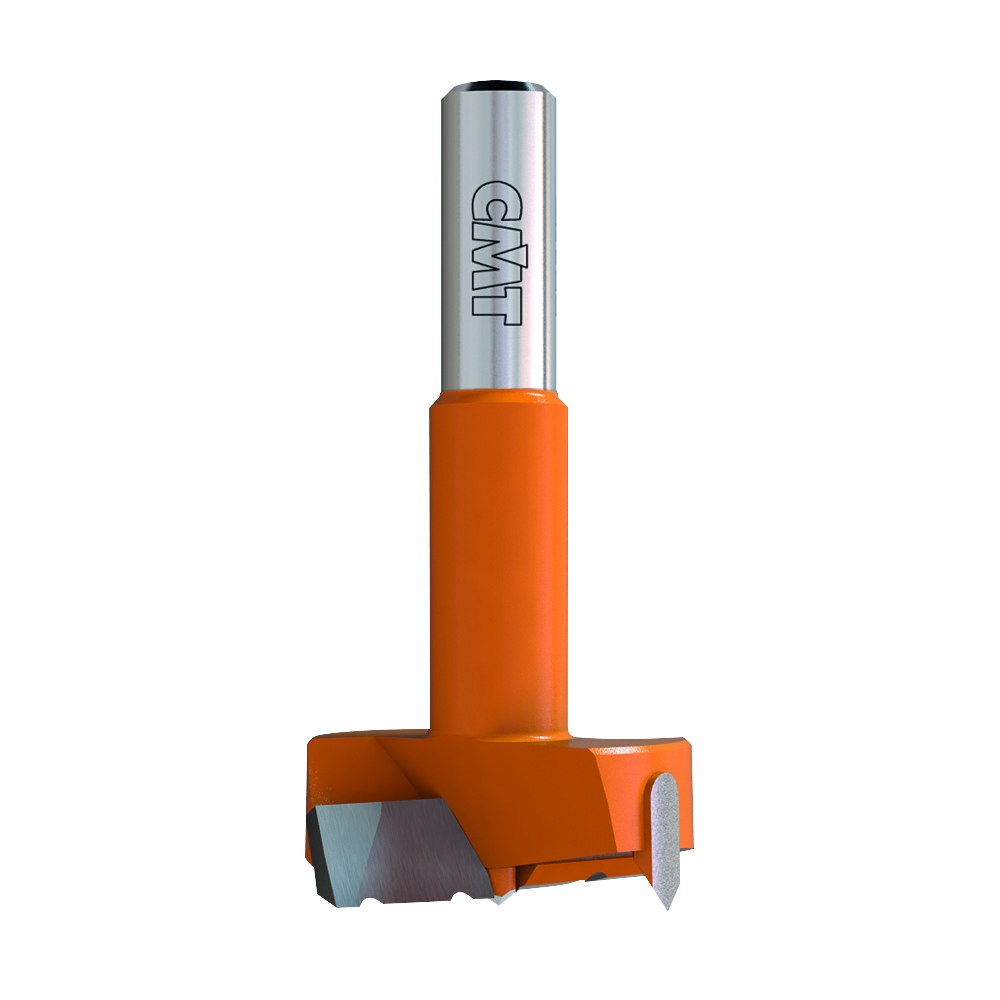

Hinge Boring Bits with Chipbreaker, S=10mm - L=70mm
369C
TECHNICAL DETAILS:
• Super-strength steel.
• Cutter portion coated with orange or black P.T.F.E.
• HW head with precision balanced centre point.
• 2 HW precision ground cutting edges with chipbreaker (Z2R).
• 2 negatively ground spurs (V2).
• Parallel shank with driving flat and length adjusting screw.
Details
Ideal for hinges.
Used on boring machines equipped with adaptors or chucks.
For drilling accurate and clean-cut blind holes in solid wood.
Used on boring machines equipped with adaptors or chucks.
For drilling accurate and clean-cut blind holes in solid wood.

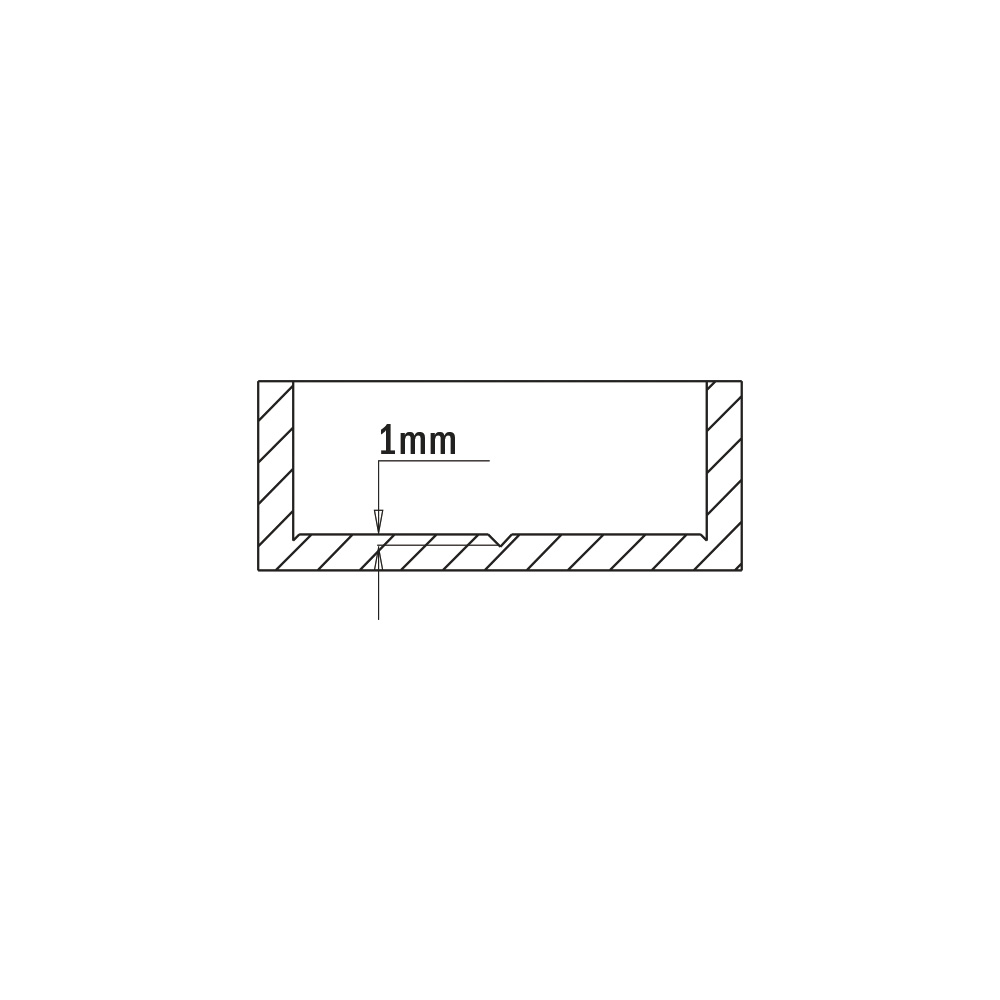

New construction with 1mm centre point.
Variations
Filter

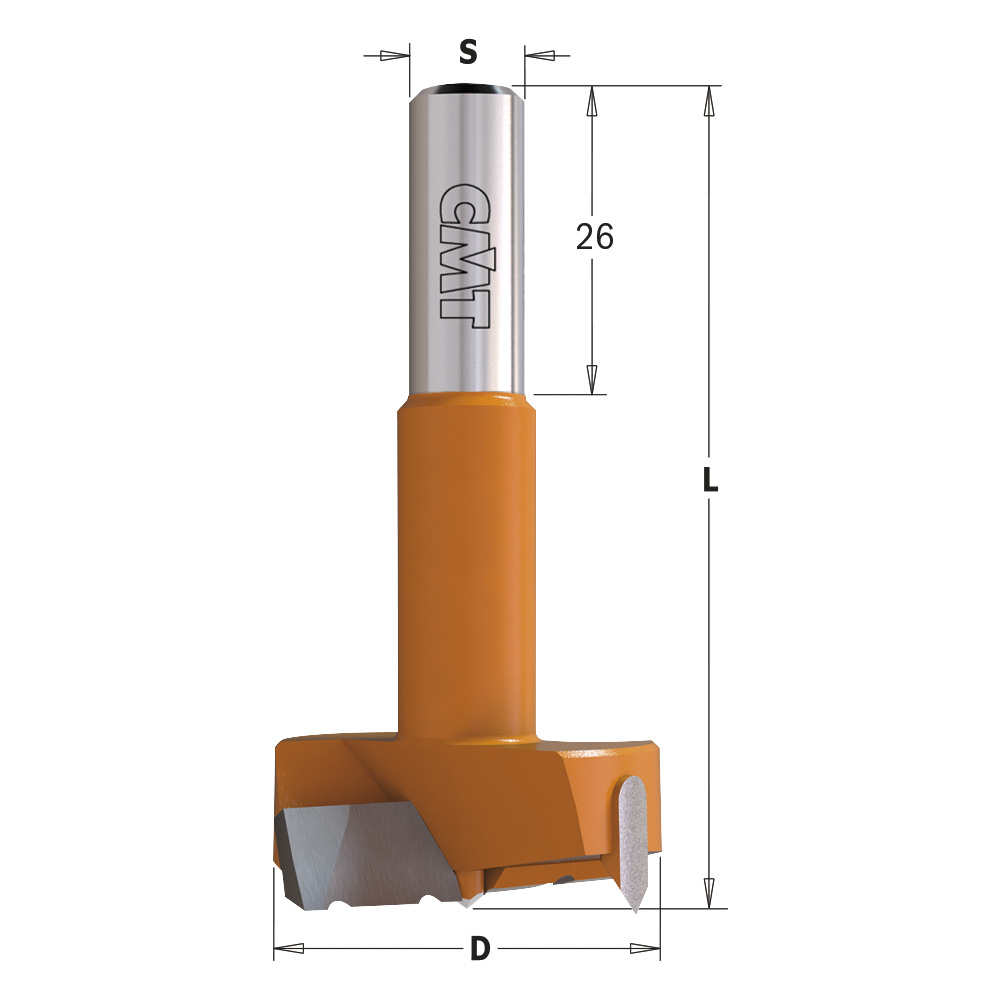

| Item Code | D | L | S | RH-LH |
|
|
|---|---|---|---|---|---|---|
|
369.350.11C
|
35 | 70 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
369.350.12C
|
35 | 70 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
369.400.11C
|
40 | 70 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
369.400.12C
|
40 | 70 | 10x26 | LH | 990.003.00 | 990.088.00 |
|
369.450.11C
|
45 | 70 | 10x26 | RH | 990.003.00 | 990.088.00 |
|
369.450.12C
|
45 | 70 | 10x26 | LH | 990.003.00 | 990.088.00 |
