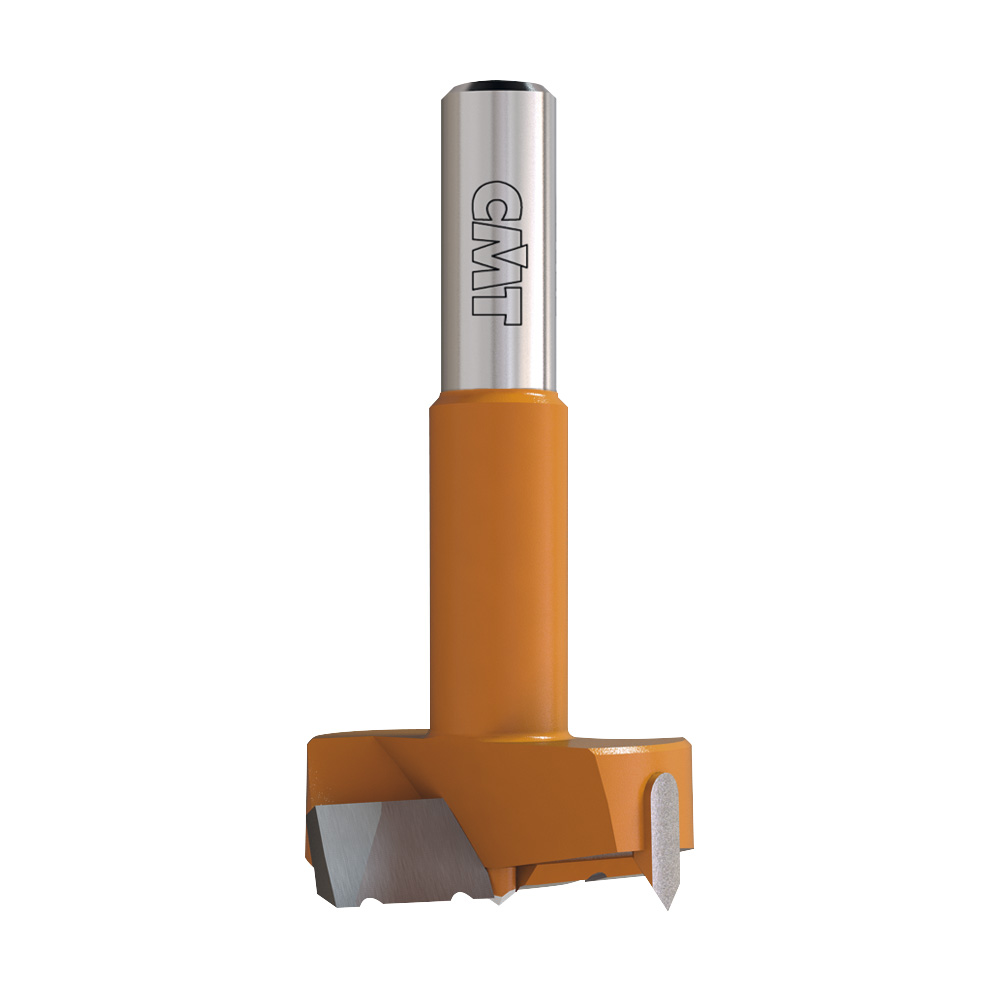

Hinge Boring Bits with Chipbreaker, S=10mm - L=57,5mm
317C
TECHNICAL DETAILS:
• Super-strength steel.
• Cutter portion coated with orange or black P.T.F.E.
• HW head with precision balanced centre point.
• 2 HW precision ground cutting edges with chipbreaker (Z2R).
• 2 negatively ground spurs (V2).
• Parallel shank with driving flat and length adjusting screw.
Details
Ideal for hinges.
Used on boring machines equipped with adaptors or chucks.
For drilling accurate and clean-cut blind holes in solid wood.
Used on boring machines equipped with adaptors or chucks.
For drilling accurate and clean-cut blind holes in solid wood.

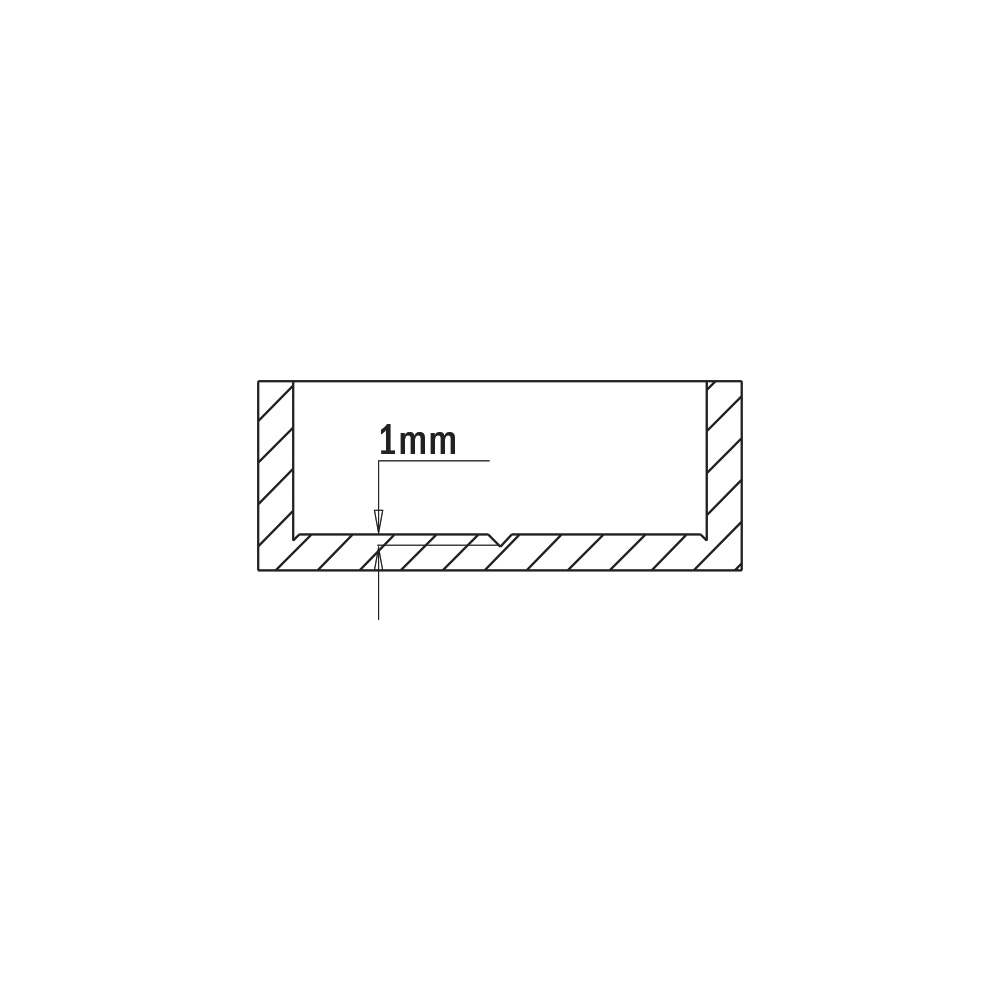

New construction with 1mm centre point.
Variations
Filter

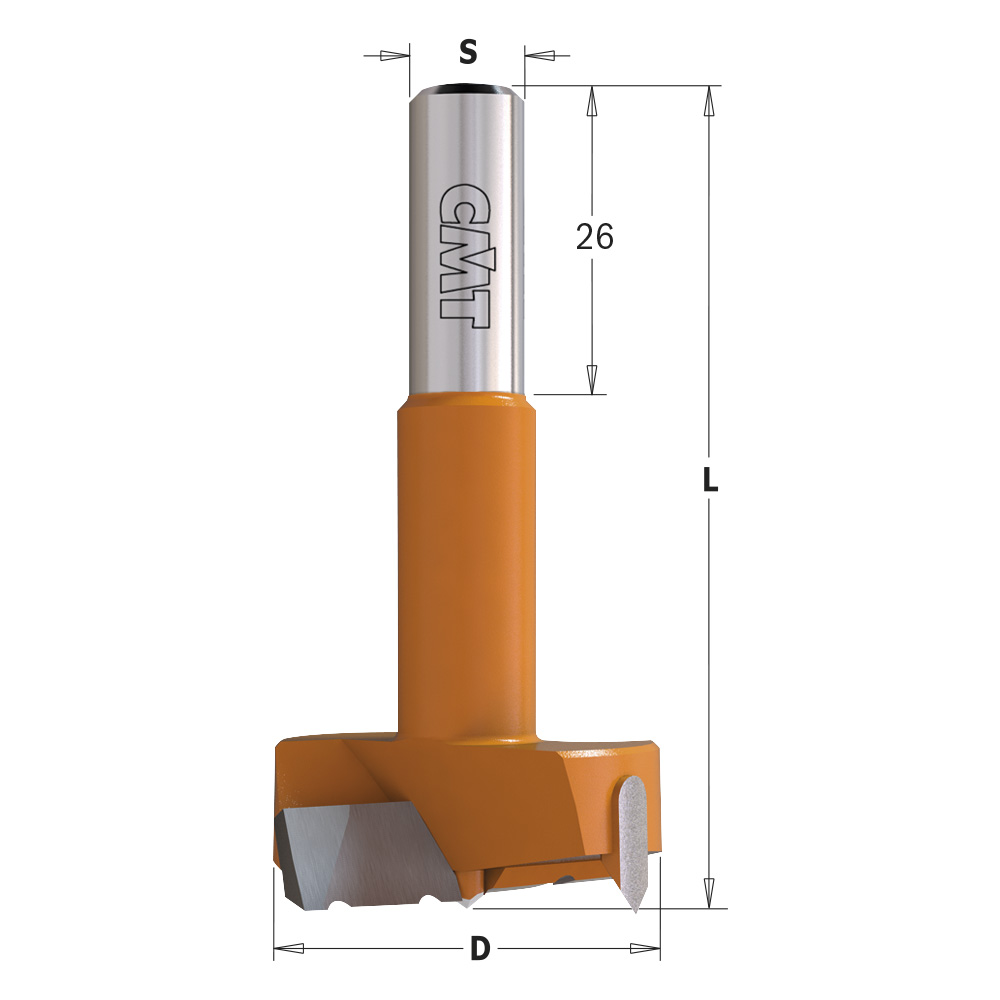

| Item Code | D | L | S | Z | MAT | RH-LH |
|
|
|---|---|---|---|---|---|---|---|---|
|
317.350.11C
|
35 | 57,5 | 10x26 | 2R | HW | RH | 990.003.00 | 990.088.00 |
|
317.350.12C
|
35 | 57,5 | 10x26 | 2R | HW | LH | 990.003.00 | 990.088.00 |
|
317.400.11C
|
40 | 57,5 | 10x26 | 2R | HW | RH | 990.003.00 | 990.088.00 |
|
317.400.12C
|
40 | 57,5 | 10x26 | 2R | HW | LH | 990.003.00 | 990.088.00 |
|
317.450.11C
|
45 | 57,5 | 10x26 | 2R | HW | RH | 990.003.00 | 990.088.00 |
|
317.450.12C
|
45 | 57,5 | 10x26 | 2R | HW | LH | 990.003.00 | 990.088.00 |
