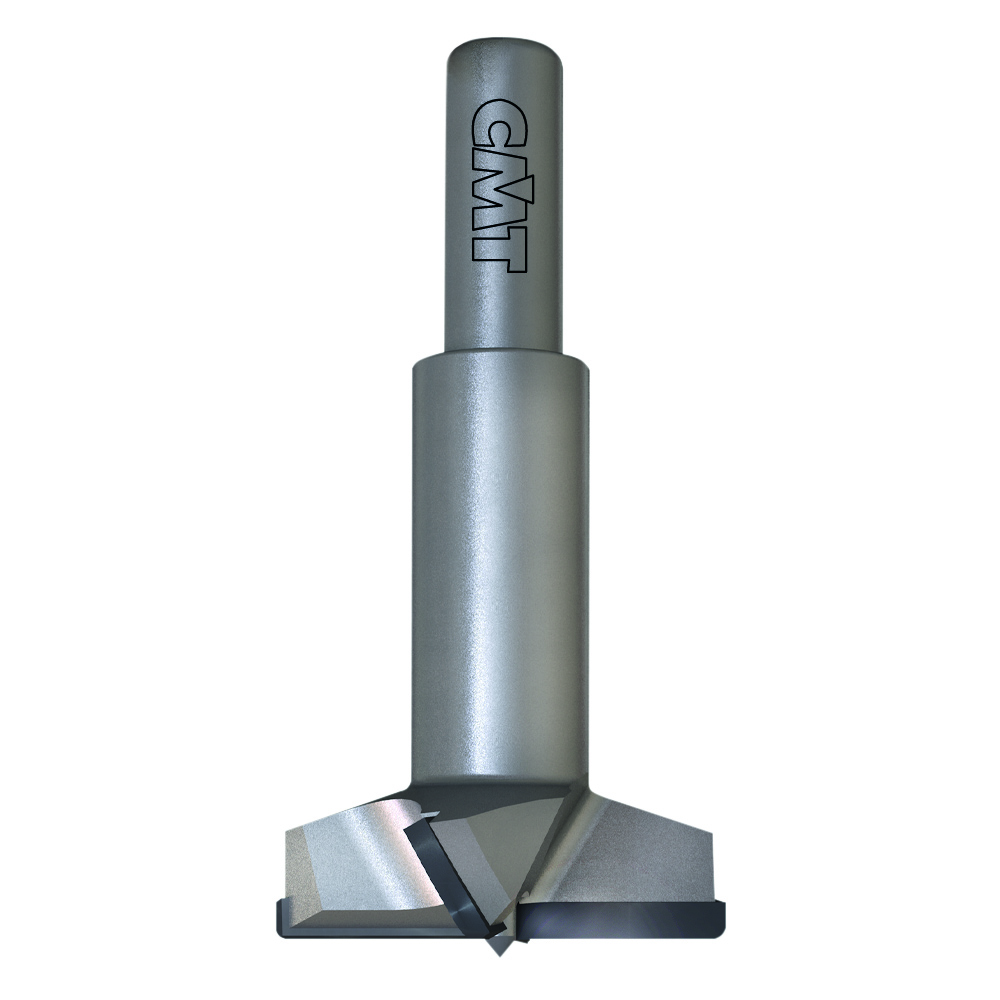

DP - Hinge Boring Bits - LONG LIFE, S=10mm - L=70mm
369 DP
TECHNICAL DETAILS:
• Super-strength steel.
• DP head with precision balanced centre point.
• 2 DP precision ground cutting edges with chipbreaker [Z2R].
• 2 DP negatively ground spurs [V2].
• Parallel shank with driving flat and length adjusting screw.
REMARK: special diameter available on request.
Details
Ideal for hinges.
Use on boring machines equipped with adaptors or chucks.
Use for drilling accurate and clean-cut blind holes in wood composites, plastic and laminated materials.
Boring performance 20 times longer than HW materials.
Use on boring machines equipped with adaptors or chucks.
Use for drilling accurate and clean-cut blind holes in wood composites, plastic and laminated materials.
Boring performance 20 times longer than HW materials.

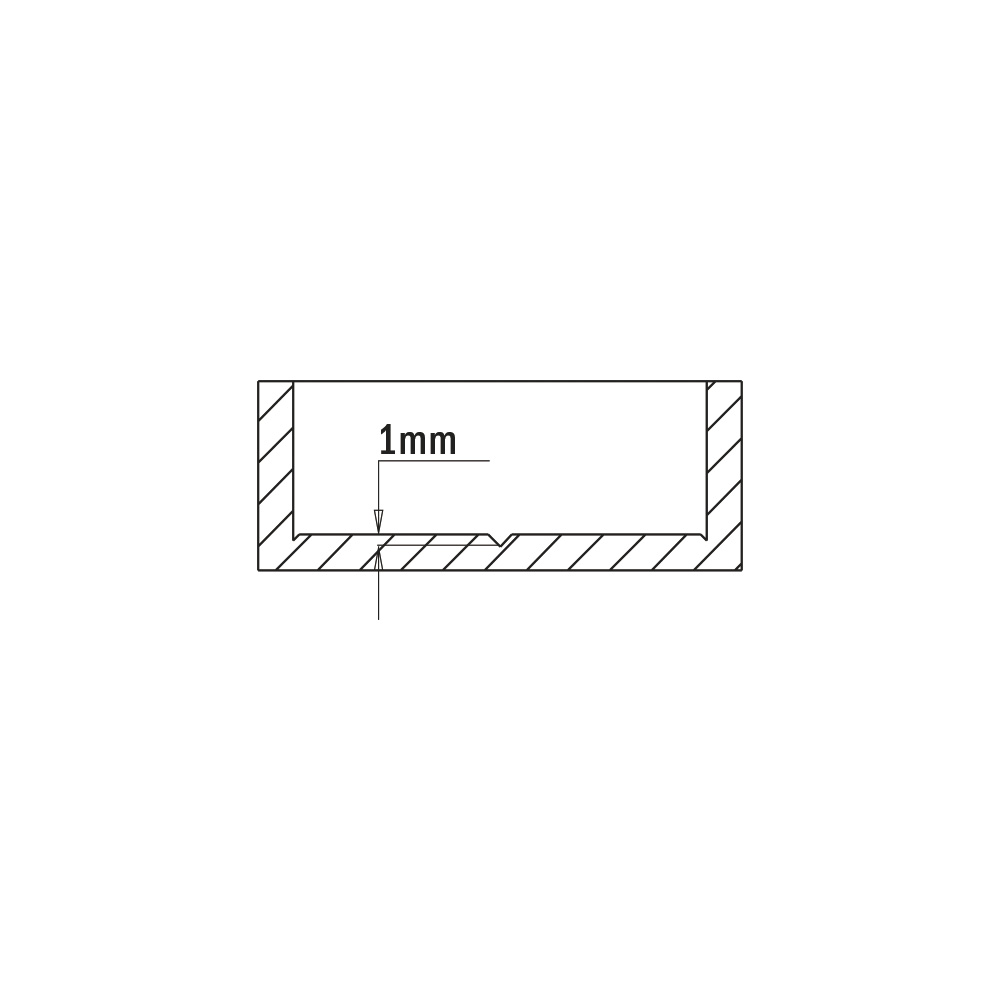

New construction with 1mm centre point.
Variations
Filter

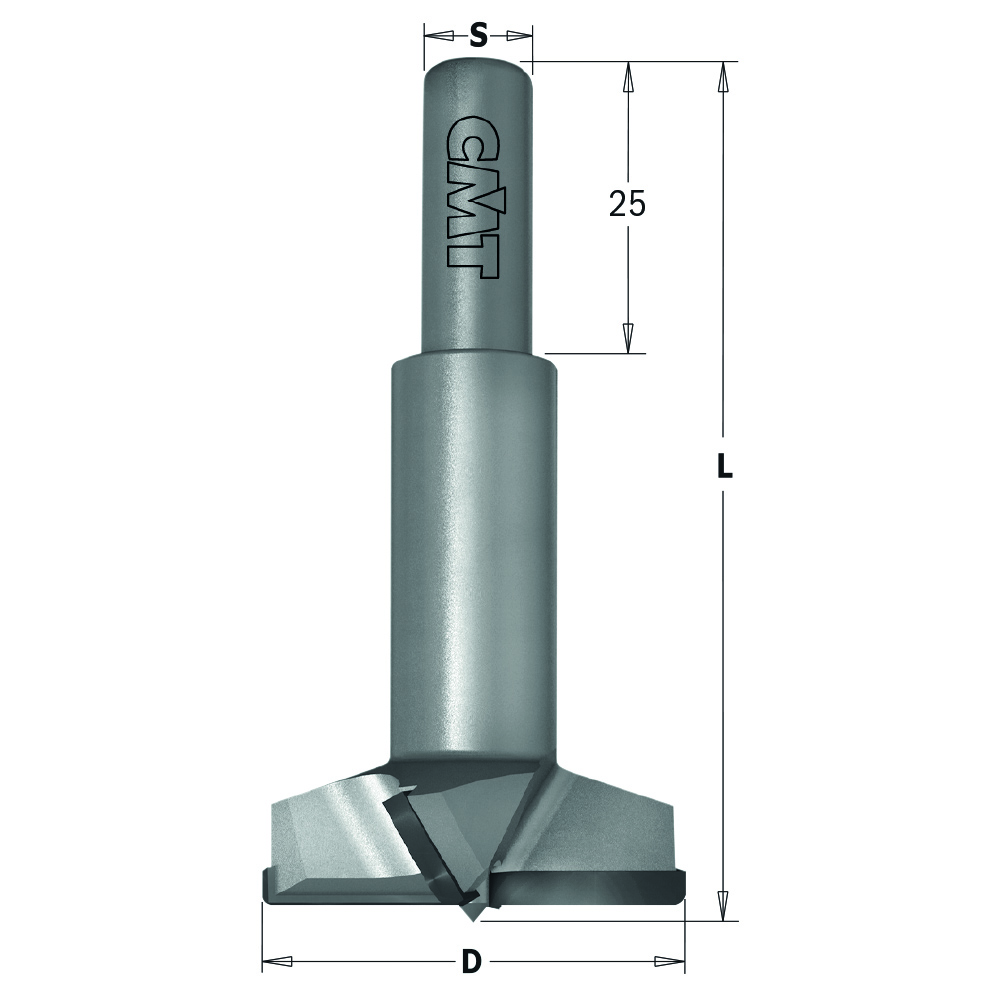

| Item Code | D | L | S | RH-LH |
|
|
|---|---|---|---|---|---|---|
|
369.150.61
|
15 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.150.62
|
15 | 70 | 10x25 | LH | 990.003.00 | 990.088.00 |
|
369.160.61
|
16 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.160.62
|
16 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.200.61
|
20 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.200.62
|
20 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.250.61
|
25 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.250.62
|
25 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.260.61
|
26 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.260.62
|
26 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.350.61
|
35 | 70 | 10x25 | RH | 990.003.00 | 990.088.00 |
|
369.350.62
|
35 | 70 | 10x25 | LH | 990.003.00 | 990.088.00 |
