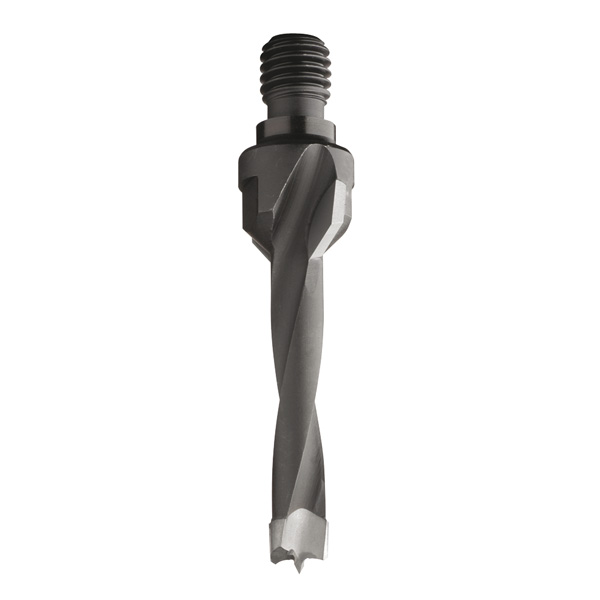

Dowel Drills with Threaded Shank with Countersink, M10/11x4
325-327-329-330 HW
TECHNICAL DETAILS:
- Premium quality strength steel body.
- High quality HW tip.
- 2 cutting edges [Z2] + 2 negatively ground spurs [V2].
- 2 spiral flutes.
- Balanced centre point.
- 2 countersink cutting edges at 45°.
- Orange or black P.T.F.E. coating.
Details
Used on boring machines equipped with chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.
Variations
Filter

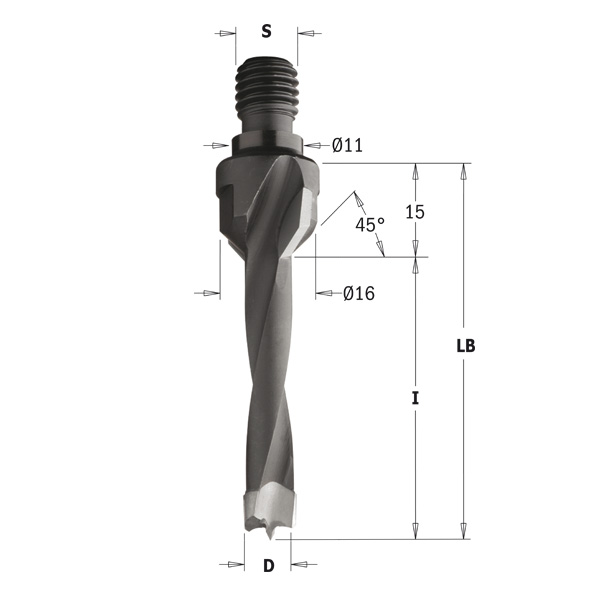

| Item Code | D | I | LB | S | RH-LH |
|---|---|---|---|---|---|
|
325.050.11
|
5 | 20 | 35 | M10/11x4 | RH |
|
325.050.12
|
5 | 20 | 35 | M10/11x4 | LH |
|
327.050.11
|
5 | 30 | 45 | M10/11x4 | RH |
|
327.050.12
|
5 | 30 | 45 | M10/11x4 | LH |
|
329.050.11
|
5 | 40 | 55 | M10/11x4 | RH |
|
329.050.12
|
5 | 40 | 55 | M10/11x4 | LH |
|
330.050.11
|
5 | 50 | 65 | M10/11x4 | RH |
|
330.050.12
|
5 | 50 | 65 | M10/11x4 | LH |
|
330.060.11
|
6 | 50 | 65 | M10/11x4 | RH |
|
330.060.12
|
6 | 50 | 65 | M10/11x4 | LH |
|
329.060.11
|
6 | 40 | 55 | M10/11x4 | RH |
|
329.060.12
|
6 | 40 | 55 | M10/11x4 | LH |
|
327.060.11
|
6 | 30 | 45 | M10/11x4 | RH |
|
327.060.12
|
6 | 30 | 45 | M10/11x4 | LH |
|
325.060.11
|
6 | 20 | 35 | M10/11x4 | RH |
|
325.060.12
|
6 | 20 | 35 | M10/11x4 | LH |
|
325.080.11
|
8 | 20 | 35 | M10/11x4 | RH |
|
325.080.12
|
8 | 20 | 35 | M10/11x4 | LH |
|
327.080.11
|
8 | 30 | 45 | M10/11x4 | RH |
|
327.080.12
|
8 | 30 | 45 | M10/11x4 | LH |
|
329.080.11
|
8 | 40 | 55 | M10/11x4 | RH |
|
329.080.12
|
8 | 40 | 55 | M10/11x4 | LH |
|
330.080.11
|
8 | 50 | 65 | M10/11x4 | RH |
|
330.080.12
|
8 | 50 | 65 | M10/11x4 | LH |
|
330.100.11
|
10 | 50 | 65 | M10/11x4 | RH |
|
330.100.12
|
10 | 50 | 65 | M10/11x4 | LH |
|
329.100.11
|
10 | 40 | 55 | M10/11x4 | RH |
|
329.100.12
|
10 | 40 | 55 | M10/11x4 | LH |
|
327.100.11
|
10 | 30 | 45 | M10/11x4 | RH |
|
327.100.12
|
10 | 30 | 45 | M10/11x4 | LH |
|
325.100.11
|
10 | 20 | 35 | M10/11x4 | RH |
|
325.100.12
|
10 | 20 | 35 | M10/11x4 | LH |
|
325.120.11
|
12 | 20 | 35 | M10/11x4 | RH |
|
325.120.12
|
12 | 20 | 35 | M10/11x4 | LH |
|
327.120.11
|
12 | 30 | 45 | M10/11x4 | RH |
|
327.120.12
|
12 | 30 | 45 | M10/11x4 | LH |
|
329.120.11
|
12 | 40 | 55 | M10/11x4 | RH |
|
329.120.12
|
12 | 40 | 55 | M10/11x4 | LH |
|
330.120.11
|
12 | 50 | 65 | M10/11x4 | RH |
|
330.120.12
|
12 | 50 | 65 | M10/11x4 | LH |
