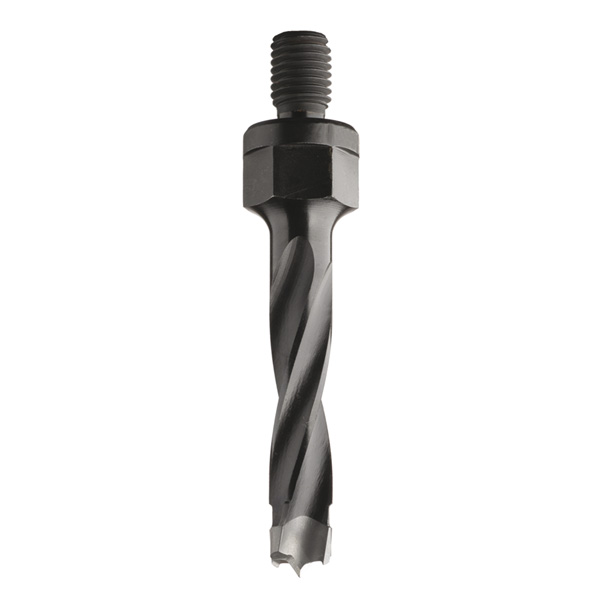

Dowel Drills with Threaded Shank, S=M8 - LB=63mm
344 HW
TECHNICAL DETAILS:
- Premium quality strength steel body.
- High quality HW tip.
- 2 cutting edges [Z2] + 2 negatively ground spurs [V2].
- 4 spiral flutes.
- Balanced centre point.
- Orange or black P.T.F.E. coating.
FOR USE ON THE FOLLOWING MACHINES: NOTTMEYER® (older models).
Details
Used on boring machines equipped with chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.
Variations
Filter

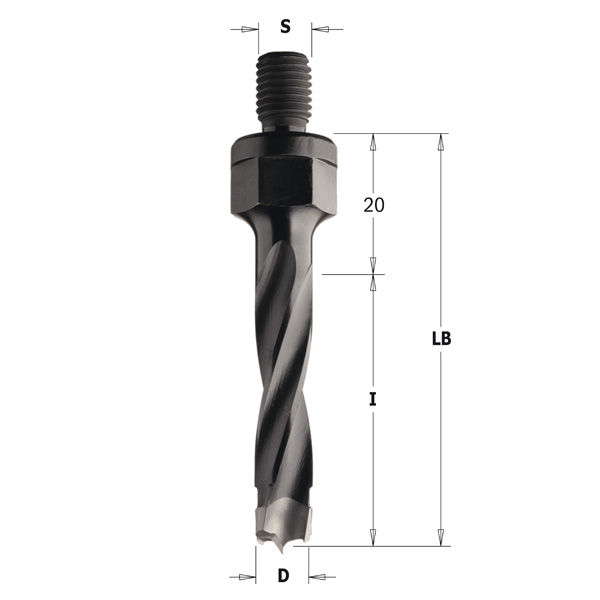

| Item Code | D | I | LB | S | RH-LH |
|---|---|---|---|---|---|
|
344.050.11
|
5 | 43 | 63 | M8 | RH |
|
344.050.12
|
5 | 43 | 63 | M8 | LH |
|
344.060.11
|
6 | 43 | 63 | M8 | RH |
|
344.060.12
|
6 | 43 | 63 | M8 | LH |
|
344.080.11
|
8 | 43 | 63 | M8 | RH |
|
344.080.12
|
8 | 43 | 63 | M8 | LH |
|
344.100.11
|
10 | 43 | 63 | M8 | RH |
|
344.100.12
|
10 | 43 | 63 | M8 | LH |
|
344.120.11
|
12 | 43 | 63 | M8 | RH |
|
344.120.12
|
12 | 43 | 63 | M8 | LH |
