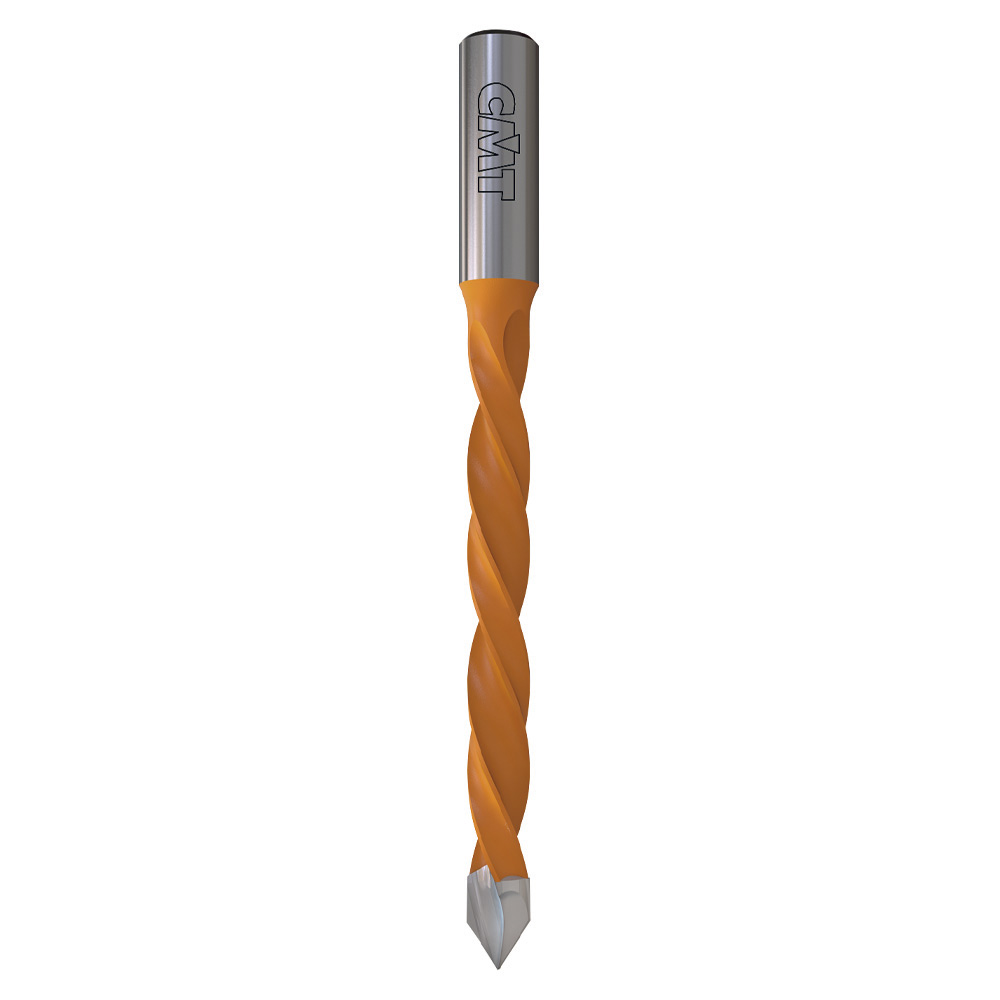

4 Flute Dowel Drills for Through Holes, S=10mm - L=115mm
381 HW
For panels with maximum 60-65mm in thickness.
TECHNICAL DETAILS:
• Super-strength steel.
• Spiral portion coated with orange or black P.T.F.E.

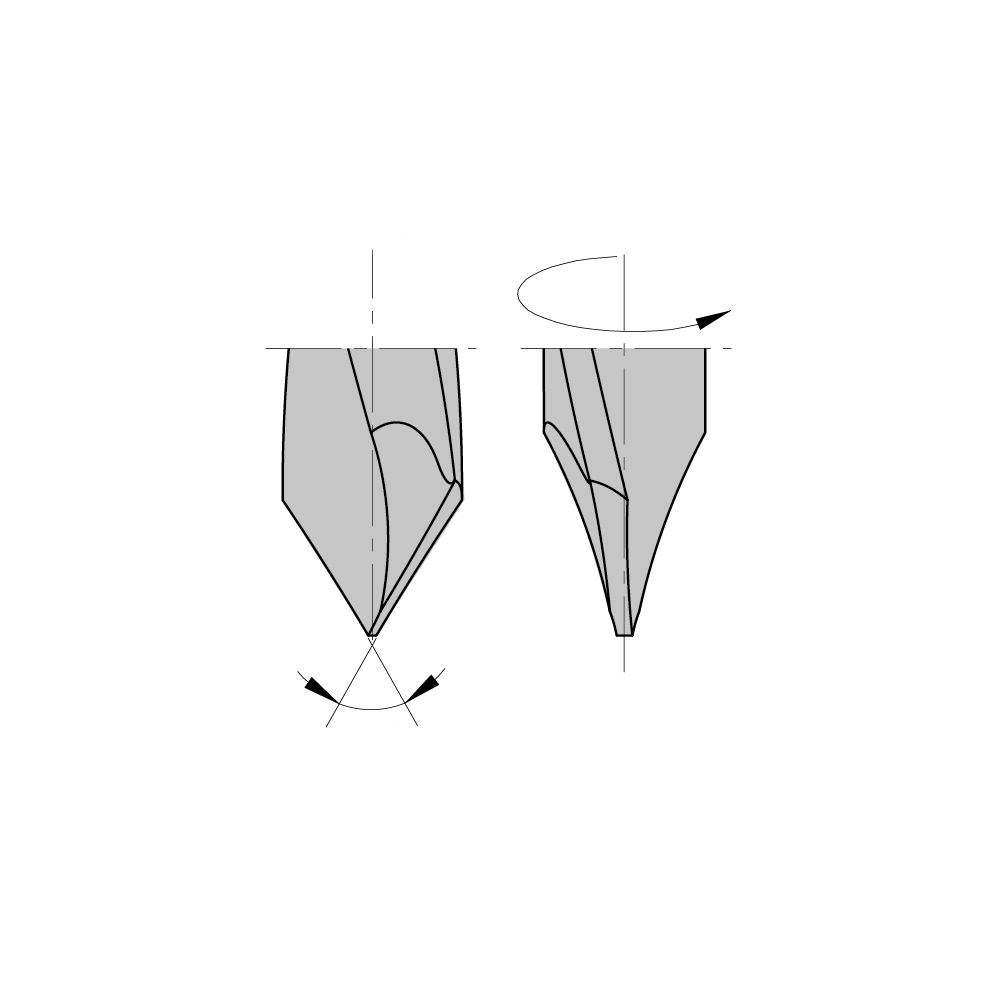

• HW head with precision balanced centre point.
• 2 precision ground cutting edges (Z2).
• 4 spiral flutes.
• Parallel shank with driving flat and length adjusting screw.
Details
Used on boring machines and dowel drilling devices.
Use for drilling through holes in solid wood, wood composites, plastic and laminated materials.
Use for drilling through holes in solid wood, wood composites, plastic and laminated materials.
Variations
Filter

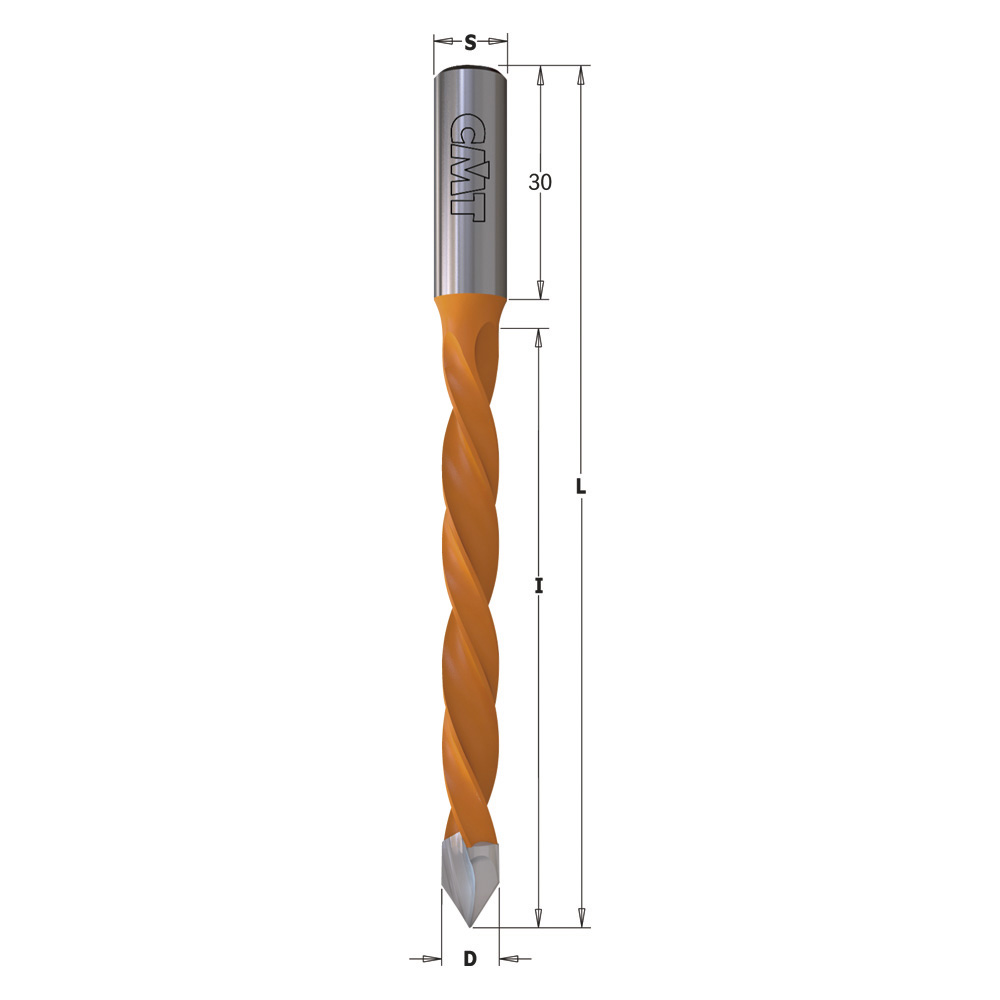

| Item Code | D | I | L | S | RH-LH |
|
|
|---|---|---|---|---|---|---|---|
|
381.050.11
|
5 | 70 | 115 | 10x30 | RH | 990.003.00 | 990.088.00 |
|
381.050.12
|
5 | 70 | 115 | 10x30 | LH | 990.003.00 | 990.088.00 |
|
381.060.11
|
6 | 70 | 115 | 10x30 | RH | 990.003.00 | 990.088.00 |
|
381.060.12
|
6 | 70 | 115 | 10x30 | LH | 990.003.00 | 990.088.00 |
|
381.080.11
|
8 | 70 | 115 | 10x30 | RH | 990.003.00 | 990.088.00 |
|
381.080.12
|
8 | 70 | 115 | 10x30 | LH | 990.003.00 | 990.088.00 |
|
381.100.11
|
10 | 70 | 115 | 10x30 | RH | 990.003.00 | 990.088.00 |
|
381.100.12
|
10 | 70 | 115 | 10x30 | LH | 990.003.00 | 990.088.00 |
