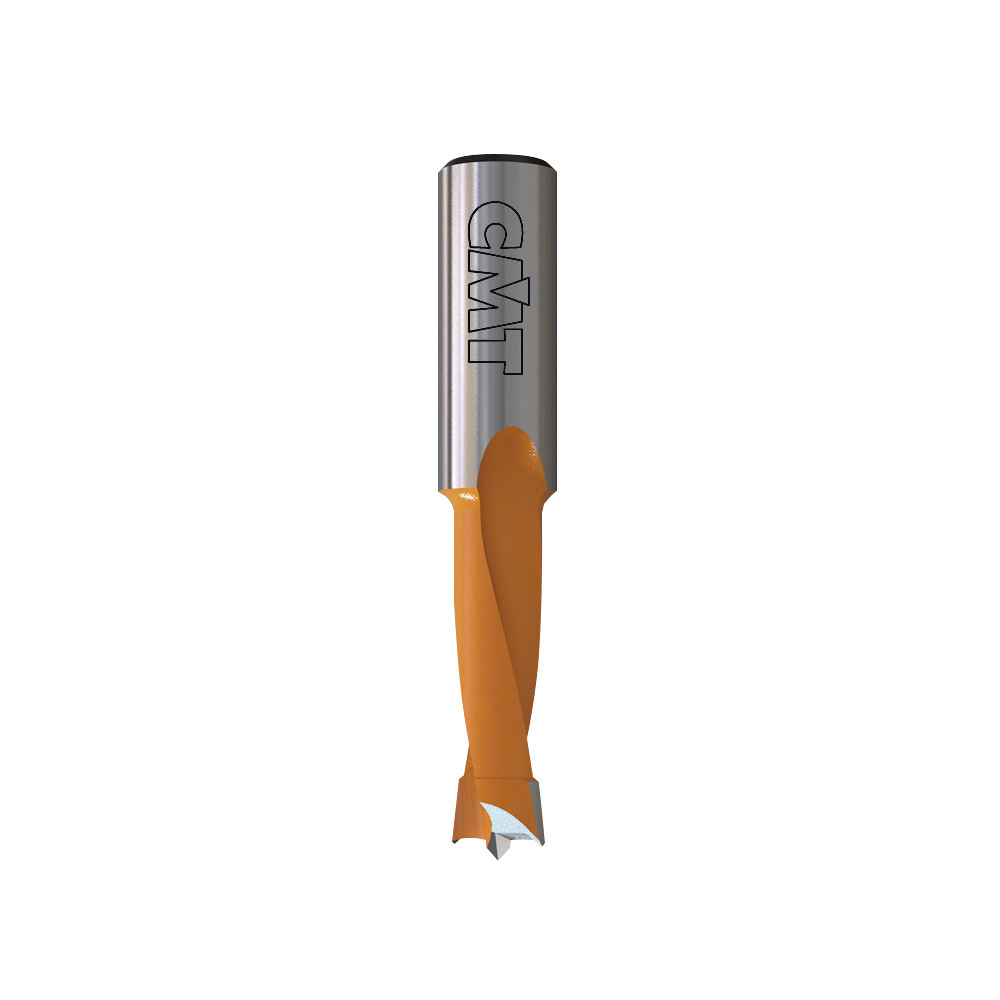

2 Flute Dowel Drills, S=10mm - L=57,5mm
310 HW
TECHNICAL DETAILS:
- Premium quality super-strength steel.
- Super-strength steel.
- Spiral portion coated with orange or black P.T.F.E.

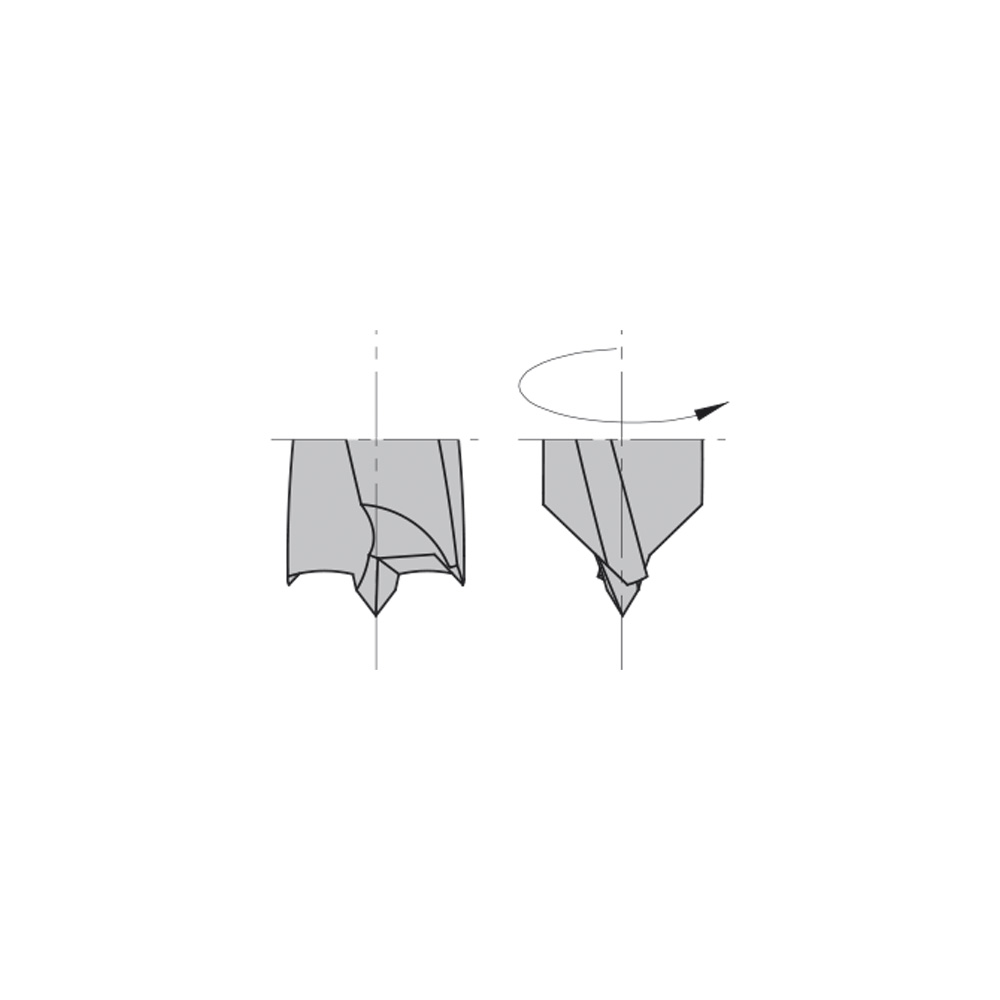

- HW head with precision balanced centre point.
- 2 HW precision ground cutting edges [Z2].
- 2 negatively ground spurs [V2]
- 2 spiral flutes.
- Parallel shank with driving flat and length adjusting screw.
Details
Used on boring machines equipped with adaptors or chucks.
Used to drill blind holes in:
Used to drill blind holes in:
- solid wood
- wood composites
- plastic
- laminated materials
Variations
Filter

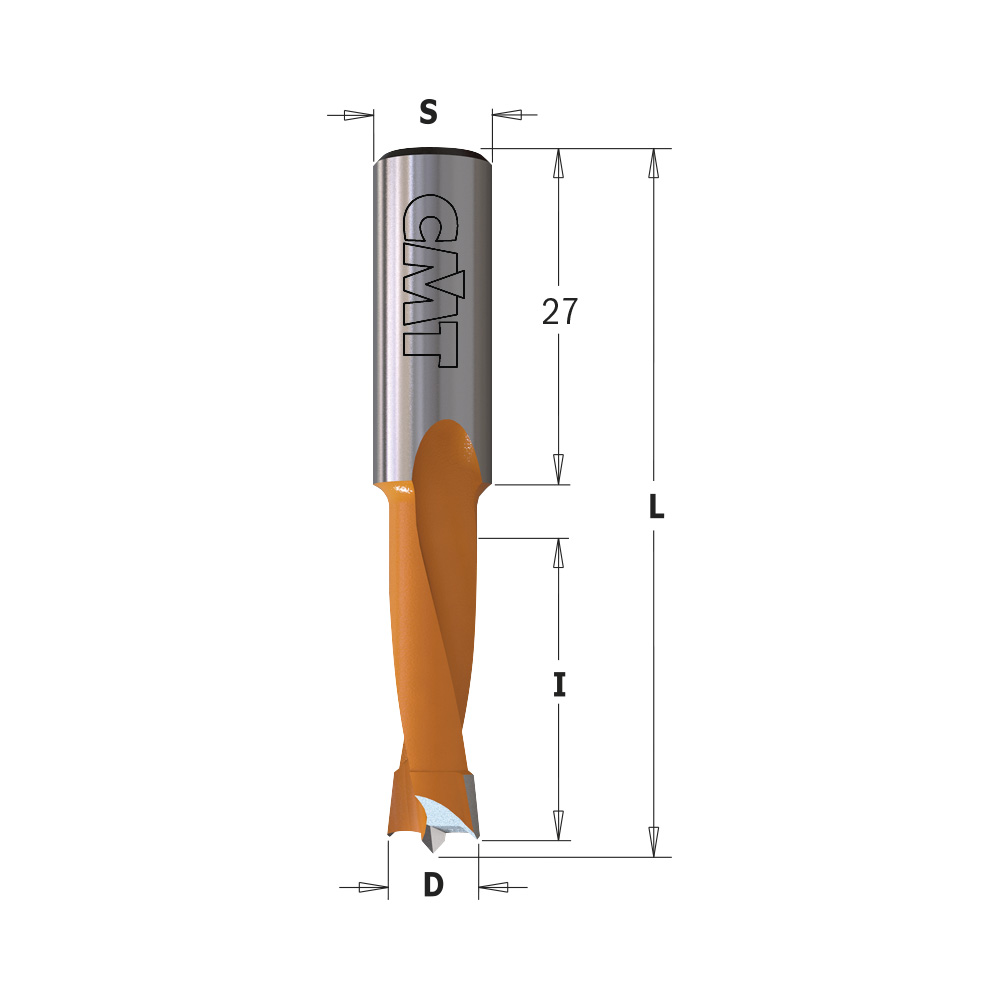

| Item Code | D | I | L | S | RH-LH |
|
|
|---|---|---|---|---|---|---|---|
|
310.040.11
|
4 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.040.12
|
4 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.045.11
|
4,5 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.045.12
|
4,5 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.047.11
|
4,76 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.047.12
|
4,76 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.050.11
|
5 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.050.12
|
5 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.051.11
|
5,1 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.051.12
|
5,1 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.052.11
|
5,2 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.052.12
|
5,2 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.055.11
|
5,55 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.055.12
|
5,55 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.060.11
|
6 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.060.12
|
6 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.064.11
|
6,35 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.064.12
|
6,35 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.065.11
|
6,5 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.065.12
|
6,5 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.070.11
|
7 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.070.12
|
7 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.080.11
|
8 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.080.12
|
8 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.082.11
|
8,2 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.082.12
|
8,2 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.090.11
|
9 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.090.12
|
9 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.095.12
|
9,5 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.095.11
|
9,52 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.100.11
|
10 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.100.12
|
10 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.110.11
|
11 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.110.12
|
11 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.120.11
|
12 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.120.12
|
12 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.127.11
|
12,7 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.127.12
|
12,7 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.130.11
|
13 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.130.12
|
13 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.140.11
|
14 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.140.12
|
14 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.150.11
|
15 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.150.12
|
15 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
|
310.160.11
|
16 | 27 | 57,5 | 10x27 | RH | 990.003.00 | 990.088.00 |
|
310.160.12
|
16 | 27 | 57,5 | 10x27 | LH | 990.003.00 | 990.088.00 |
