Planing and jointing spiral cutter heads
694.019
These new cutter heads have been designed for planing and jointing on soft or hard wood and wooden boards on spindle moulder machines.
Ideal for routing curved elements with the aid of a bearing guide (sold separately) and a template.
Ideal for routing curved elements with the aid of a bearing guide (sold separately) and a template.
Technical details
- Hard aluminium alloy body with high resistance to tensile and yield stress.
- 12 HWM Knives 14x14x2mm [Z2] with 4 spiral indexing.
-
Tools for manual feed (MAN).
Supplied in a plastic twistpack.
Details
790.140.00 and 790.140.20
are supplied in 10-piece pack or multiple.
Note:

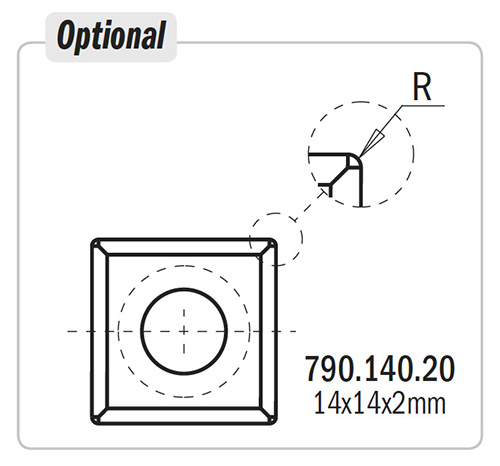

In order to achieve an extra-fine finish, you can order the optional knife 790.140.20.
In order to achieve an extra-fine finish, you can order the optional knife 790.140.20.
Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.
for the proper fastening of screws.
Variations
Filter
| Item Code | D | I | B | Z | MAX RPM | MAT |
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
694.019.30
|
62 | 80 | 30 | 12 | 8000~12000 | HW | 790.140.00 | 990.093.00 | 991.073.00 | 790.140.20 |
|
694.019.35
|
62 | 80 | 35 | 12 | 8000~12000 | HW | 790.140.00 | 990.093.00 | 991.073.00 | 790.140.20 |
|
694.019.40
|
80 | 80 | 40 | 12 | 8000~12000 | HW | 790.140.00 | 990.093.00 | 991.073.00 | 790.140.20 |
|
694.019.50
|
80 | 80 | 50 | 12 | 8000~12000 | HW | 790.140.00 | 990.093.00 | 991.073.00 | 790.140.20 |
