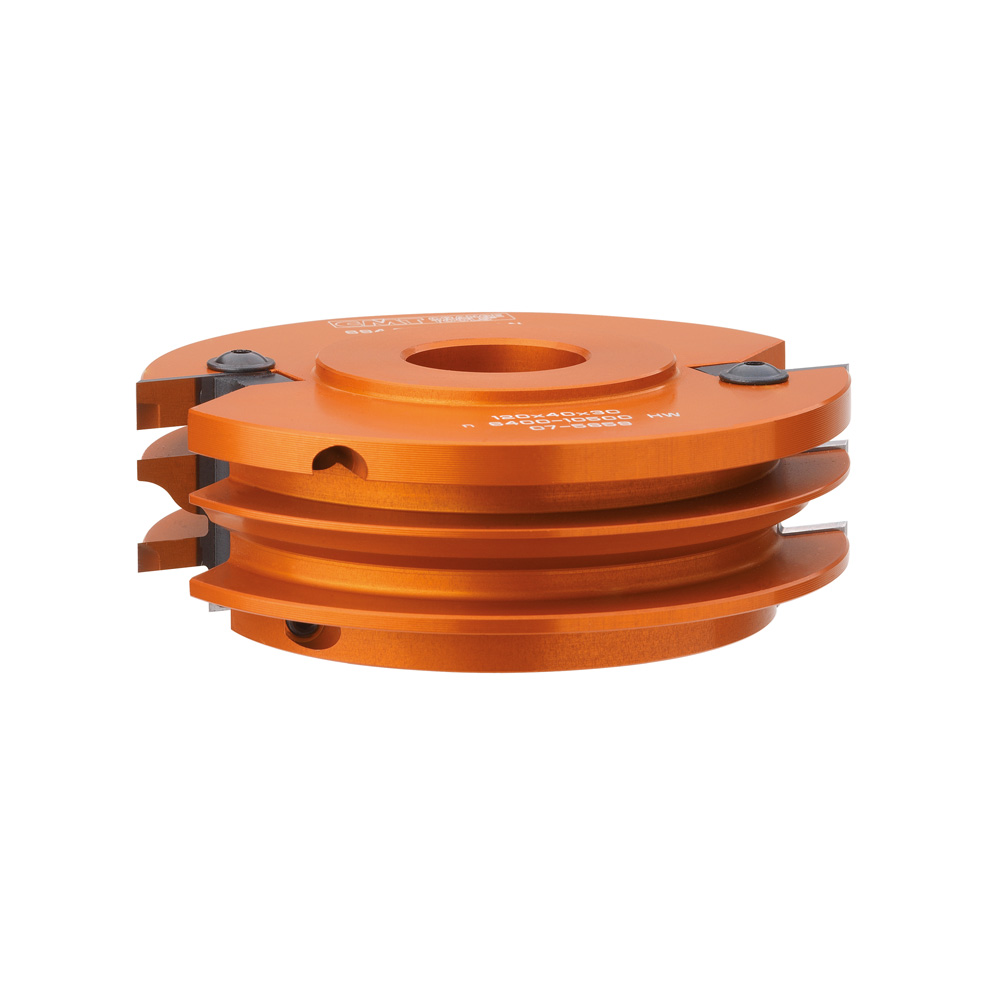

One piece rail & stile cutter heads
694.014
These are unique products made by combining two cutter heads, ideal for making furniture doors and drawers. By adjusting the height of the of the cutter head, you can cut two perfectly fitted profiles without wasting time or effort on the fence or replacing the tool. Improve your efficiency and save money only having to purchase one single cutter head!
For use on spindle moulers.

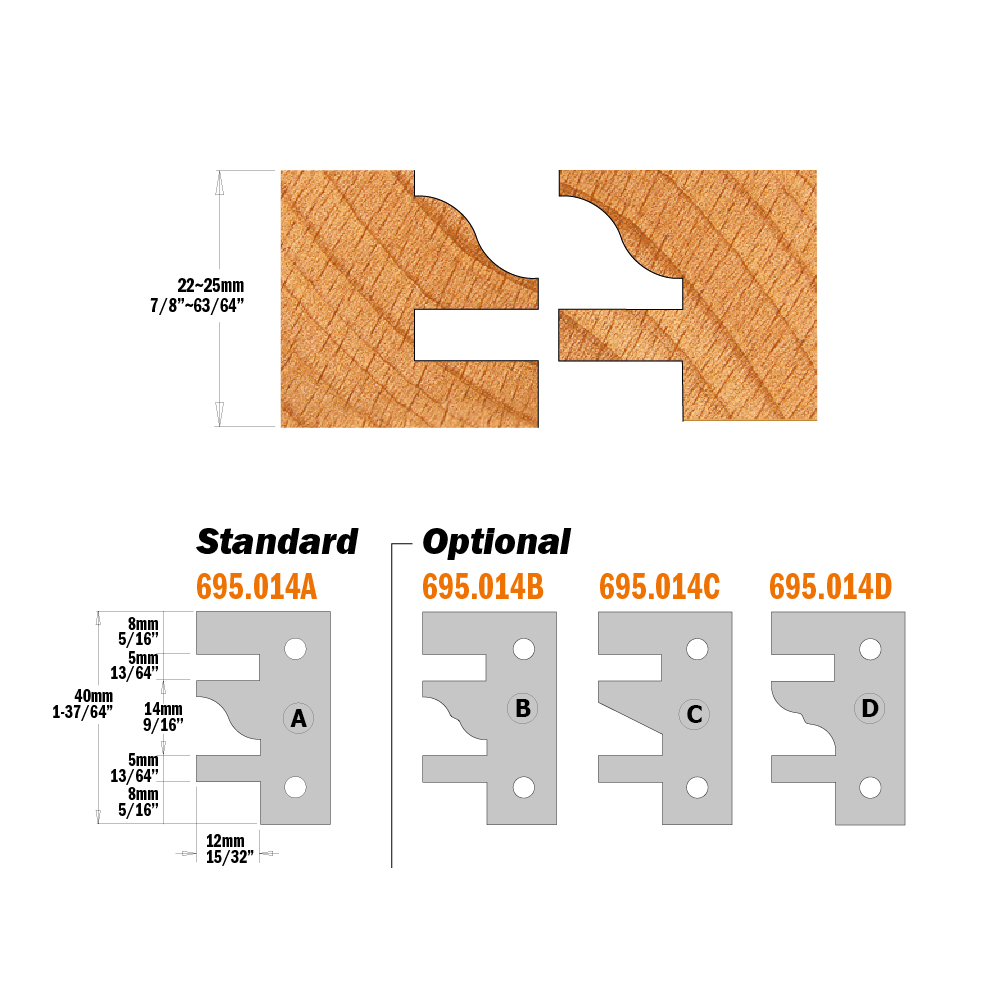

Perfect on hardwood and panels between 22mm-25mm in thickness.
For use on spindle moulers.
Perfect on hardwood and panels between 22mm-25mm in thickness.
Technical details:
-
Hard aluminium alloy body with high resistance to tensile and yield stress.
-
2 HWM Knives type (A) 40x24,5x2mm [Z2].
-
Tools for manual feed (MAN).
-
Pins for the automatic positioning of the knives.

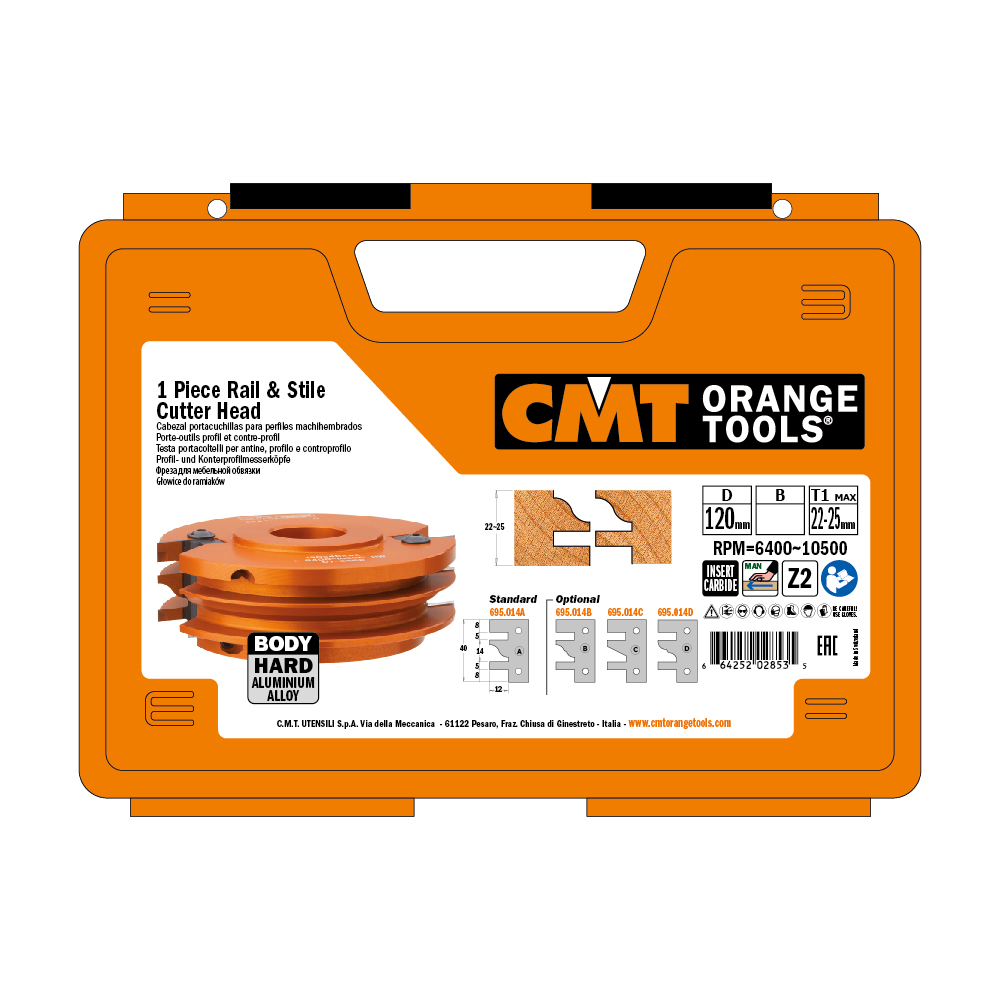

Supplied in a solid plastic box.
Details
Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.
for the proper fastening of screws.
Variations
Filter

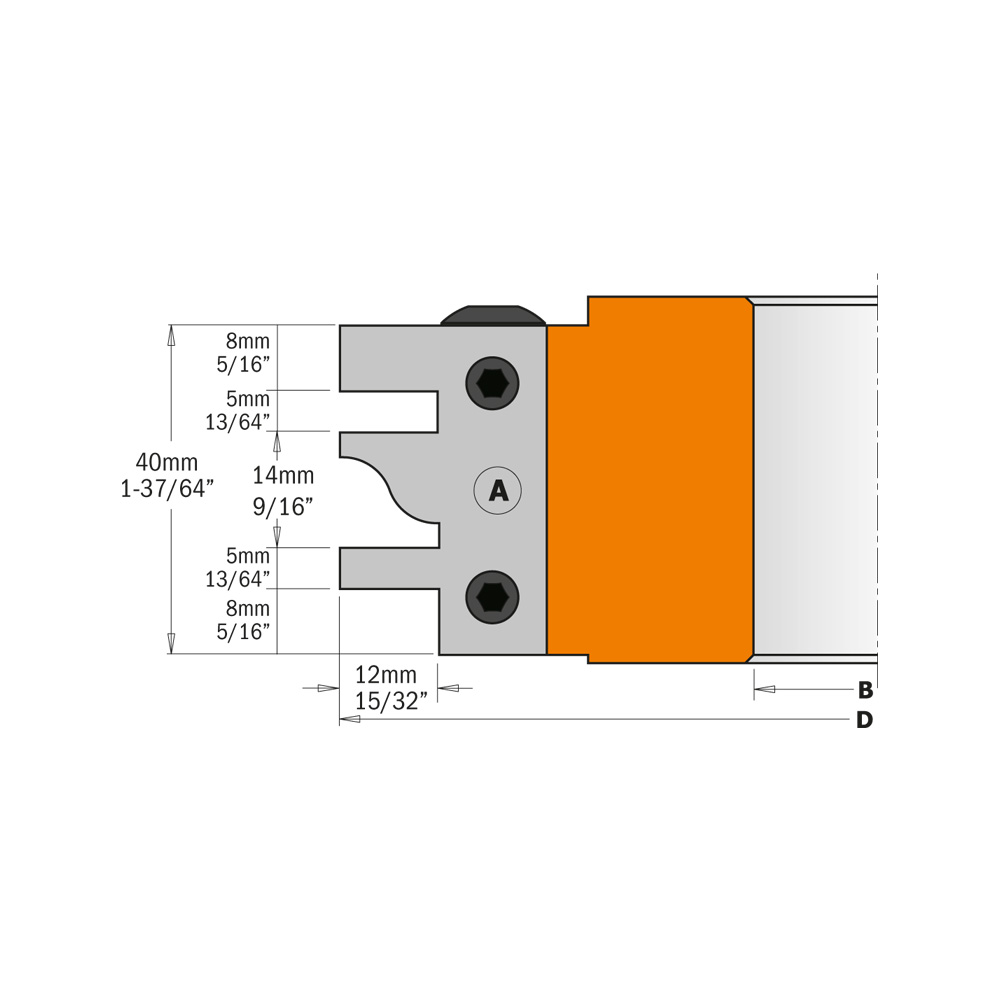

| Item Code | D | B | Z | MAX RPM |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
694.014.30
|

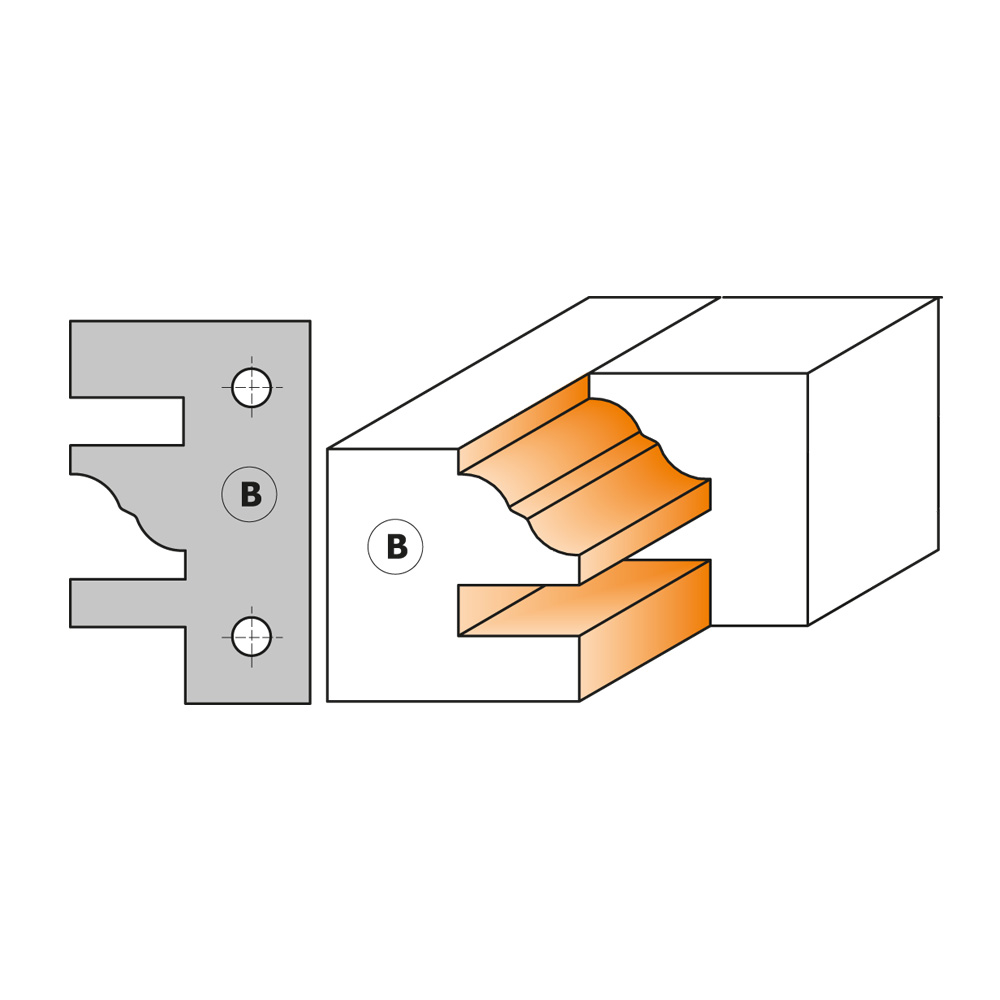

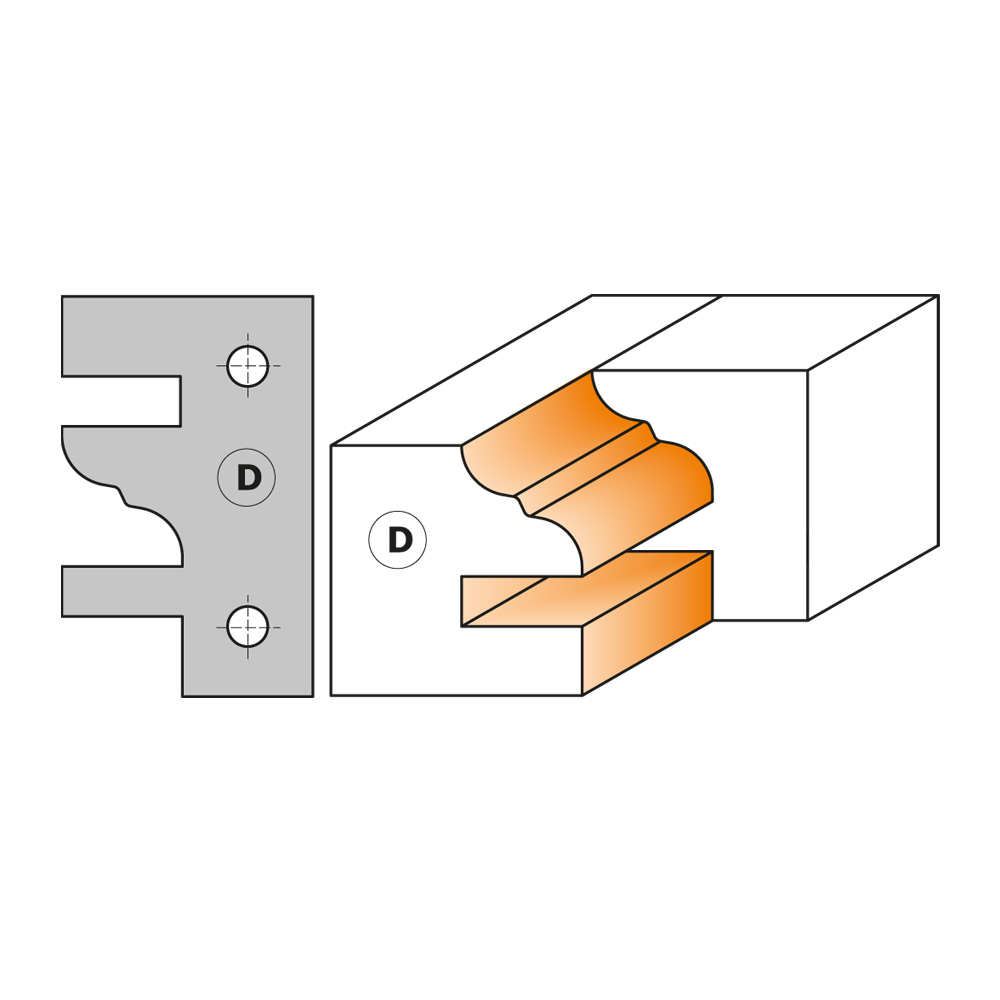

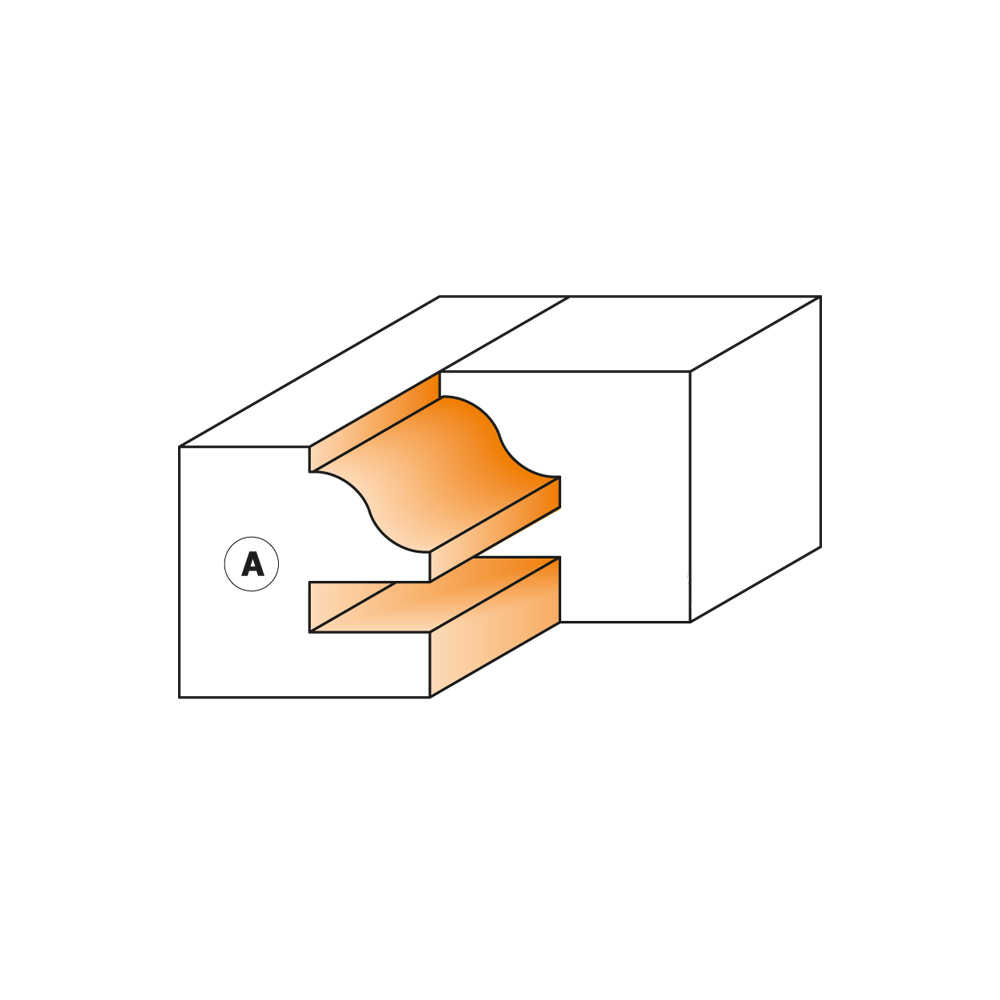

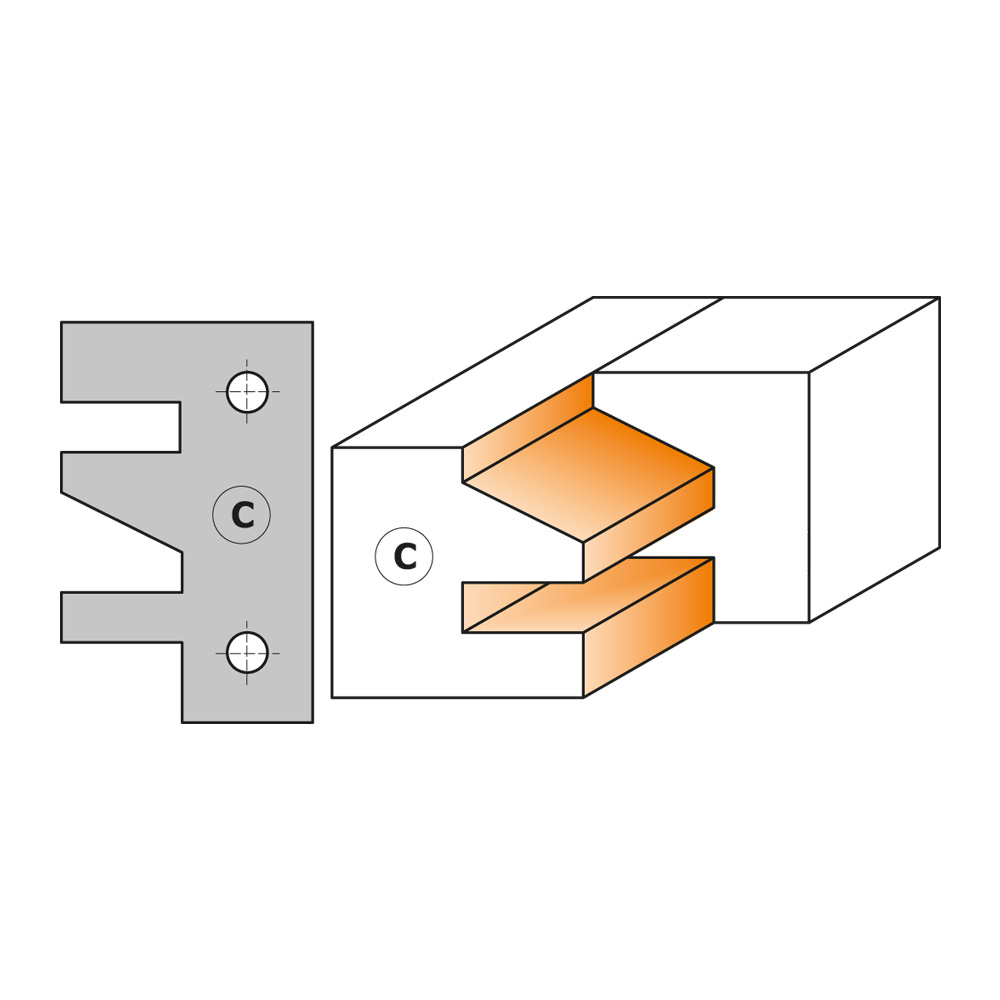

120 | 30 | 2 | 6400 ~ 10500 | 695.014A | 695.999.39 | 990.066.00 | 991.067.00 | 695.014B | 695.014C | 695.014D |
|
694.014.31
|
120 | 31,75 | 2 | 6400 ~ 10500 | 695.014A | 695.999.39 | 990.066.00 | 991.067.00 | 695.014B | 695.014C | 695.014D |
|
694.014.35
|
120 | 35 | 2 | 6400 ~ 10500 | 695.014A | 695.999.39 | 990.066.00 | 991.067.00 | 695.014B | 695.014C | 695.014D |
|
694.014.40
|
120 | 40 | 2 | 6400 ~ 10500 | 695.014A | 695.999.39 | 990.066.00 | 991.067.00 | 695.014B | 695.014C | 695.014D |
|
694.014.50
|
130 | 50 | 2 | 6400 ~ 10500 | 695.014A | 695.999.39 | 990.066.00 | 991.067.00 | 695.014B | 695.014C | 695.014D |
